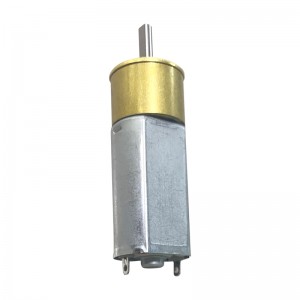

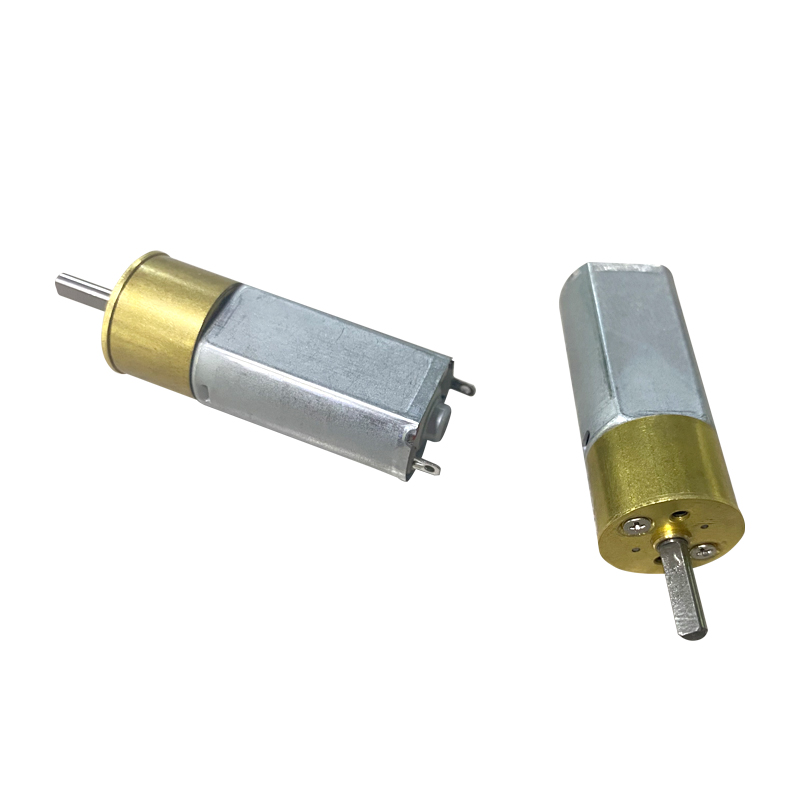

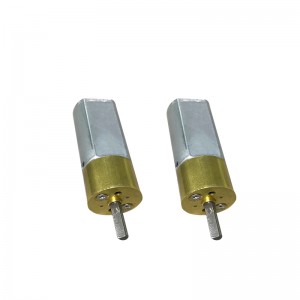

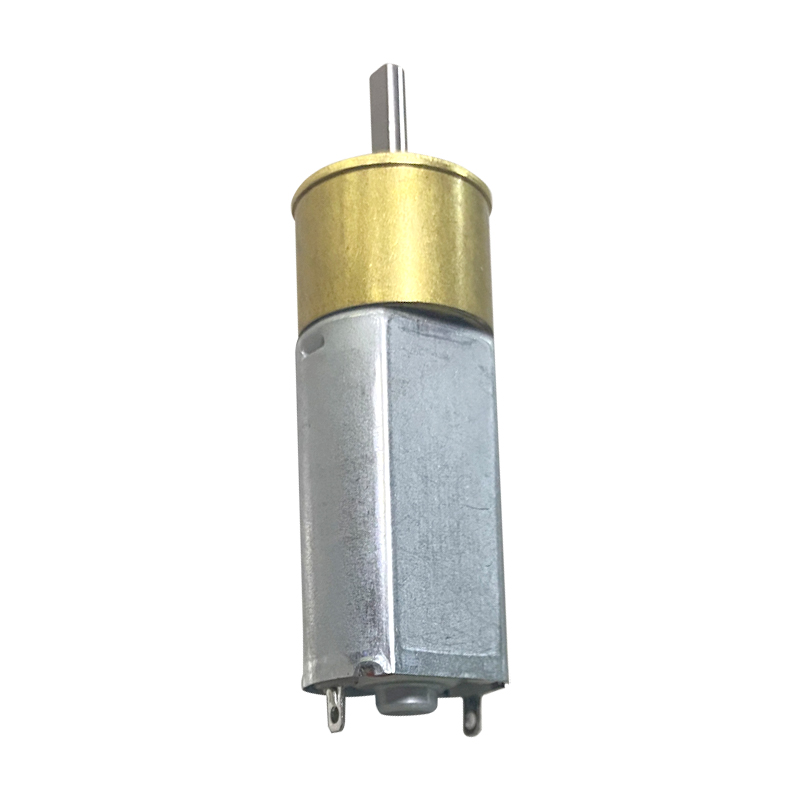

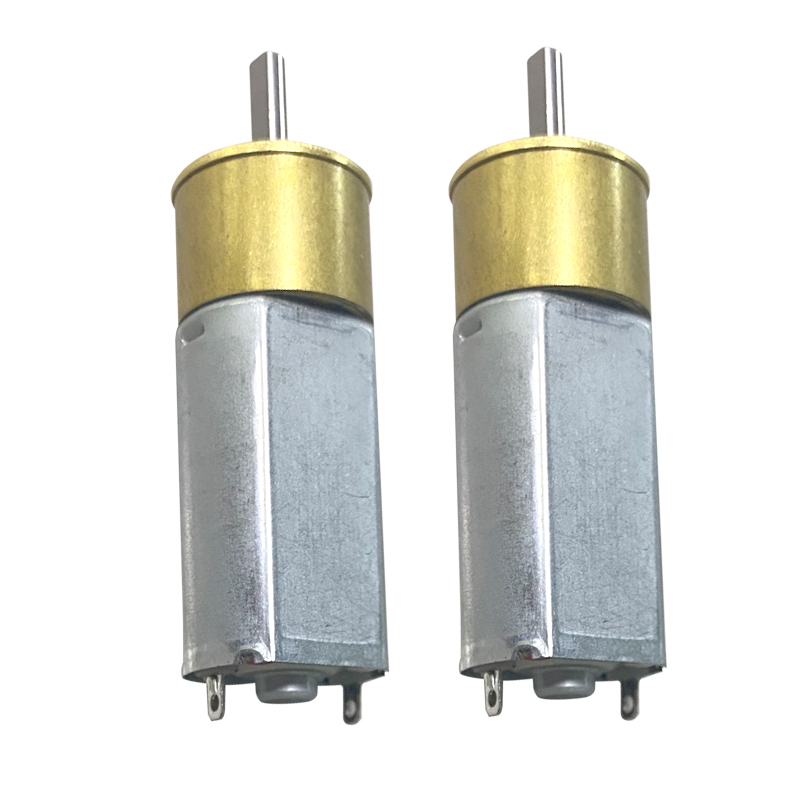

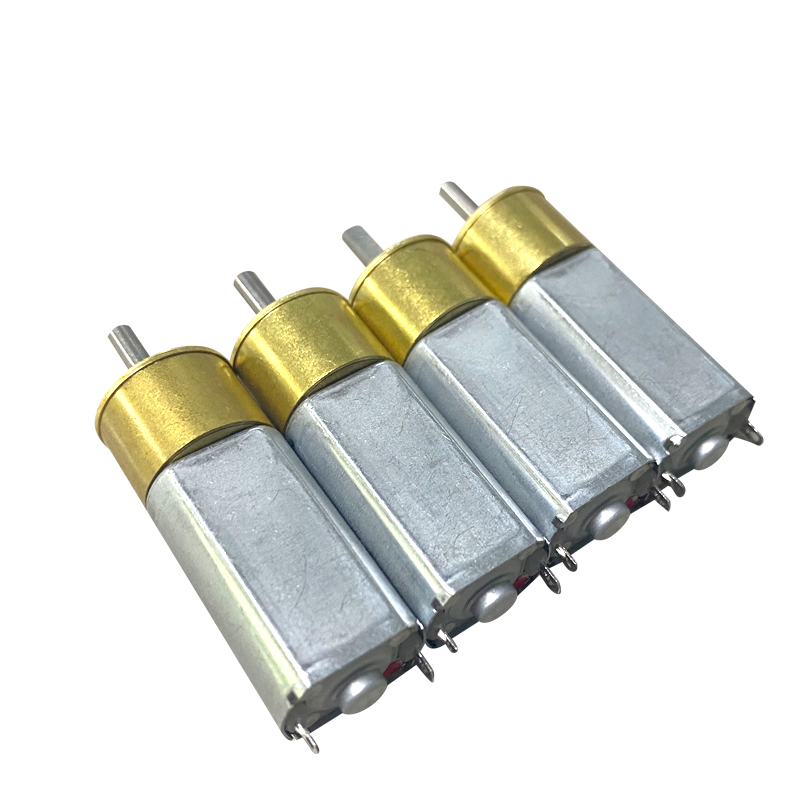

FT-16RGM050 small gearbox motor spu gear motor

short description:

Gear Motor Model : : FT-16RGM050

Gear Box Diameter: : 16mm

Voltage : : 2~24V

Speed : : 2rpm~2000rpm

Torque: : Customization accepted

Send email to us

Product Detail

Product Tags

Product Details

1. Main voltage: 3-24VDC

2. Typical applications: Automatic door-lock, projector, hairdressing equipment

3. Round Gearbox size: φ16mm*L

4. Torque: 0.05kgf.cm~2.5kgf.cm

5. Direction: CW, CCW

6. Voltage, speed, and shaft can be customized based

7. Encoder 3PPR available

Driving Motor Data

Number of stages	3	4	5	6	7
Reduction ratio	10,14	23,28,32,40	46,56,6579,91,112	130,159,183 224,257,315	365,448,515 631,725,889
Gearbox length “L”mm	11	12.5	14	15.5	17
Breaking torque(kgf.cm)	1	2	3	4	4
Gearbox efficiency	73%	65%	59%	53%	48%

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf.cm	W	gf.cm	mA
FT-050-006-9000	6	≤60	9000	≤260	7500	8	0.6	≥30	≥550
FT-050-006-12000	6	≤70	12000	≤300	9300	10	1.0	≥40	≥1000
FT-050-012-9000	12	≤30	9000	≤130	7500	8	0.6	≥30	≥300
FT-050-012-12000	12	≤50	12000	≤200	10000	10	1.0	≥40	≥600

Gear Motor Data

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	A	r/min	A	r/min	kgf.cm	W	kgf.cm	A
FT-16RGM5000611400-365K	6.00	0.07	32.2	0.27	25.5	1.20	0.32	5.82	1.04
FT-16RGM0500068000-365K	6.00	0.07	23.4	0.26	17.8	1.90	0.35	7.88	0.86
FT-16RGM0500088300-46K	8.00	0.02	183.1	0.11	144.6	0.16	0.24	0.76	0.42
FT-16RGM05001210500-515K	12.00	0.03	20.0	0.11	15.5	1.30	0.20	5.70	0.35
FT-16RGM05001215000-40K	12.00	0.03	376.3	0.16	303.7	0.23	0.73	1.21	0.70
FT-16RGM05001216000-315K	12.00	0.07	56.9	0.29	47.2	2.30	1.14	13.70	1.35
FT-16RGM0500128000-112K	12.00	0.02	70.6	0.07	52.4	0.35	0.19	1.35	0.21
FT-16RGM0500128000-448K	12.00	0.02	18.6	0.06	13.4	0.92	0.13	3.32	0.17
FT-16RGM0500128000-515K	12.00	0.02	15.9	0.065	12	0.97	0.12	3.93	0.20
FT-16RGM0500128000-631K	12.00	0.03	12.2	0.07	8.0	1.43	0.12	4.20	0.15

Remark

Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;

Gear Motor Speed=Driving motor speed/Reduction ratio

Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...

Welcome OEM or ODM projects
