FT-24PGM370 Planetary Gear Motor

short description:

The main products of the company include: various precision DC motors, stepper motors, reduction motors, planetary reduction motors brushless motors.

Micro motors are widely used in medical equipment, medical detection and analysis, financial security, 5G applications, automotive appliances, intelligent communication, iris technology, AI intelligence, smart grid, smart home, commercial intelligent locks, smart switches, smart medicine cabinets, fresh food cabinets, smart wear, outdoor equipment intelligent robots, electric tools, beauty tools, etc.

The company is located in Dongguan, Guangdong Province. After eleven years of rapid development, it has a group of young and pragmatic, professional and efficient work teams, advanced production facilities, efficient management, excellent quality, and high-quality services to meet customers’ needs of continuously improving product levels, reducing energy consumption, facilitating production, and improving efficiency, Win more and more recognition from customers.

Gear Motor Model : FT-24PGM370 planetary gear motor brushless motor

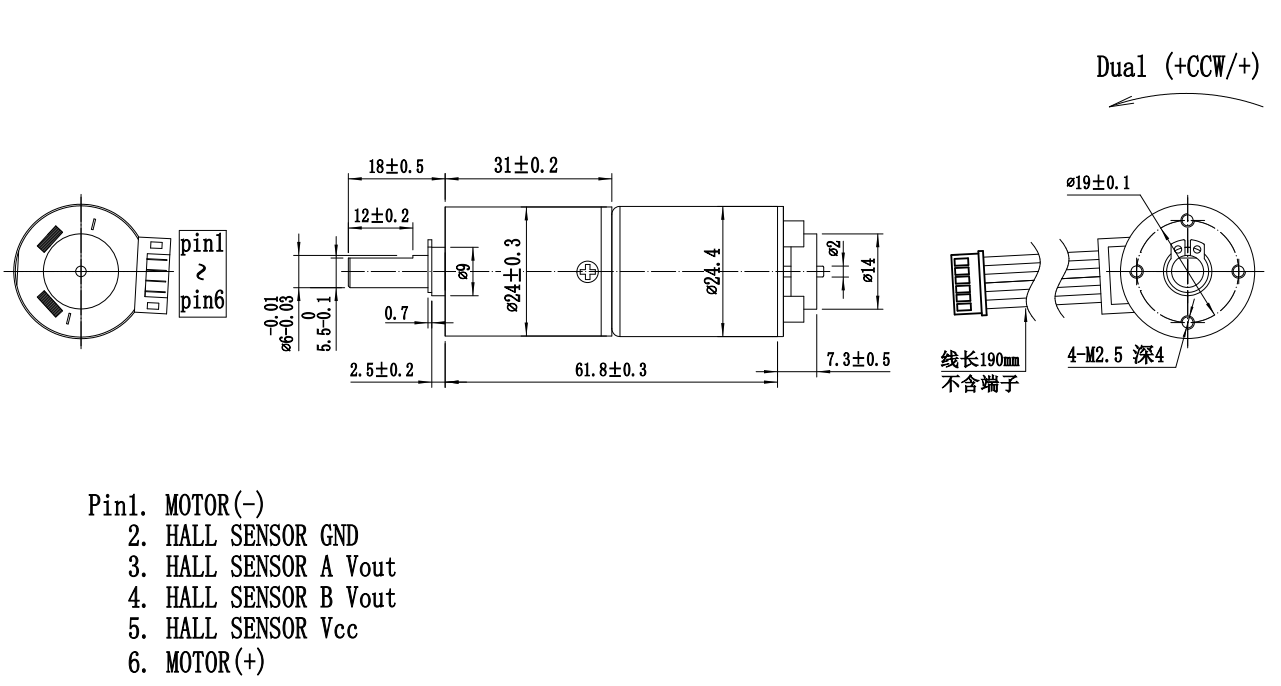

Gear Box Diameter : 24mm

Voltage : 2~24V

Speed : 2rpm~2000rpm

Torque: Customization Accepted

Send email to us

Product Detail

Product Tags

Products Description

Technical Parameters

The heart of this gear system is the central sun gear, strategically located at the center of the gear train.

Reduction ratio		19	27	51	71	100	139	189	264	369	516
6.0V	No-load speed(rpm)	280	195	105	75	55	40	29	21	15	11
	Rated speed(rpm)	250	180	95	68	48	35	25	18	12	9
	Rated torque(kg.cm)	0.3	0.5	0.7	1.0	1.4	2.0	2.5	3.5	4.4	5.0
12.0V	No-loadspeed(rpm)	280	195	105	75	55	40	29	21	15	11
	Rated speed(rpm)	250	180	95	68	48	35	25	18	121	9
	Rated torque(kg.cm)	0.3	0.5	0.7	1.0	1.4	2.0	2.5	3.5	4.4	5.0

In order to complete this special gear system, a gear carrier is usually required. Brackets hold the planetary gearmotor in place, ensuring their correct alignment and movement. The planet carrier contributes to the smooth operation of the planetary gear motor by keeping the planet gears perfectly aligned.

Product Video

Application

Planetary geared brushless dc motor Widely Used In Smart home appliances, Smart pet products ,Robots, Electronic locks, Public bicycle locks, Electric daily necessities, ATM machine , Electric glue guns, 3D printing pens, Office equipment, Massage health care, Beauty and fitness equipment, Medical equipment, Toys, Curling iron, Automotive automatic facilities.

Company Profile

What is a planetary gear motor?

Another significant advantage of planetary gear motors is their high efficiency. The gear system evenly distributes load among the planetary gears, resulting in lower wear and friction than other gear motor designs. This reduces energy losses and increases overall efficiency, making planetary gear motors a cost-effective choice for machinery and equipment that require continuous, reliable operation.

Planetary gear motors also provide excellent precision and control. Multiple gear stages in the motor provide different gear ratios, allowing a variety of speeds and torques. This versatility makes them suitable for applications requiring precise positioning and variable speed, such as robots or CNC machine tools.

Previous: FT-24PGM290 Planetary Gear Motor

Next: FT-58SGM36ZY Worm geared motor 36ZY Tubular motor

A gear motor is a mechanical device consisting of an electric motor and a gearbox, differing from a DC motor for lower RPM and higher torque.

Micro Motors specializes in the manufacture of miniature gear motors, both with brushes and without brushes, and stepper motors.

A gear motor is a mechanical device consisting of an electric motor and a gearbox, differing from a DC motor for lower RPM and higher torque.

Micro Motors specializes in the manufacture of miniature gear motors, both with brushes and without brushes, and stepper motors.

we are DC gear motor manufacturer , my factory mainly produce and supply Micro DC planetary gear motor, Worm gear motor, Spur gear motor, Brushed motor , Brushless BLDC motor and so on , We have a professional engineering design team that can design motor performance parameters according to your product requirements.

1.Q: Are you trading company or manufacturer?

A: We’re factory. We specialize in micro dc motor and dc gear motor for more than 20 years.

2.Q: What is the payment term for a new customer?

A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer
also can pay with PayPal or TT etc.

3.Q: I can’t find a suitable motor on your website, can you customize the motor for me?

A: Yes, we can customize a suitable motor according to our customer’s requirements.

4.Q: Do you have certificates for the motors?

A: Yes, we have RoHS， CE, FCC, ISO, IATF16949 etc. If you have the other certificates requirement, we can apply it for you.

5.Q: How is your Quality Control?

A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire
quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test
Machine, and Noise tester etc.

24mm planetary gear motor
