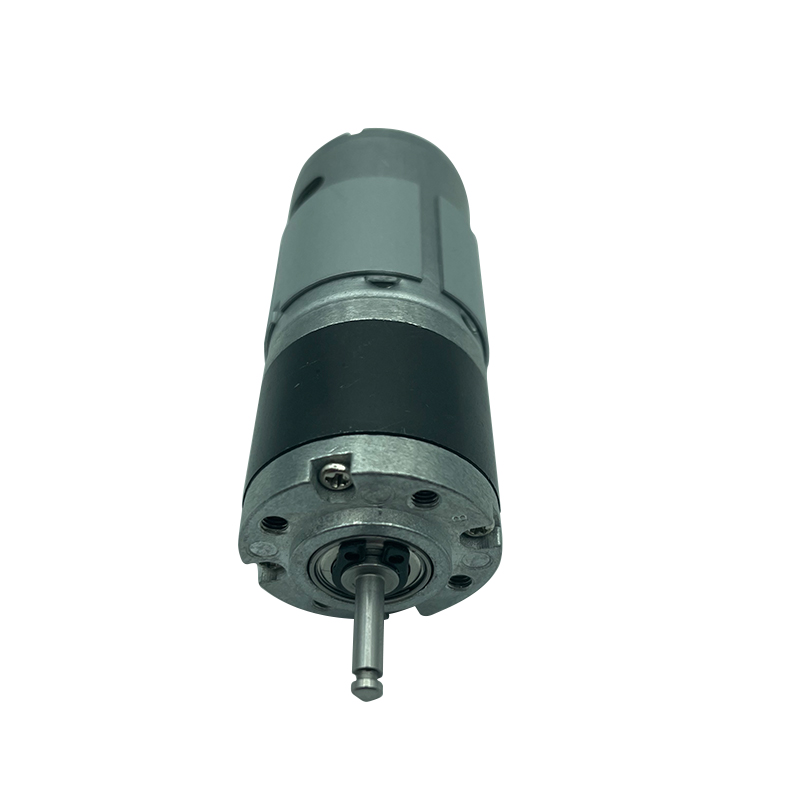

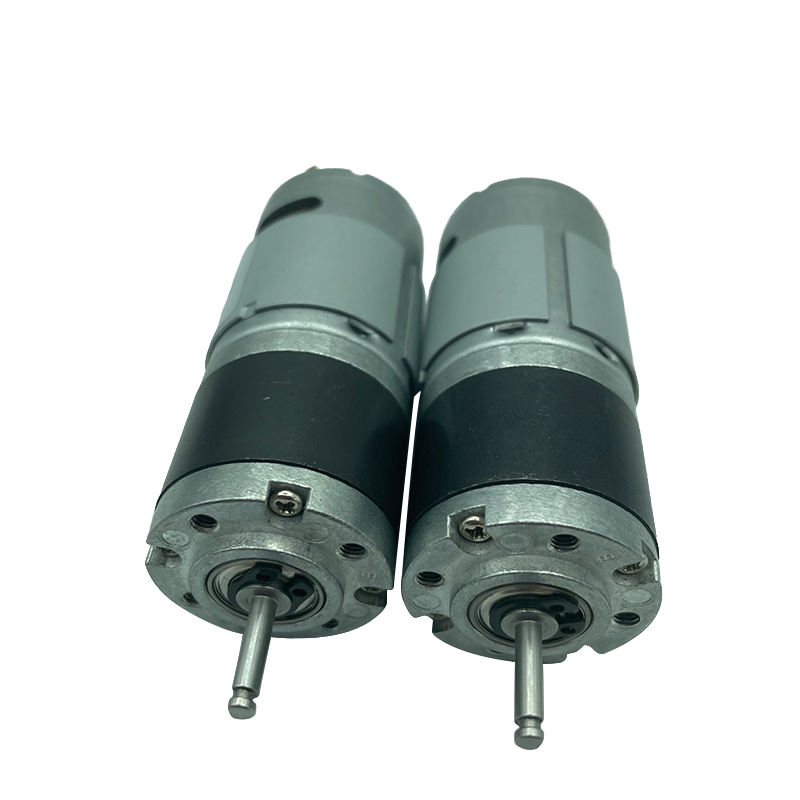

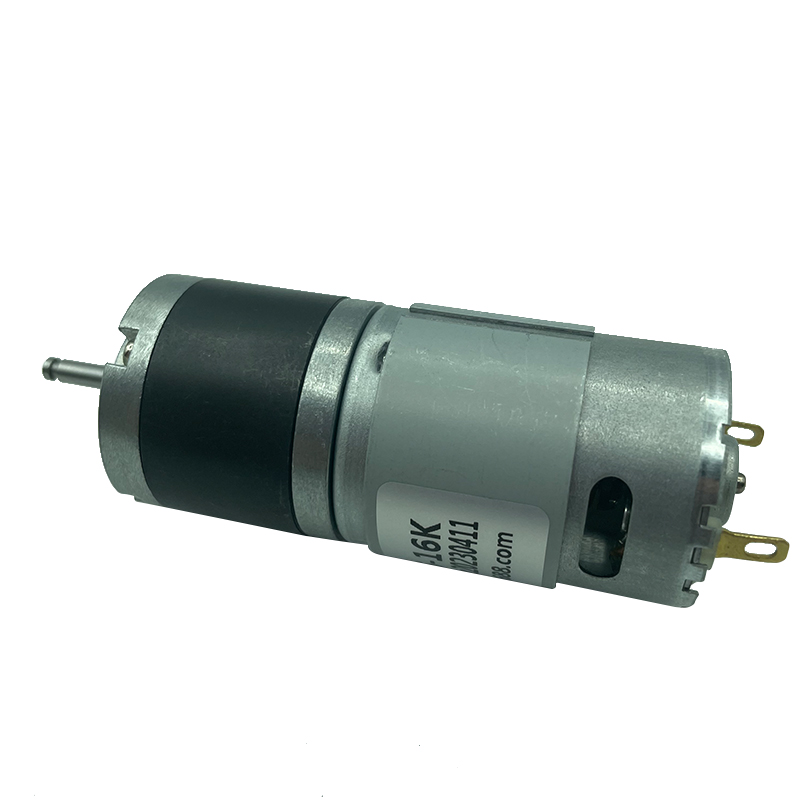

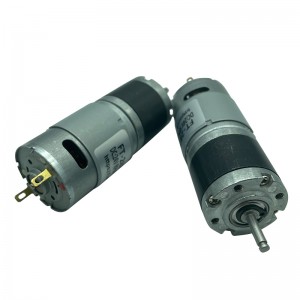

FT-28PGM385 DC motors planetary gear motors

short description:

Technical Parameters

Gear Motor Model : FT-28PGM385 Planetary Gear Motor

Gear Box Diameter : 28mm

Voltage : 2~24V

Speed : 2rpm~2000rpm

Torque: Customization accepted

Send email to us

Product Detail

Product Tags

Product Video

About This Item

Planetary gear motors are the epitome of cutting-edge technology, seamlessly integrating high torque, compact structure, high precision, high efficiency, low noise, reliability and diverse options. This revolutionary innovation will change the world of mechanical transmission and motion control for the better.

Specifications			Specifications below are for reference only.Contact us for more.
Model Number	Rated Volt.	No Load		At Max Efficiency				Stall
		Speed	Current	Speed	Current	Torque	Power	Current	Torque
		rpm	mA	rpm	mA	Kgf.cm	W	mA	Kgf.cm
FT-28PGM3950128000-3.4K	12V	2352	≤40	1930	≤1460	0.35	6.9	23800	21.4
FT-28PGM39501211000-51K	12V	210	≤1500	149	≤4300	9	13.8	≥7000	231
FT-28PGM3950126000-27K	12V	222	≤240	179	≤910	1.8	3.3	≥2300	28.7
FT-28PGM3950124500-27K	12V	167	≤230	120	≤75	1.9	2.3	≥1300	≥6.5
FT-28PGM3950124500-51K	12V	88	≤250	67	≤750	3	2.1	≥1300	≥10
FT-28PGM3950123000-515K	12V	5.8	≤180	3.9	≤480	21.8	0.9	≥630	25.9
FT-28PGM3950246000-3.3K	24V	1818	≤150	1495	≤65	0.4	6.1	≥2200	≥2
FT-28PGM3950246000-52.1K	24V	115	≤120	102	≤55	4.8	5.0	≥2350	≥29
FT-28PGM3950246000-100K	24V	60	≤130	51	≤600	11.3	5.9	≥2200	≥55
FT-28PGM3950246000-264K	24V	22	≤200	16	≤620	18	3.0	≥1000	≥62
FT-28PGM3950246000-27K	24V	222	≤160	174	≤680	2.8	5.0	≥1300	≥10
FT-28PGM3950246000-189K	24V	32	≤320	22.8	≤90	17	4.0	≥1400	255
FT-28PGM3950246000-515K	24V	11.6	≤200	8.9	≤710	39.8	3.6	≥1400	≥147
FT-28PGM3950243000-139K	24V	21	≤75	13	≤200	6.6	3	≥290	≥18.8
Remark:1Kgf.cm=0.098 N.m≈14 oz.in 1mm≈0.039 in
Technical data and performance parameter accept customization

Features:

1. High efficiency: Efficiency is the core of our planetary gear motors, ensuring optimal power utilization and minimal energy waste. By leveraging advanced technology, we create a product that maximizes output while minimizing inputs.

2. Low Noise: Noise pollution is an important issue in many industries. Our gear motors take this into account through their innovative design, significantly reducing noise levels. Experience quieter, more peaceful operation without compromising performance.

3. Reliability: For mechanical transmission, reliability is crucial. Our gear motors are engineered with rugged components and meticulous craftsmanship to provide outstanding reliability. Our products perform flawlessly even in the most challenging conditions.

4. Diverse options: We understand that every application has unique requirements. To accommodate this diversity, we offer a wide range of options including a variety of gear ratios, motor types and output configurations. Our planetary gearmotors give you the flexibility to choose the perfect combination for your specific needs.

DC Gear Motor Widely Used In Smart home appliances, Smart pet products ,Robots, Electronic locks, Public bicycle locks, Electric daily necessities, ATM machine , Electric glue guns, 3D printing pens, Office equipment, Massage health care, Beauty and fitness equipment, Medical equipment, Toys, Curling iron, Automotive automatic facilities.

Application

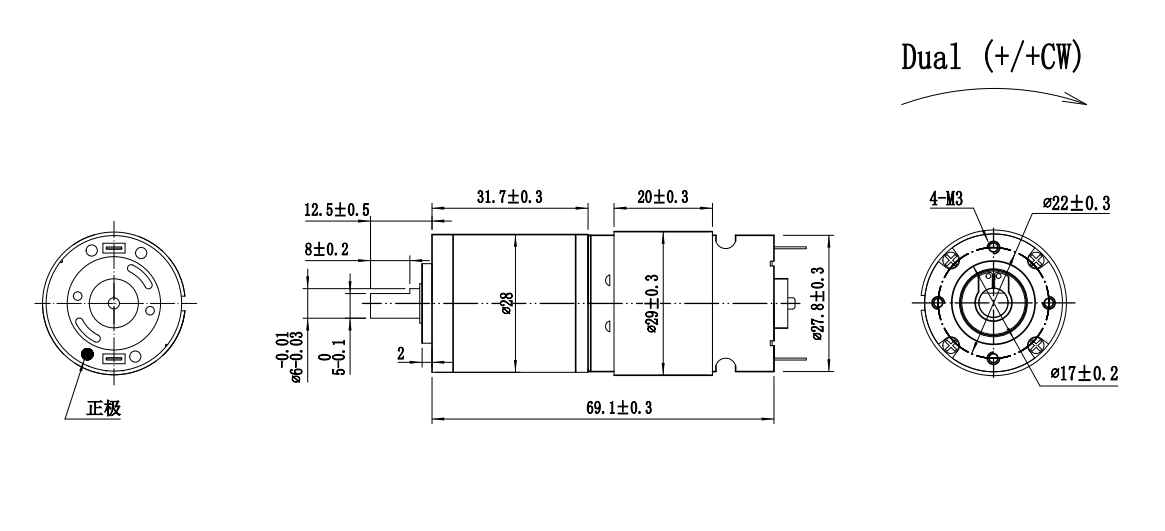

Dimensions And Reduction Ratio

Company Profile

Previous: FT-28PGM390 high torque low noise 28mm planetary gear motor

Next: FT-28PGM380 planetary gearmotor reduction gear motor

A gear motor is a mechanical device consisting of an electric motor and a gearbox, differing from a DC motor for lower RPM and higher torque.

Micro Motors specializes in the manufacture of miniature gear motors, both with brushes and without brushes, and stepper motors.

A gear motor is a mechanical device consisting of an electric motor and a gearbox, differing from a DC motor for lower RPM and higher torque.

Micro Motors specializes in the manufacture of miniature gear motors, both with brushes and without brushes, and stepper motors.

we are DC gear motor manufacturer , my factory mainly produce and supply Micro DC planetary gear motor, Worm gear motor, Spur gear motor, Brushed motor , Brushless BLDC motor and so on , We have a professional engineering design team that can design motor performance parameters according to your product requirements.

1.Q: Are you trading company or manufacturer?

A: We’re factory. We specialize in micro dc motor and dc gear motor for more than 20 years.

2.Q: What is the payment term for a new customer?

A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer
also can pay with PayPal or TT etc.

3.Q: I can’t find a suitable motor on your website, can you customize the motor for me?

A: Yes, we can customize a suitable motor according to our customer’s requirements.

4.Q: Do you have certificates for the motors?

A: Yes, we have RoHS， CE, FCC, ISO, IATF16949 etc. If you have the other certificates requirement, we can apply it for you.

5.Q: How is your Quality Control?

A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire
quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test
Machine, and Noise tester etc.
