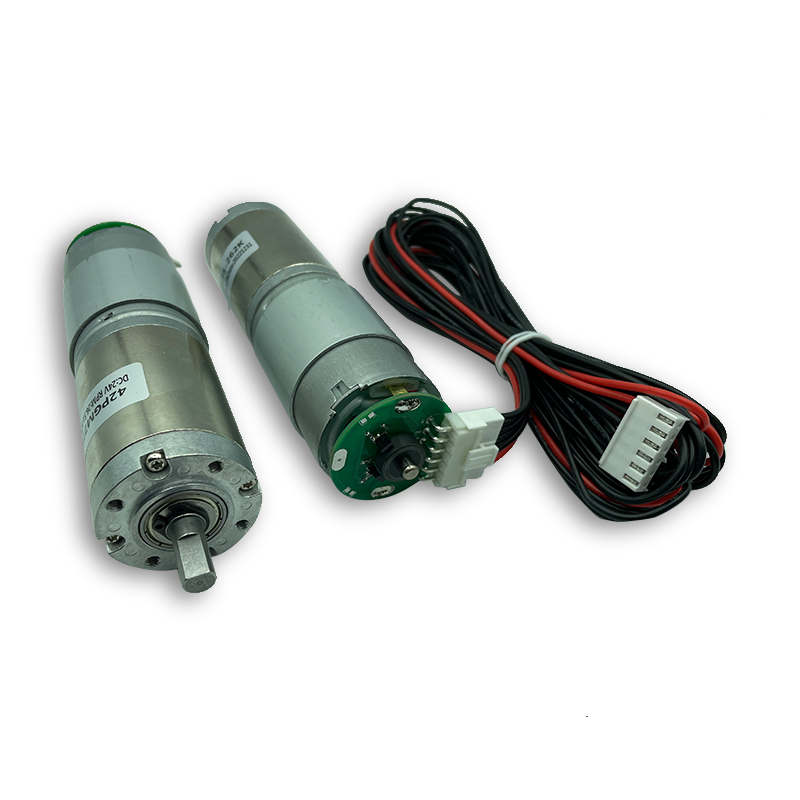

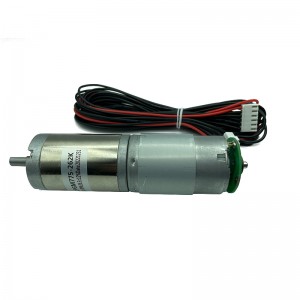

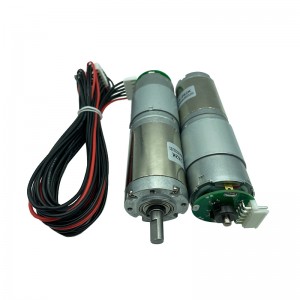

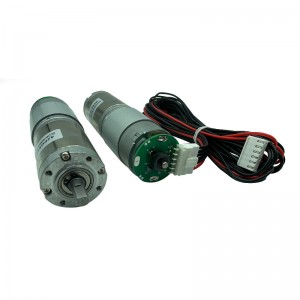

FT-42PGM775 planetary gear motor with encoder
Product Video
About This Item
| Model number | Rated volt. | No load | Load | Stall | |||||
| Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| rpm | mA(max) | rpm | mA(max) | Kgf.cm | W | mA(min) | Kgf.cm | ||
| FT-42PGM77501212000-3.7K | 12V | 3243 | 4700 | 2528 | 20000 | 3 | 77.8 | 43000 | 12 |
| FT-42PGM7750123500-3.7K | 12V | 945 | 600 | 772 | 3100 | 1.7 | 13.5 | 8000 | 8 |
| FT-42PGM7750127000-3.7K | 12V | 1891 | 1900 | 1544 | 8900 | 2.5 | 39.6 | 20000 | 10 |
| FT-42PGM7750126000-5K | 12V | 1200 | 1200 | 1087 | 6000 | 2.6 | 29 | 17430 | 13 |
| FT-42PGM7750128000-25K | 12V | 320 | 2000 | 226 | 7200 | 15 | 34.8 | 20500 | 62 |
| FT-42PGM7750127000-125K | 12V | 56 | 1100 | 47 | 7300 | 63 | 30.4 | 20900 | 313 |
| FT-42PGM7750126000-49K | 12V | 122 | 1250 | 97 | 4650 | 22.3 | 22.2 | 1730 | 122 |
| FT-42PGM7750126000-125K | 12V | 48 | 950 | 37 | 4200 | 52 | 19.7 | 12000 | 220 |
| FT-42PGM7750123600-125K | 12V | 28 | 550 | 23 | 2100 | 43 | 10.1 | 7100 | 222 |
| FT-42PGM7750246000-3.7K | 24V | 1621 | 700 | 1414 | 3800 | 2.3 | 33.4 | 12000 | 13.9 |
| FT-42PGM77502410000-13K | 24V | 769 | 1100 | 685 | 7400 | 9.9 | 69.6 | 27150 | 62 |
| FT-42PGM77502410000-14K | 24V | 730 | 860 | 626 | 5500 | 10.7 | 68.7 | 2500 | 64.6 |
| FT-42PGM7750248000-25K | 24V | 320 | 850 | 280 | 4000 | 15 | 43.1 | 14500 | 80 |
| FT-42PGM7750242100-49K | 24V | 42 | 170 | 32 | 700 | 13.5 | 4.4 | 1400 | 51 |
| FT-42PGM7750243000-49K | 24V | 61 | 200 | 53 | 1100 | 15.8 | 8.6 | 3500 | 93 |
| FT-42PGM7750242100-67K | 24V | 31 | 130 | 23 | 590 | 17 | 4 | 1420 | 75 |
| FT-42PGM7750247000-67K | 24V | 104 | 600 | 90 | 3600 | 32 | 29.6 | 13600 | 216 |
| FT-42PGM7750243600-125K | 24V | 28 | 300 | 24 | 1800 | 57 | 14 | 5400 | 300 |
| FT-42PGM7750244500-181K | 24V | 24.8 | 900 | 19 | 3030 | 92 | 17.9 | 6200 | 368 |
| FT-42PGM7750242000-336K | 24V | 6 | 150 | 4.7 | 500 | 57 | 2.7 | 1000 | 220 |
| Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in | |||||||||
Our planetary gear motors are engineered to meet the highest quality standards. Each motor undergoes rigorous testing and quality assurance procedures to ensure optimal performance and reliability. Additionally, our motors come with comprehensive user manuals and technical support to help you through the installation and operating process.
Whether you are in the industrial, automotive or consumer sectors, our planetary gear motors provide versatile solutions for a variety of applications. From robotics and automation to machinery and appliances, our motors will undoubtedly exceed your expectations.Upgrade your motor system to the next level with our cutting-edge planetary gear motors. Experience the difference today!
Features:
Planetary geared motors have the following characteristics:
1、High torque
2、Compact structure:
3、High precision
4、High efficiency
5、Low noise
6、Reliability:
7、Diversified choices
Generally speaking, planetary geared motors have the characteristics of high torque, compact structure, high precision, high efficiency, low noise and reliability, and are suitable for various mechanical transmission and motion control fields.
Application
DC Gear Motor Widely Used In Smart home appliances, Smart pet products ,Robots, Electronic locks, Public bicycle locks, Electric daily necessities, ATM machine , Electric glue guns, 3D printing pens, Office equipment, Massage health care, Beauty and fitness equipment, Medical equipment, Toys, Curling iron, Automotive automatic facilities.
Company Profile
A gear motor is a mechanical device consisting of an electric motor and a gearbox, differing from a DC motor for lower RPM and higher torque.
Micro Motors specializes in the manufacture of miniature gear motors, both with brushes and without brushes, and stepper motors.
A gear motor is a mechanical device consisting of an electric motor and a gearbox, differing from a DC motor for lower RPM and higher torque.
Micro Motors specializes in the manufacture of miniature gear motors, both with brushes and without brushes, and stepper motors.
we are DC gear motor manufacturer , my factory mainly produce and supply Micro DC planetary gear motor, Worm gear motor, Spur gear motor, Brushed motor , Brushless BLDC motor and so on , We have a professional engineering design team that can design motor performance parameters according to your product requirements.
1.Q: Are you trading company or manufacturer?
A: We’re factory. We specialize in micro dc motor and dc gear motor for more than 20 years.
2.Q: What is the payment term for a new customer?
A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer
also can pay with PayPal or TT etc.
3.Q: I can’t find a suitable motor on your website, can you customize the motor for me?
A: Yes, we can customize a suitable motor according to our customer’s requirements.
4.Q: Do you have certificates for the motors?
A: Yes, we have RoHS， CE, FCC, ISO, IATF16949 etc. If you have the other certificates requirement, we can apply it for you.
5.Q: How is your Quality Control?
A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire
quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test
Machine, and Noise tester etc.
