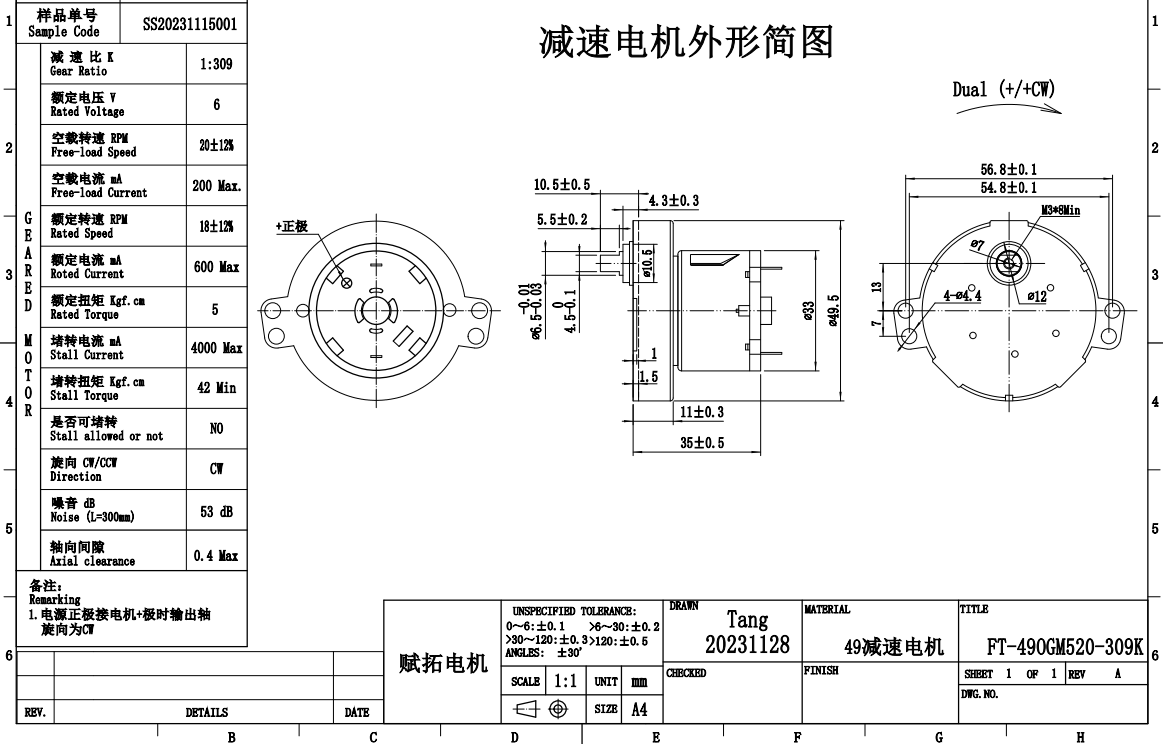

FT-49OGM520 49mm round Gear motor
Features
| Model number | Rated volt. | No load | Load | Stall | |||||
| Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| rpm | mA(max) | rpm | mA(max) | Kgf.cm | W | mA(min) | Kgf.cm | ||
| FT-49OGM5000063300-532K-3V | 3V | 3 | 50 | 2 | 110 | 2.6 | 0.05 | 140 | 7 |
| FT-49OGM5000031800-176K | 3V | 11 | 30 | 8 | 100 | 1 | 0.08 | 160 | 3 |
| FT-49OGM5000062100-105K | 6V | 20 | 50 | 12 | 120 | 1 | 0.12 | 160 | 2.5 |
| FT-49OGM5000064400-105K | 6V | 42 | 140 | 27.5 | 370 | 1.5 | 0.42 | 580 | 5 |
| FT-49OGM5000066000-176K | 6V | 34 | 300 | 22 | 720 | 3.8 | 0.86 | 1100 | 12 |
| FT-49OGM50066000-266K | 6V | 22 | 180 | 16 | 600 | 4.5 | 0.74 | 990 | 15 |
| FT-49OGM5000064000-530K | 6V | 8 | 80 | 5.6 | 200 | 5 | 0.29 | 450 | 19 |
| FT-49OGM5000123000-340K | 12V | 8 | 40 | 6 | 130 | 5 | 0.31 | 280 | 21 |
| Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in | |||||||||
DC brushed reduction motors have excellent torque output. The brush structure transmits rotational motion more efficiently, resulting in greater torque. This is particularly beneficial for applications that require heavy lifting or high-speed rotation, ensuring the motor can handle any task effortlessly and effortlessly.
Another notable feature of this motor is its reliability. The brush construction ensures consistent and reliable contact between the rotor and stator, minimizing the risk of any electrical or mechanical failure. With this motor, you'll have peace of mind knowing it will operate consistently and reliably, even in the harshest environments.
Company Profile
A gear motor is a mechanical device consisting of an electric motor and a gearbox, differing from a DC motor for lower RPM and higher torque.
Micro Motors specializes in the manufacture of miniature gear motors, both with brushes and without brushes, and stepper motors.
A gear motor is a mechanical device consisting of an electric motor and a gearbox, differing from a DC motor for lower RPM and higher torque.
Micro Motors specializes in the manufacture of miniature gear motors, both with brushes and without brushes, and stepper motors.
we are DC gear motor manufacturer , my factory mainly produce and supply Micro DC planetary gear motor, Worm gear motor, Spur gear motor, Brushed motor , Brushless BLDC motor and so on , We have a professional engineering design team that can design motor performance parameters according to your product requirements.
