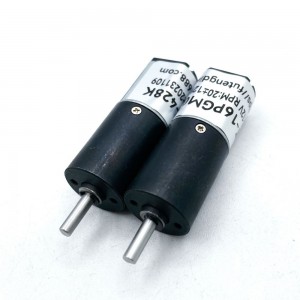

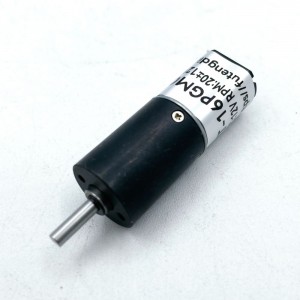

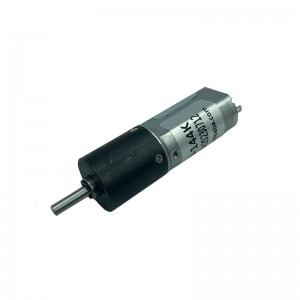

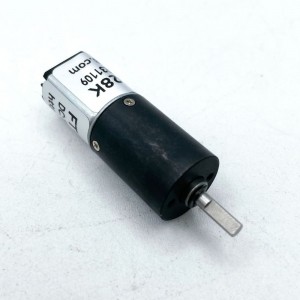

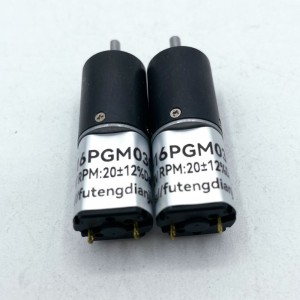

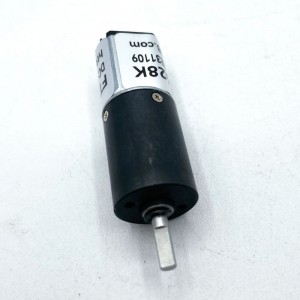

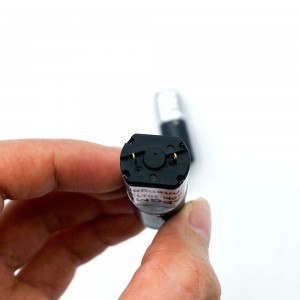

Small size and high precision 16mm DC brushed motor planetary gear motor
short description:
Adding a gearbox to a brushless DC motor allows for torque multiplication and speed reduction.
SPECIFICATIONS
The specifications are for reference only. Contact us for customized data.
| Model number | Rated volt. | No load | Load | Stall | |||||
| Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| rpm | mA(max) | rpm | mA(max) | Kgf.cm | W | mA(min) | Kgf.cm | ||
| FT-32RGM38500610500-13K | 6V | 807 | 1000 | 601 | 3600 | 0.91 | 5.61 | 6800 | 3.3 |
| FT-32RGM3850129000-83K | 12V | 110 | 360 | 90 | 1300 | 2.7 | 2.49 | 3000 | 12 |
| FT-32RGM38502411000-61K | 24V | 180 | 300 | 170 | 780 | 2 | 3.49 | 6500 | 20 |
| FT-32RGM3850247000-61K | 24V | 115 | 160 | 104 | 280 | 1.5 | 1.60 | 1800 | 11.5 |
| FT-32RGM38502411000-83K | 24V | 134 | 300 | 102 | 850 | 5 | 5.23 | 4000 | 23 |
| Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in | |||||||||
GEARBOX DATA
| Reduction stage | 2-stage | 3-stage | 4-stage | 5-stage | 6-stage | 7-stage |
| Reduction ratio | 6 | 13, 15 | 28, 32, 38 | 61, 71, 83, 96 | 135, 156, 182, 211, 245 | 296, 344, 400, 464, 540, 627 |
| Gearbox length (L) mm | 17.5 | 20 | 22.5 | 25 | 27.5 | 30 |
| Max rated torque Kgf.cm | 2 | 2 | 2.5 | 4 | 6 | 8 |
| Max momentary torque Kgf.cm | 3 | 3 | 4 | 6 | 10 | 12 |
| Gearbox efficiency | 81% | 73% | 65% | 59% | 53% | 48% |
MOTOR DATA
| Motor model | Rated Volt. | No load | Load | Stall | |||||
| Current | Speed | Current | Speed | Torque | Power | Torque | Current | ||
| V | mA | rpm | mA | rpm | gf.cm | W | gf.cm | mA | |
| FT-385 | 6 | ≤400 | 10000 | ≤2500 | 8400 | 80 | 7.04 | ≥430 | ≥8800 |
| FT-385 | 12 | ≤70 | 3000 | ≤260 | 1950 | 50 | 1.02 | ≥160 | ≥520 |
| FT-385 | 12 | ≤90 | 4500 | ≤460 | 3500 | 50 | 1.83 | ≥230 | ≥1300 |
| FT-385 | 24 | ≤80 | 3300 | ≤250 | 2750 | 74 | 2.13 | ≥290 | ≥440 |
| FT-385 | 24 | ≤120 | 7400 | ≤370 | 6400 | 60 | 4.02 | ≥420 | ≥1580 |

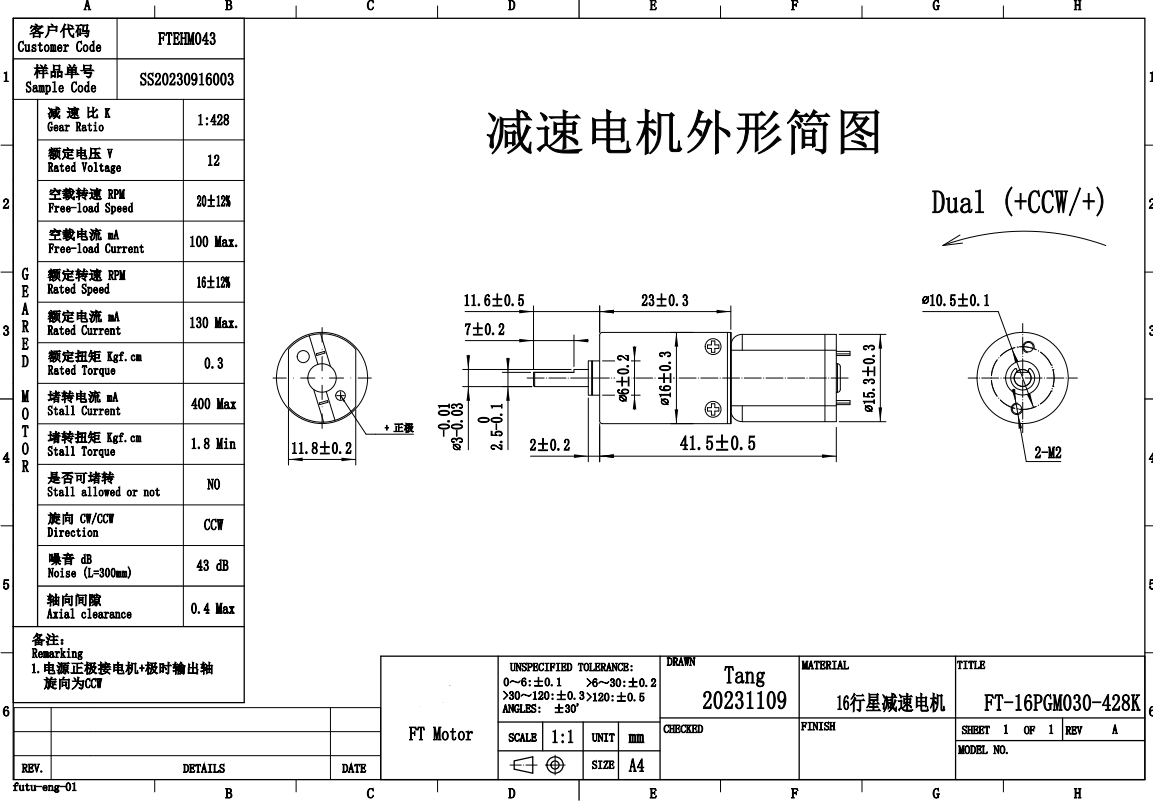

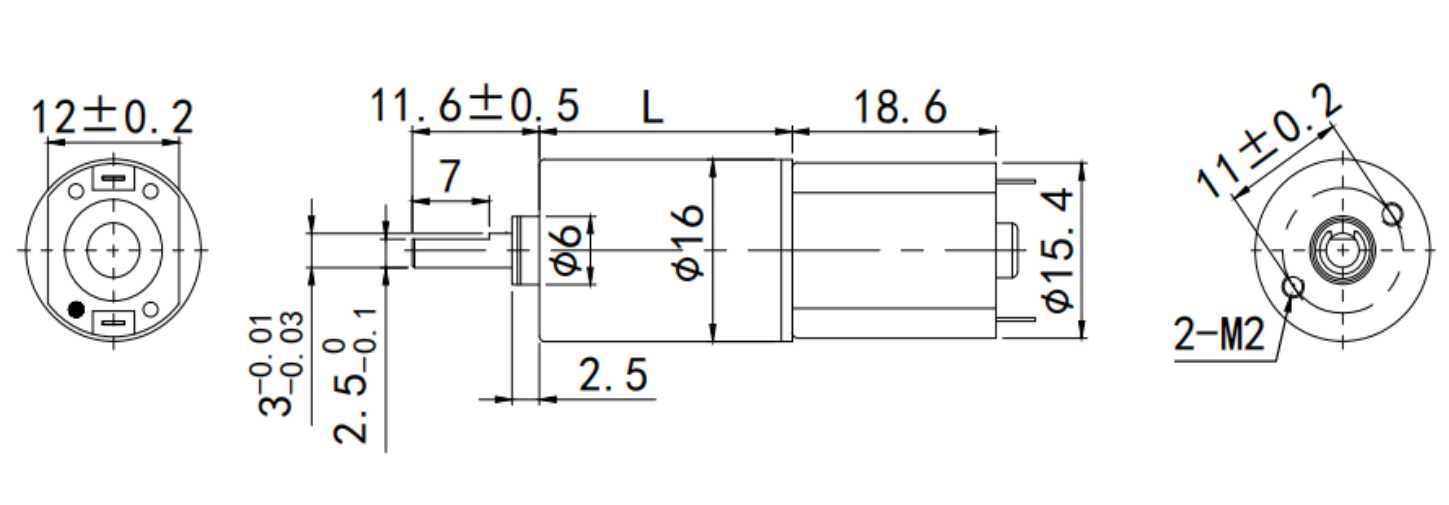

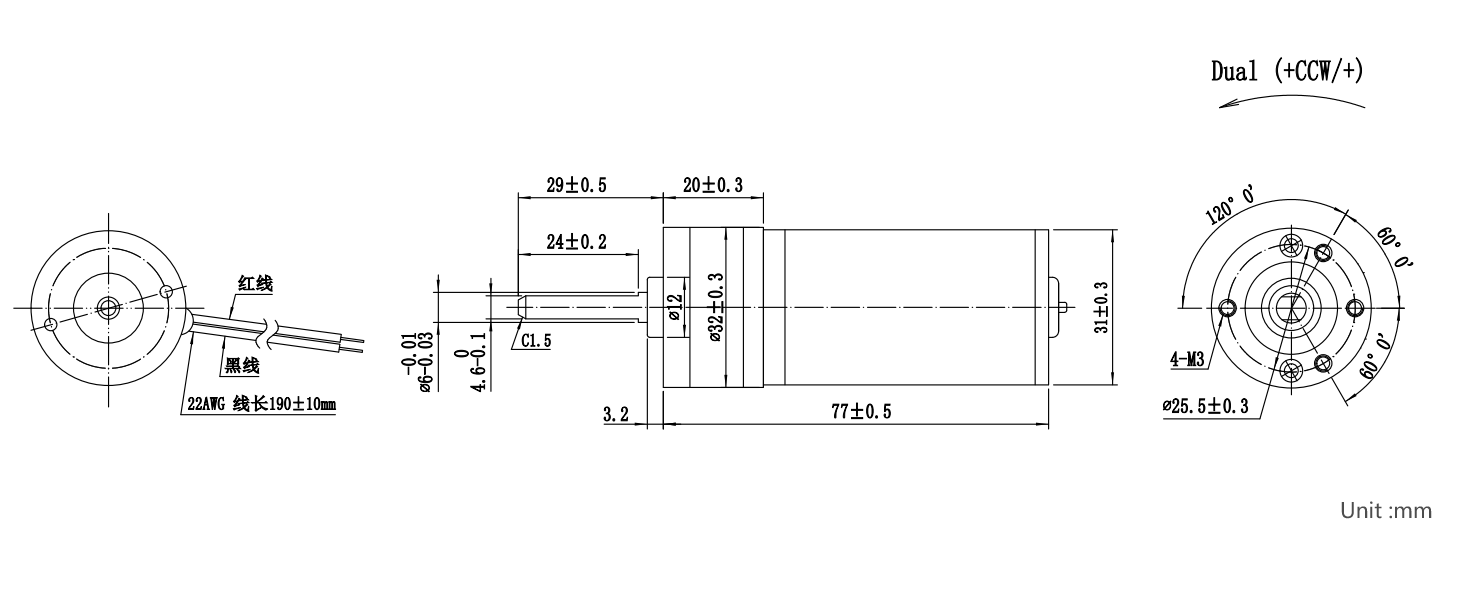

Dimensions(MM)
Gearbox Data
| Number of gear | 1 | 2 | 3 | 4 | ||||||||
| Reduction Ratio（K） | 4、4.75 | 14、16、19、22.5 24、28.5、36 |
49、56、64、76 84、90、96、107、114、135、144、177 |
196、224、233、256、266 276、294、304、316、336、349 361、384、399、428、456、474、509、541、576、643、684、812、864、1026 |
||||||||
| Gearbox length(mm) | 12.5 | 16 | 19.5 | 23 | ||||||||
| Rated Torque（kg·cm） | 0.2 | 0.5 | 1 | 2 | ||||||||
| Stall torque （kg·cm） | 4 | 6 | 8 | 10 | ||||||||
| Gearbxo Efficiency（%） | 83% | 71% | 63% | 51% | ||||||||
Motor Data
| Motor Model | No Load | Load | Stall | |||||||||
| Rated Voltage | Speed | Current | Speed | Current | Output | Torque | Current | Torque | ||||
| V | （rpm） | （mA） | （rpm） | （mA） | (w) | （g·cm） | （mA） | （g·cm) | ||||
| FT-030 | 3 | 8500 | 75 | 6550 | 280 | 0.35 | 5 | 600 | 20 | |||
| FT-030 | 5 | 13800 | 66 | 10870 | 250 | 0.6 | 5.4 | 910 | 25 | |||
| FT-030 | 6 | 10400 | 65 | 7800 | 190 | 0.39 | 5 | 400 | 18 | |||
| FT-030 | 7 | 14800 | 56 | 11500 | 200 | 0.67 | 5.7 | 680 | 25 | |||
1、The above motor parameters for reference, please refer to the actual sample.
2、Motor parameters and output shaft size can be customized.
3、Output torque = motor torque * reduction ratio * gear efficiency.
4、Output Speed = motor speed/reduction ratio.
