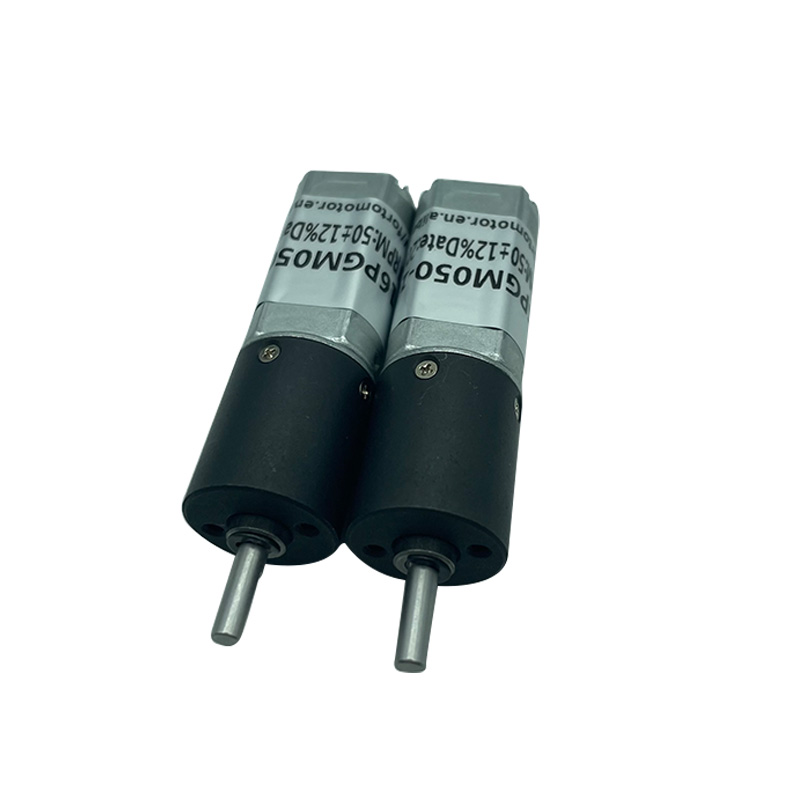

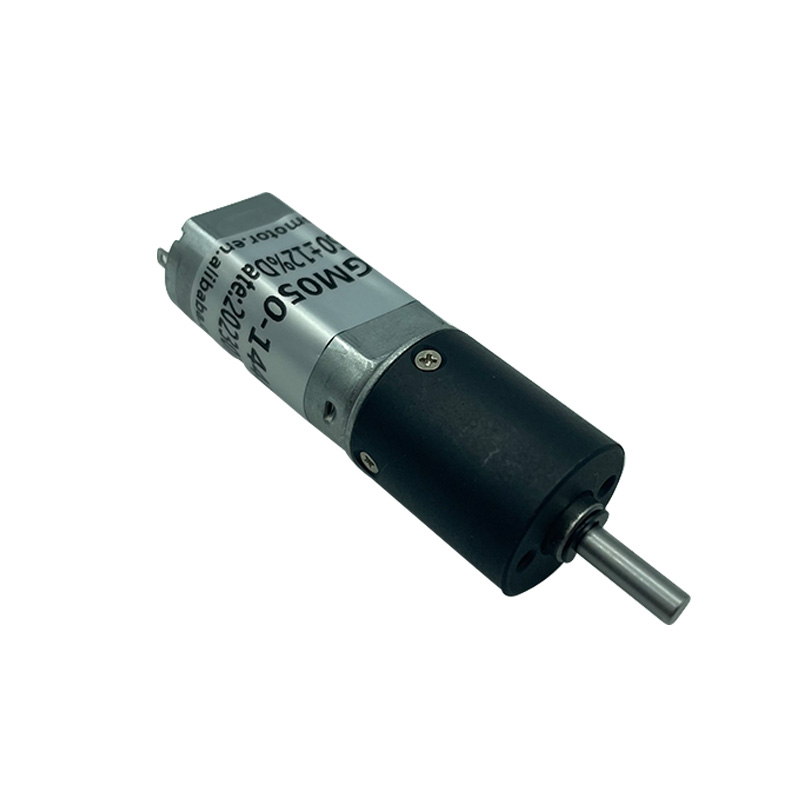

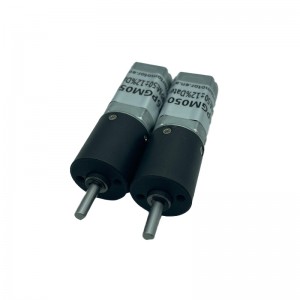

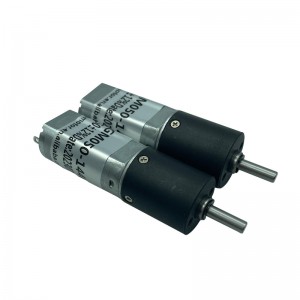

FT-16PGM050 16mm planetary geared motors
Product Video
Products Description
The 16mm planetary geared motor is a miniature motor with a high reduction ratio and torque output capability. It consists of a planetary gear system that can convert the input high speed rotation to a lower output speed and provide greater torque output. This kind of motor is usually widely used in precision instruments, robots, automation equipment, medical equipment and other fields to meet the requirements of small size and high performance. 16mm refers to the diameter size of the motor, which explains its compact design. If you need more detailed information about the 16mm planetary geared motor, please provide more specific questions or needs.
| SPECIFICATIONS | |||||||||
| The specifications are for reference only. Contact us for customized data. | |||||||||
| Model number | Rated volt. | No load | Load | stall | |||||
| Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| rpm | mA(max) | rpm | mA(max) | Kgf.cm | W | mA(min) | Kgf.cm | ||
| FT-16PGM05000313000-23K | 3V | 575 | 400 | 393 | 900 | 0.2 | 0.81 | 1700 | 0.6 |
| FT-16PGM0500032500-107K | 3V | 23 | 42 | 12 | 70 | 0.2 | 0.02 | 100 | 0.5 |
| FT-16PGM05000516400-3.5K | 5V | 4100 | 350 | / | / | / | / | 2800 | / |
| FT-16PGM05000516800-64K | 5V | 263 | 350 | 194 | 1150 | 0.62 | 1.23 | 2500 | 2.2 |
| FT-16PGM0500059000-107K | 5V | 84 | 150 | 56 | 350 | 0.78 | 0.45 | 630 | 220 |
| FT-16PGM0500068000-17K | 6V | 500 | 120 | 375 | 300 | 0.09 | 0.35 | 750 | 0.4 |
| FT-16PGM05000608000-23K | 6V | 355 | 120 | 225 | 243 | 0.18 | 0.42 | 570 | 0.55 |
| FT-16PGM0500069000-90K | 6V | 100 | 150 | 79 | 330 | 0.35 | 0.28 | 1000 | 2 |
| FT-16PGM0500066000-107K | 6V | 56 | 60 | 42 | 85 | 0.14 | 0.06 | 380 | 1.9 |
| FT-16PGM0500069000-1024K | 6V | 8.7 | 220 | 5 | 400 | 4.9 | 0.25 | 390 | 11 |
| FT-16PGM0500068000-2418K | 6V | 3 | 80 | 1.8 | 140 | 3.2 | 0.06 | 220 | 7.5 |
| FT-16PGM05001220000-17K | 12V | 1250 | 100 | 937 | 160 | 0.15 | 1.44 | 600 | 0.6 |
| FT-16PGM05001216800-90K | 12V | 187 | 200 | 31.5 | 560 | 0.9 | 0.29 | 1380 | 3 |
| FT-16PGM05001217900-107K | 12V | 167 | 230 | 130 | 570 | 1.2 | 1.6 | 1300 | 4 |
| FT-16PGM05001215000-256K | 12V | 60 | 200 | 39 | 285 | 2 | 0.8 | 750 | 8 |
| FT-16PGM05001214000-256K | 12V | 55 | 150 | 39 | 210 | 1.3 | 0.52 | 600 | 5.2 |
| FT-16PGM0500129000-428K | 12V | 21 | 60 | 14 | 150 | 1.6 | 0.23 | 260 | 5.2 |
| FT-16PGM05001217900-509K | 12V | 35 | 170 | 26 | 620 | 4.8 | 1.28 | 1150 | 17 |
| Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in | |||||||||
Application
DC Gear Motor Widely Used In Smart home appliances, Smart pet products ,Robots, Electronic locks, Public bicycle locks, Electric daily necessities, ATM machine , Electric glue guns, 3D printing pens, Office equipment, Massage health care, Beauty and fitness equipment, Medical equipment, Toys, Curling iron, Automotive automatic facilities.
What is a planetary gear motor?
A planetary gear motor is a type of DC reduction motor that is widely used in various industries and applications. These motors consist of a center gear (called a sun gear) surrounded by multiple smaller gears (called planet gears), all of which are held in place by a larger outer gear (called a ring gear). The unique arrangement of these gears is where the motor's name comes from, as the gear system resembles the shape and motion of the planets orbiting the sun.
One of the main advantages of planetary gear motors is their compact size and high power density. The gears are arranged to produce large amounts of torque while keeping the motor small and lightweight. This makes planetary gear motors ideal for applications where space is limited but high torque is required, such as robotics, automation and industrial equipment.
Company Profile
A gear motor is a mechanical device consisting of an electric motor and a gearbox, differing from a DC motor for lower RPM and higher torque.
Micro Motors specializes in the manufacture of miniature gear motors, both with brushes and without brushes, and stepper motors.
A gear motor is a mechanical device consisting of an electric motor and a gearbox, differing from a DC motor for lower RPM and higher torque.
Micro Motors specializes in the manufacture of miniature gear motors, both with brushes and without brushes, and stepper motors.
we are DC gear motor manufacturer , my factory mainly produce and supply Micro DC planetary gear motor, Worm gear motor, Spur gear motor, Brushed motor , Brushless BLDC motor and so on , We have a professional engineering design team that can design motor performance parameters according to your product requirements.
1.Q: Are you trading company or manufacturer?
A: We’re factory. We specialize in micro dc motor and dc gear motor for more than 20 years.
2.Q: What is the payment term for a new customer?
A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer
also can pay with PayPal or TT etc.
3.Q: I can’t find a suitable motor on your website, can you customize the motor for me?
A: Yes, we can customize a suitable motor according to our customer’s requirements.
4.Q: Do you have certificates for the motors?
A: Yes, we have RoHS， CE, FCC, ISO, IATF16949 etc. If you have the other certificates requirement, we can apply it for you.
5.Q: How is your Quality Control?
A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire
quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test
Machine, and Noise tester etc.
