FT-20PGM180 plastic planetary gear motor
Products Description
SPECIFICATIONS
The specifications are for reference only. Contact us for customized data.
| Model number | Rated volt. | No load | Load | Stall | |||||
| Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| rpm | mA(max) | rpm | mA(max) | Kgf.cm | W | mA(min) | Kgf.cm | ||
| FT-22PGM1800067500-256K | 6V | 39 | 150 | 22 | 480 | 3 | 0.7 | 1200 | 10 |
| FT-22PGM1800068000-361K | 6V | 22 | 200 | 16 | 550 | 4 | 0.7 | 1100 | 13 |
| FT-22PGM1800067000-509K | 6V | 13 | 260 | 8.5 | 500 | 4 | 0.3 | 830 | 10.7 |
| FT-22PGM1800063000-2418K | 6V | 1.2 | 60 | 0.8 | 90 | 4 | 0.03 | 220 | 11 |
| FT-22PGM18000912000-107K | 9V | 112 | 260 | 82 | 800 | 2.2 | 1.9 | 1920 | 8.2 |
| FT-22PGM1800128000-4.75K | 12V | 1550 | 160 | 1130 | 420 | 0.1 | 1.2 | 800 | 0.3 |
| FT-22PGM1800128000-16K | 12V | 500 | 140 | 360 | 380 | 0.32 | 1.2 | 760 | 1 |
| FT-22PGM1800126000-19K | 12V | 315 | 80 | 244 | 200 | 0.23 | 0.6 | 430 | 0.9 |
| FT-22PGM1800128000-107K | 12V | 75 | 120 | 56 | 320 | 1.8 | 1.0 | 720 | 6.9 |
| FT-22PGM1800126000-256K | 12V | 24 | 70 | 19.5 | 180 | 1.7 | 0.3 | 450 | 7 |
| FT-22PGM1800128000-304K | 12V | 26 | 75 | 20.5 | 250 | 3.1 | 0.7 | 700 | 12.5 |
| FT-22PGM1800126000-369K | 12V | 18 | 65 | 14 | 180 | 2.5 | 0.4 | 400 | 9 |
| FT-22PGM1800128000-428K | 12V | 18 | 75 | 15 | 250 | 4.8 | 0.7 | 700 | 18.5 |
| FT-22PGM1800129000-509K | 12V | 17 | 200 | 12 | 350 | 5.5 | 0.7 | 580 | 18 |
| FT-22PGM1800128000-2418K | 12V | 3.3 | 120 | 2.4 | 400 | 10 | 0.2 | 692 | 40 |
| FT-22PGM1800247000-4K | 24V | 1750 | 60 | 1310 | 120 | 0.05 | 0.7 | 225 | 0.18 |
| FT-22PGM1800249000-64K | 24V | 140 | 200 | 105 | 350 | 1 | 1.1 | 470 | 4 |
| FT-22PGM1800249000-107K | 24V | 84 | 70 | 63 | 200 | 2 | 1.3 | 450 | 8 |
| FT-22PGM1800249000-256K | 24V | 35 | 80 | 25 | 210 | 4.2 | 1.1 | 450 | 15 |
| FT-22PGM1800249000-304K | 24V | 29 | 60 | 22 | 180 | 5 | 1.1 | 430 | 20 |
| Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in | |||||||||

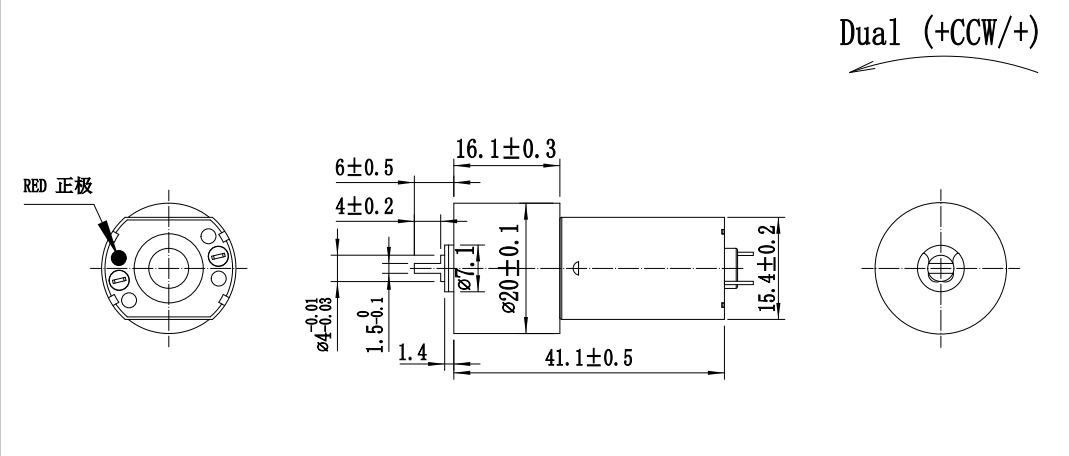

GEARBOX DATA
| Reduction stage | 1-stage | 2-stage | 3-stage | 4-stage | 5-stage |
| Reduction ratio | 4, 4.75 | 16, 19, 22.5 | 64, 76, 90, 107 | 256, 304, 361, 428, 509 | 1024, 1216, 1444, 1714, 2036, 2418 |
| Gearbox Length “L” mm | 13.5 | 16.9 | 20.5 | 24.1 | 27.6 |
| Max rated torque Kgf.cm | 2 | 3 | 4 | 5 | 6 |
| Max momentary torque Kgf.cm | 4 | 6 | 8 | 10 | 12 |
| Gearbox efficiency | 90% | 81% | 73% | 65% | 59% |
MOTOR DATA
| Motor model | Rated Volt. | No load | Load | Stall | |||||
| Current | Speed | Current | Speed | Torque | Power | Torque | Current | ||
| V | mA | rpm | mA | rpm | gf.cm | W | gf.cm | mA | |
| FT-180 | 3 | ≤260 | 5000 | ≤158 | 4000 | 19 | 0.8 | ≥80 | ≥790 |
| FT-180 | 5 | ≤75 | 12900 | ≤1510 | 11000 | 25.2 | 2.86 | ≥174 | ≥9100 |
| FT-180 | 12 | ≤35 | 8000 | ≤300 | 6200 | 26 | 1.69 | ≥100 | ≥770 |
| FT-180 | 24 | ≤36 | 9000 | ≤120 | 7600 | 15 | 1.19 | ≥60 | ≥470 |
● The 20PGM180 is a type of planetary gear motor. It has a diameter of 20mm and features a compact planetary gear system. The planetary gear system consists of multiple gears arranged in a specific configuration, with a central gear (sun gear) surrounded by smaller gears (planet gears) that rotate around it.
● The planetary gear motor is commonly used in various industries and applications due to its compact size, high torque, and precise motion control capabilities. It is often utilized in robotics, automation equipment, medical devices, and other applications requiring efficient and reliable torque transmission.The compact size of the 20PGM180 makes it suitable for applications with limited space. Its planetary gear system provides a higher gear reduction ratio in a small package, resulting in increased torque output and improved efficiency.
● The compact size of the 17mm planetary gear motor is ideal for applications where space is limited. Its planetary gear system provides high gear ratios in a small package, increasing torque output and improving efficiency. This makes it suitable for heavy-duty applications requiring precise control of speed and torque.
● Additionally, 17mm planetary gear motors typically feature low backlash, which means there is minimal play or movement between the gears, resulting in smooth, accurate movement. This property is highly valued in applications requiring precise positioning, such as CNC machine tools and robotic arms.
● The 17mm planetary gear motor is designed to operate in a wide voltage range, making it compatible with different power sources. It can be powered by direct current (DC) or alternating current (AC), depending on the specific application requirements. Overall, the 17mm planetary gear motor provides a compact yet powerful solution for a variety of industrial and commercial applications. Its combination of small size, high torque, precise motion control, and compatibility with different power sources make it a versatile choice for many engineering projects.
Application
DC Gear Motor Widely Used In Smart home appliances, Smart pet products ,Robots, Electronic locks, Public bicycle locks, Electric daily necessities, ATM machine , Electric glue guns, 3D printing pens, Office equipment, Massage health care, Beauty and fitness equipment, Medical equipment, Toys, Curling iron, Automotive automatic facilities.
Company Profile
A gear motor is a mechanical device consisting of an electric motor and a gearbox, differing from a DC motor for lower RPM and higher torque.
Micro Motors specializes in the manufacture of miniature gear motors, both with brushes and without brushes, and stepper motors.
A gear motor is a mechanical device consisting of an electric motor and a gearbox, differing from a DC motor for lower RPM and higher torque.
Micro Motors specializes in the manufacture of miniature gear motors, both with brushes and without brushes, and stepper motors.
we are DC gear motor manufacturer , my factory mainly produce and supply Micro DC planetary gear motor, Worm gear motor, Spur gear motor, Brushed motor , Brushless BLDC motor and so on , We have a professional engineering design team that can design motor performance parameters according to your product requirements.
