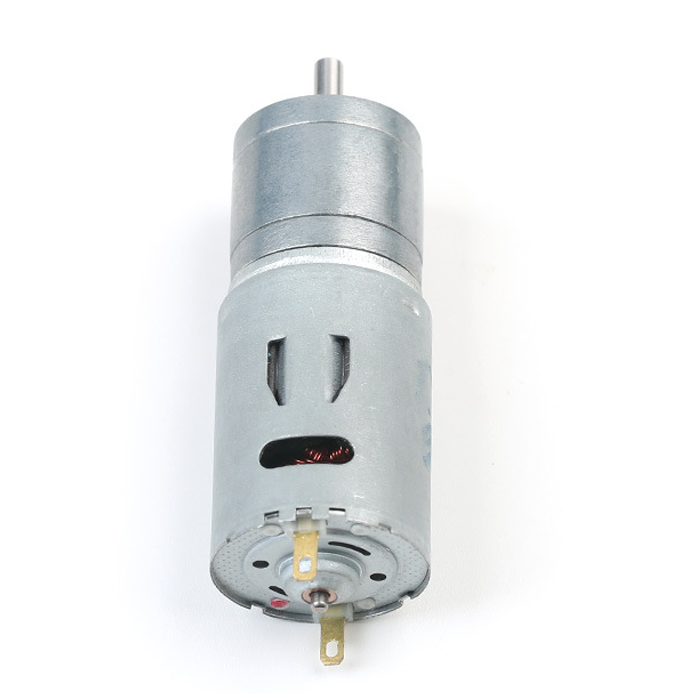

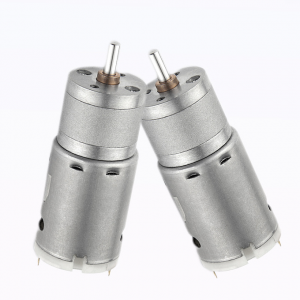

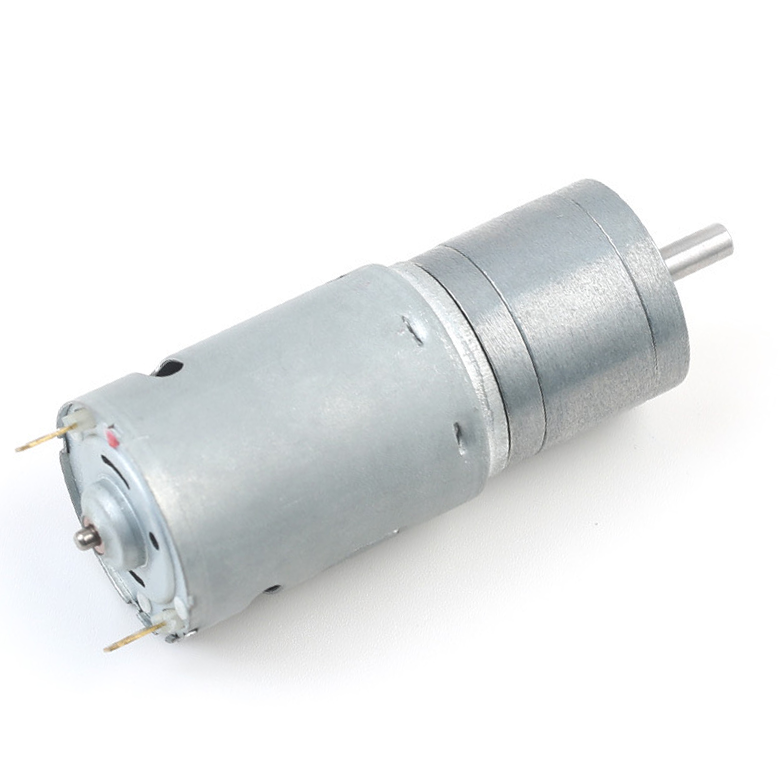

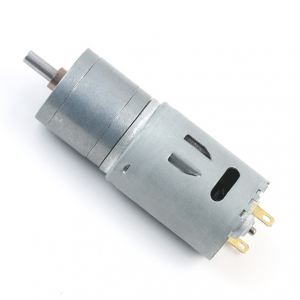

FT-25RGM385 Micro DC Gear Motor 12V 24V High Torque 25mm Gear Motor
Dimensions(MM)
Gearbox Data:
| Number of gear | 4 | 5 | 6 | 7 | 8 | |||||||
| Reduction Ratio（K） | 20.4、23 25、28 |
45、50、55 62、68 |
99、110、122 136、151、167 |
217、241、268、298 331、368、409 |
478、531、590、656 729、810、900、1000 |
|||||||
| Gearbox length(mm) | 19 | 21 | 23 | 25 | 27 | |||||||
| Rated Torque（kg·cm） | 0.5 | 1 | 1.7 | 2 | 2 | |||||||
| Stall torque （kg·cm） | 1.5 | 3 | 4 | 6 | 6 | |||||||
| Gearbxo Efficiency（%） | 65% | 59% | 53% | 48% | 43% | |||||||
Motor Data:
| Motor Model |
No Load | Load | Stall | |||||||||
| Rated Voltage | Speed | Current | Speed | Current | Output | Torque | Current | Torque | ||||
| V | （rpm） | （mA） | （rpm） | （mA） | (w) | （g·cm） | （mA） | （g·cm) | ||||
| FT-380/385 | 12 | 3000 | 80 | 2300 | 300 | 3.6 | 50 | 520 | 190 | |||
| FT-380/385 | 12 | 6000 | 135 | 4200 | 780 | 9.36 | 80 | 1360 | 250 | |||
| FT-380/385 | 24 | 3000 | 50 | 2200 | 150 | 3.6 | 38 | 250 | 110 | |||
| FT-380/385 | 24 | 9000 | 200 | 7200 | 500 | 12 | 110 | 2600 | 560 | |||
1、 The above motor parameters for reference, please refer to the actual sample.
2、 Motor parameters and output shaft size can be customized.
3、 Output torque = motor torque * reduction ratio * gear efficiency.
4、 Output Speed = motor speed/reduction ratio.
Company Profile
A gear motor is a mechanical device consisting of an electric motor and a gearbox, differing from a DC motor for lower RPM and higher torque.
Micro Motors specializes in the manufacture of miniature gear motors, both with brushes and without brushes, and stepper motors.
A gear motor is a mechanical device consisting of an electric motor and a gearbox, differing from a DC motor for lower RPM and higher torque.
Micro Motors specializes in the manufacture of miniature gear motors, both with brushes and without brushes, and stepper motors.
we are DC gear motor manufacturer , my factory mainly produce and supply Micro DC planetary gear motor, Worm gear motor, Spur gear motor, Brushed motor , Brushless BLDC motor and so on , We have a professional engineering design team that can design motor performance parameters according to your product requirements.
1.Q: Are you trading company or manufacturer?
A: We’re factory. We specialize in micro dc motor and dc gear motor for more than 20 years.
2.Q: What is the payment term for a new customer?
A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer
also can pay with PayPal or TT etc.
3.Q: I can’t find a suitable motor on your website, can you customize the motor for me?
A: Yes, we can customize a suitable motor according to our customer’s requirements.
4.Q: Do you have certificates for the motors?
A: Yes, we have RoHS， CE, FCC, ISO, IATF16949 etc. If you have the other certificates requirement, we can apply it for you.
5.Q: How is your Quality Control?
A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire
quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test
Machine, and Noise tester etc.
