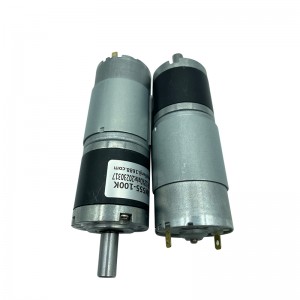

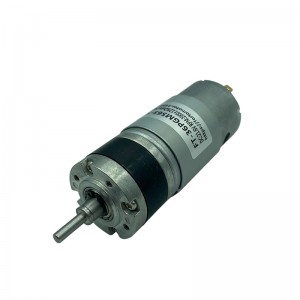

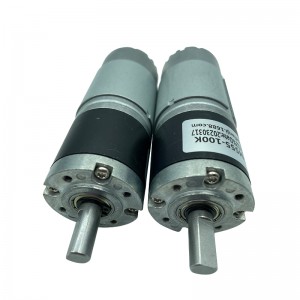

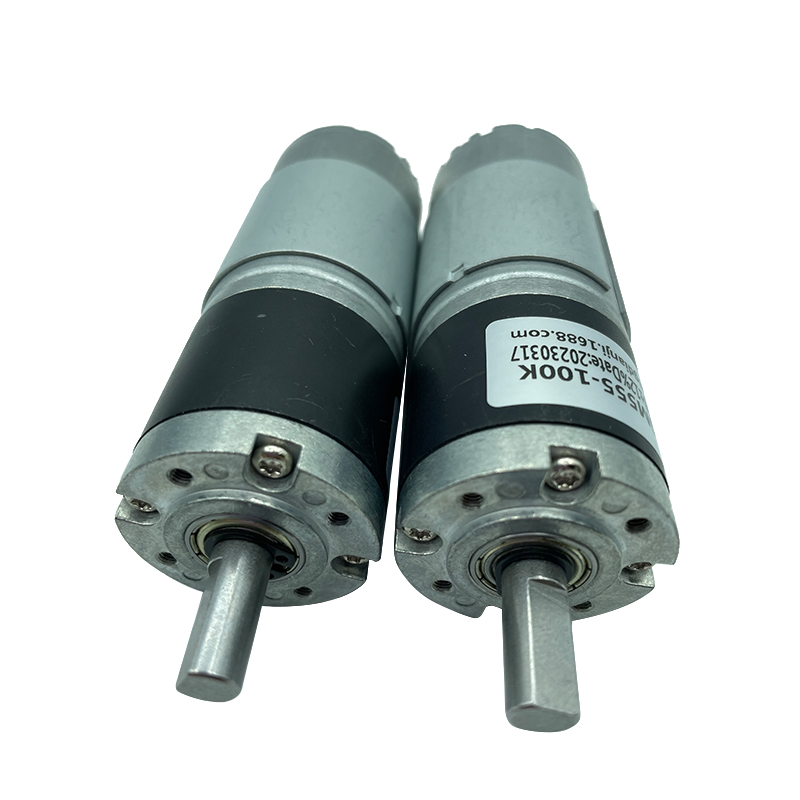

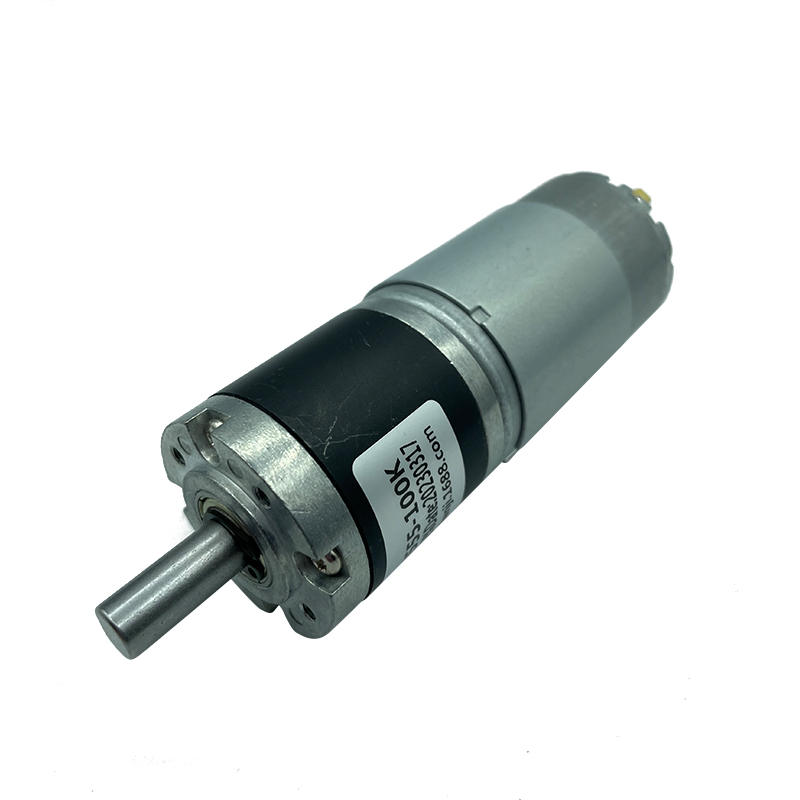

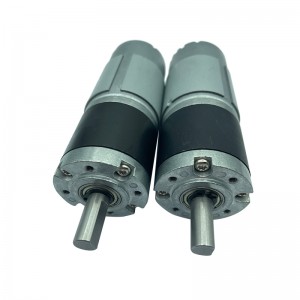

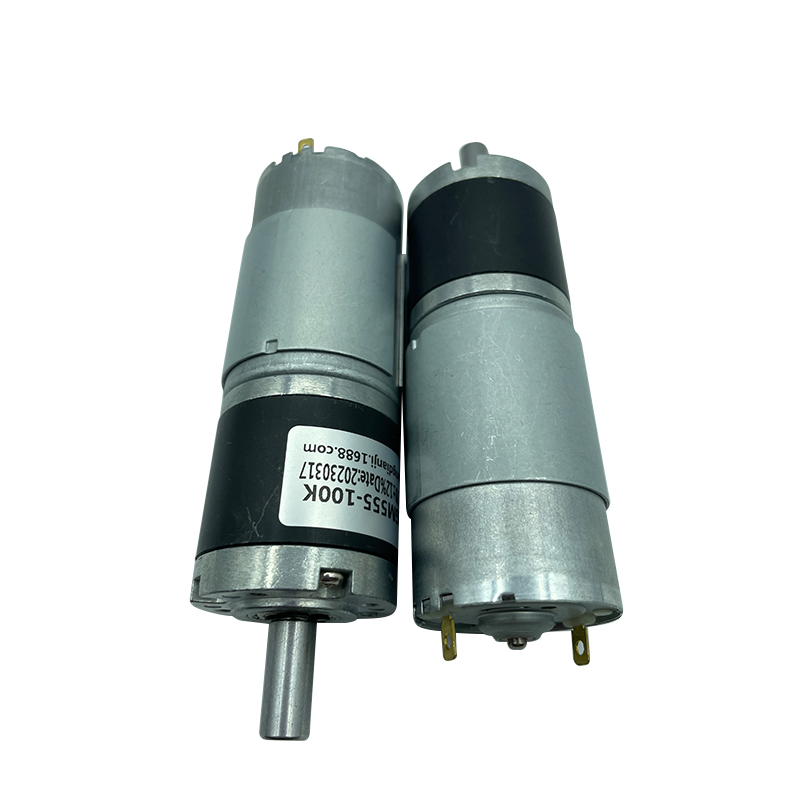

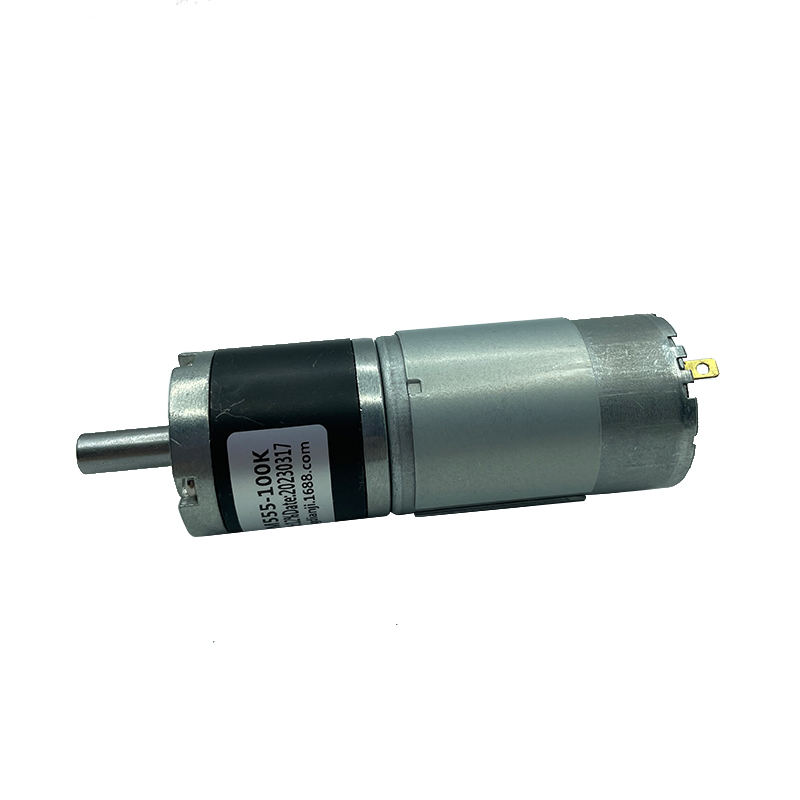

FT-36PGM555 Dc Brush Planetary Gear Motor With 555 Motor
Product Advantages
SPECIFICATIONS
The specifications aaccept customization
| Model number | Rated volt. | No load | Load | Stall | |||||
| Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| rpm | mA(max) | rpm | mA(max) | Kgf.cm | W | mA(min) | Kgf.cm | ||
| FT-36PGM5550126000-5.2K | 12V | 1153 | 650 | 960 | 3000 | 1.2 | 11.8 | 10620 | 6.3 |
| FT-36PGM5550128000-14K | 12V | 571 | 900 | 465 | 3500 | 4 | 19.1 | 11550 | 19 |
| FT-36PGM5550126000-27K | 12V | 223 | 400 | 175 | 1600 | 4.2 | 7.5 | 5350 | 20 |
| FT-36PGM5550126000-51K | 12V | 117 | 680 | 85 | 2680 | 13 | 11.3 | 8350 | 60 |
| FT-36PGM5550126000-71K | 12V | 84 | 500 | 70 | 2400 | 14 | 10.1 | 8380 | 71 |
| FT-36PGM5550126000-99.5K | 12V | 60 | 450 | 48 | 2000 | 16 | 7.9 | 6300 | 78 |
| FT-36PGM5550124500-264K | 12V | 17 | 400 | 12 | 1500 | 28 | 3.4 | 2800 | 104 |
| FT-36PGM5550126000-721K | 12V | 8 | 400 | 6 | 3200 | 160 | 9.9 | 9000 | 630 |
| FT-36PGM5550246000-3.7K | 24V | 1621 | 500 | 1216 | 2000 | 1.5 | 18.7 | 8000 | 7.5 |
| FT-36PGM5550246000-5.2K | 24V | 1153 | 400 | 1016 | 1600 | 1.25 | 13 | 5380 | 8 |
| FT-36PGM5550124500-27K | 24V | 167 | 550 | 147 | 2000 | 6 | 9.1 | 6500 | 30 |
| FT-36PGM5550244500-71K | 24V | 63 | 220 | 48 | 1100 | 10 | 4.9 | 3700 | 50 |
| FT-36PGM5550243000-100K | 24V | 30 | 150 | 22 | 550 | 12 | 2.7 | 1180 | 55 |
| FT-36PGM5550246000-189K | 24V | 31 | 360 | 26 | 1800 | 41 | 10.9 | 4730 | 204 |
| FT-36PGM5550244500-264K | 24V | 17 | 220 | 14 | 1000 | 43 | 6.2 | 2700 | 221 |
| FT-36PGM5550244500-369K | 24V | 12 | 250 | 9 | 850 | 70 | 6.5 | 2500 | 280 |
| FT-36PGM5550246000-1367K | 24V | 4.3 | 450 | 3.2 | 2000 | 250 | 8.2 | 6500 | 1200 |
| Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in | |||||||||
The DC motor in our Flat DC Gear Motors serves as the powerhouse, delivering the required power to your applications. Whether it's an automated conveyor system that needs to move heavy loads or a robotic arm that requires precise movements, our Flat DC Gear Motors have got you covered.
1、High torque
2、Compact structure
3、High precision
4、High efficiency
5、Low noise
6、Reliability
7、Diversified choices
Generally speaking, planetary geared motors have the characteristics of high torque, compact structure, high precision, high efficiency, low noise and reliability, and are suitable for various mechanical transmission and motion control fields.
Product Video
Application
DC Gear Motor Widely Used In Smart home appliances, Smart pet products ,Robots, Electronic locks, Public bicycle locks, Electric daily necessities, ATM machine , Electric glue guns, 3D printing pens, Office equipment, Massage health care, Beauty and fitness equipment, Medical equipment, Toys, Curling iron, Automotive automatic facilities.
Company Profile
About This Item
Our motors are designed to address the limitations and challenges of traditional DC motors, delivering superior performance and durability.
Due to their size and the use of metal brush commutators, the speed range of conventional DC motors is typically limited to 2 to 2000 rpm. However, faster speeds shorten motor life, leading to frequent replacements and increased maintenance costs. With our planetary gearmotors, these limitations are a thing of the past.
One of the outstanding features of our motors is the use of a low-noise DC motor with an internal ring varistor. This clever addition effectively reduces electromagnetic interference to the environment, ensuring quiet, efficient operation. Whether you need a motor for a residential or commercial application, our planetary gear motors provide an unparalleled user experience.
A gear motor is a mechanical device consisting of an electric motor and a gearbox, differing from a DC motor for lower RPM and higher torque.
Micro Motors specializes in the manufacture of miniature gear motors, both with brushes and without brushes, and stepper motors.
A gear motor is a mechanical device consisting of an electric motor and a gearbox, differing from a DC motor for lower RPM and higher torque.
Micro Motors specializes in the manufacture of miniature gear motors, both with brushes and without brushes, and stepper motors.
we are DC gear motor manufacturer , my factory mainly produce and supply Micro DC planetary gear motor, Worm gear motor, Spur gear motor, Brushed motor , Brushless BLDC motor and so on , We have a professional engineering design team that can design motor performance parameters according to your product requirements.
1.Q: Are you trading company or manufacturer?
A: We’re factory. We specialize in micro dc motor and dc gear motor for more than 20 years.
2.Q: What is the payment term for a new customer?
A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer
also can pay with PayPal or TT etc.
3.Q: I can’t find a suitable motor on your website, can you customize the motor for me?
A: Yes, we can customize a suitable motor according to our customer’s requirements.
4.Q: Do you have certificates for the motors?
A: Yes, we have RoHS， CE, FCC, ISO, IATF16949 etc. If you have the other certificates requirement, we can apply it for you.
5.Q: How is your Quality Control?
A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire
quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test
Machine, and Noise tester etc.
