FT-37RGM31ZY 37mm round spur gearmotor 31ZY tubular motors

FT-37RGM31ZY 37mm round spur gearmotor 31ZY tubular motors Featured Image
  • FT-37RGM31ZY 37mm round spur gearmotor 31ZY tubular motors
  • FT-37RGM31ZY 37mm round spur gearmotor 31ZY tubular motors
  • FT-37RGM31ZY 37mm round spur gearmotor 31ZY tubular motors
  • FT-37RGM31ZY 37mm round spur gearmotor 31ZY tubular motors
  • FT-37RGM31ZY 37mm round spur gearmotor 31ZY tubular motors
  • FT-37RGM31ZY 37mm round spur gearmotor 31ZY tubular motors

short description:

Adding a gearbox to a brushless DC motor allows for torque multiplication and speed reduction.

SPECIFICATIONS

The specifications are for reference only. Contact us for customized data.

Model number Rated volt. No load Load Stall
Speed Current Speed Current Torque Power Current Torque
rpm mA(max) rpm mA(max) Kgf.cm W mA(min) Kgf.cm
FT-32RGM38500610500-13K 6V 807 1000 601 3600 0.91 5.61 6800 3.3
FT-32RGM3850129000-83K 12V 110 360 90 1300 2.7 2.49 3000 12
FT-32RGM38502411000-61K 24V 180 300 170 780 2 3.49 6500 20
FT-32RGM3850247000-61K 24V 115 160 104 280 1.5 1.60 1800 11.5
FT-32RGM38502411000-83K 24V 134 300 102 850 5 5.23 4000 23
Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in    1 mm≈0.039 in

GEARBOX DATA

Reduction stage 2-stage 3-stage 4-stage 5-stage 6-stage 7-stage
Reduction ratio 6 13, 15 28, 32, 38 61, 71, 83, 96 135, 156, 182, 211, 245 296, 344, 400, 464, 540, 627
Gearbox length (L) mm 17.5 20 22.5 25 27.5 30
Max rated torque Kgf.cm 2 2 2.5 4 6 8
Max momentary torque Kgf.cm 3 3 4 6 10 12
Gearbox efficiency 81% 73% 65% 59% 53% 48%

MOTOR DATA

Motor model Rated Volt. No load Load Stall
Current Speed Current Speed Torque Power Torque Current
V mA rpm mA rpm gf.cm W gf.cm mA
FT-385 6 ≤400 10000 ≤2500 8400 80 7.04 ≥430 ≥8800
FT-385 12 ≤70 3000 ≤260 1950 50 1.02 ≥160 ≥520
FT-385 12 ≤90 4500 ≤460 3500 50 1.83 ≥230 ≥1300
FT-385 24 ≤80 3300 ≤250 2750 74 2.13 ≥290 ≥440
FT-385 24 ≤120 7400 ≤370 6400 60 4.02 ≥420 ≥1580

  • Voltage: Custom acceptable (3V~24V)
  • Output Speed (RPM): Custom acceptable (1rpm~1500rpm)
  • FOB Price: US $0.5 - 15/ Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 2000000Piece/Pieces per Month
  • Certification: RoHS, CE, ISO9001, FCC, IATF16949
  • Rotating Direction: CW/CCW
  • Gearbox Case Material: Zinc Die Cast, 100% metal
  • Shaft diameter: standard size/Regular dimension/Custom acceptable
  • Operating Temperture: -40°c~ +80°c
  • Motor type: Brushed motor, Brushless motor, DC gear motor, Geared Motor, Micro DC motor
  • Sample order: Acceptable
  • Is it a factory?: Production at the source factory
  • Gear Motor Model: FT-37RGM31ZY
  • Gear Box Diameter: 37mm
  • Voltage: 2~24V, Customization accepted
  • Speed: 2rpm~2000rpm , Customization accepted
  • Torque: Customization accepted
  • :

    • Product Detail

    Product Tags

    Features:

    Adding a gearbox to a brushless DC motor allows for torque multiplication and speed reduction.

    SPECIFICATIONS

    The specifications are for reference only. Contact us for customized data.

    Model number Rated volt. No load Load Stall
    Speed Current Speed Current Torque Power Current Torque
    rpm mA(max) rpm mA(max) Kgf.cm W mA(min) Kgf.cm
    FT-32RGM38500610500-13K 6V 807 1000 601 3600 0.91 5.61 6800 3.3
    FT-32RGM3850129000-83K 12V 110 360 90 1300 2.7 2.49 3000 12
    FT-32RGM38502411000-61K 24V 180 300 170 780 2 3.49 6500 20
    FT-32RGM3850247000-61K 24V 115 160 104 280 1.5 1.60 1800 11.5
    FT-32RGM38502411000-83K 24V 134 300 102 850 5 5.23 4000 23
    Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in    1 mm≈0.039 in

    GEARBOX DATA

    Reduction stage 2-stage 3-stage 4-stage 5-stage 6-stage 7-stage
    Reduction ratio 6 13, 15 28, 32, 38 61, 71, 83, 96 135, 156, 182, 211, 245 296, 344, 400, 464, 540, 627
    Gearbox length (L) mm 17.5 20 22.5 25 27.5 30
    Max rated torque Kgf.cm 2 2 2.5 4 6 8
    Max momentary torque Kgf.cm 3 3 4 6 10 12
    Gearbox efficiency 81% 73% 65% 59% 53% 48%

    MOTOR DATA

    Motor model Rated Volt. No load Load Stall
    Current Speed Current Speed Torque Power Torque Current
    V mA rpm mA rpm gf.cm W gf.cm mA
    FT-385 6 ≤400 10000 ≤2500 8400 80 7.04 ≥430 ≥8800
    FT-385 12 ≤70 3000 ≤260 1950 50 1.02 ≥160 ≥520
    FT-385 12 ≤90 4500 ≤460 3500 50 1.83 ≥230 ≥1300
    FT-385 24 ≤80 3300 ≤250 2750 74 2.13 ≥290 ≥440
    FT-385 24 ≤120 7400 ≤370 6400 60 4.02 ≥420 ≥1580

    This combination is often used in applications that require high torque and precise control, such as robotics, automation and electric vehicles. The choice of brushless DC geared motor depends on the specific torque and speed requirements of the application. Factors to consider when selecting a motor include gear ratio, power rating, weight, size, and operating voltage and current.

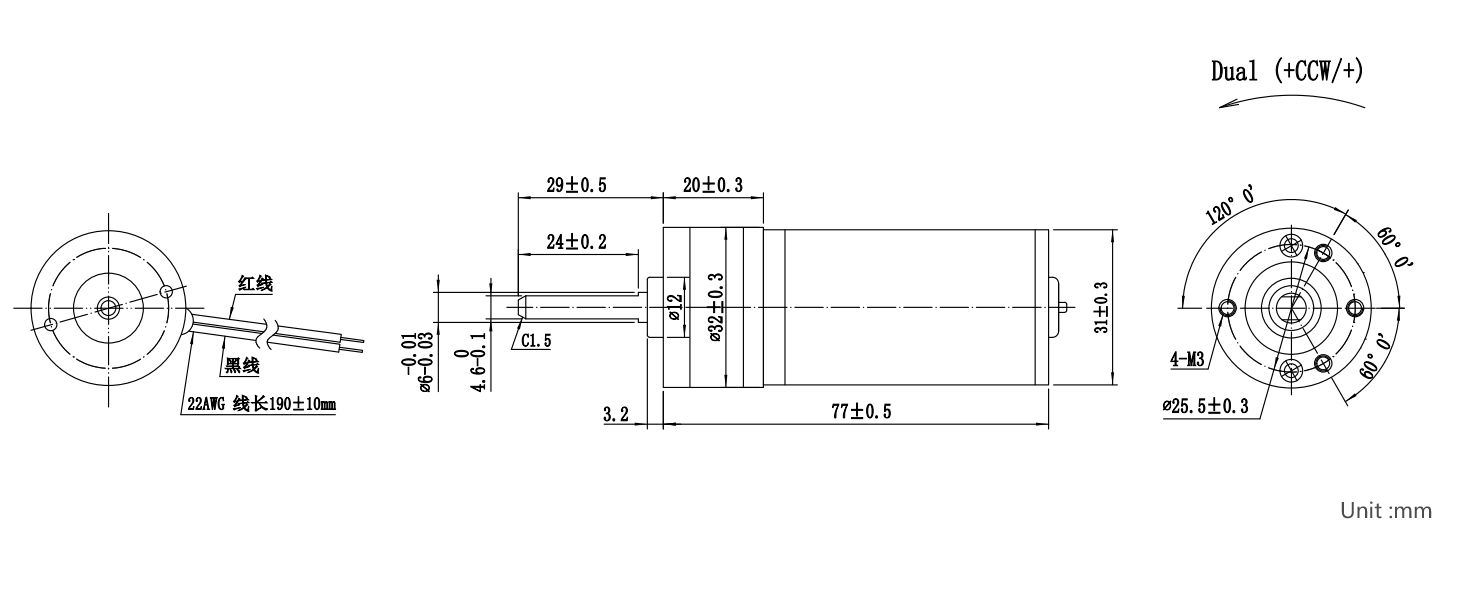

    DRAWING(MM)

    FT-37RGM31ZY

    Application

    Round Spur gear motor has the characteristics of small size, light weight and high transmission efficiency, and is widely used in various micro mechanical equipment. Here are some common application scenarios:

    Smart toys: Miniature DC spur gear motors can drive various actions of smart toys, such as turning, swinging, pushing, etc., bringing more diverse and interesting functions to toys.
    Robots: The miniaturization and high efficiency of miniature DC spur gear motors make them an important part of the robotics field. It can be used for robot joint actuation, hand motion and walking, etc.
