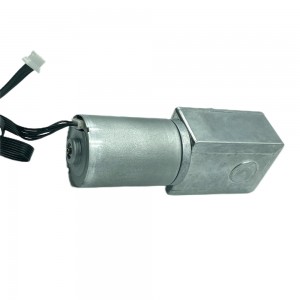

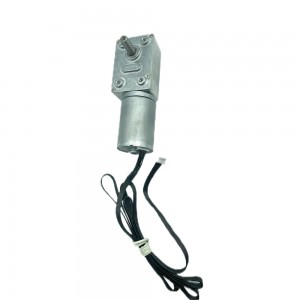

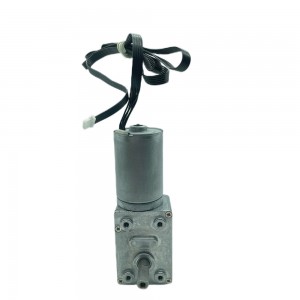

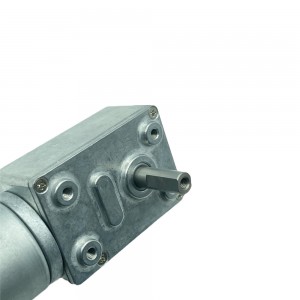

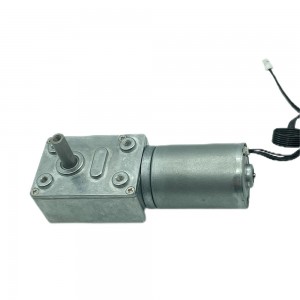

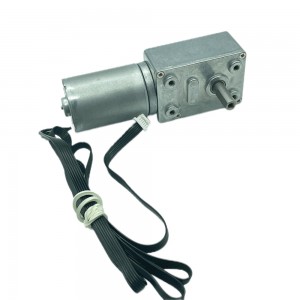

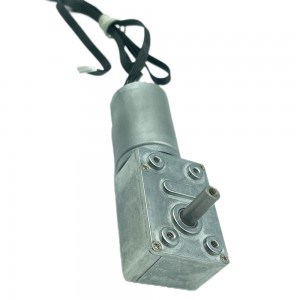

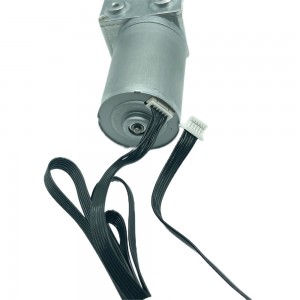

FT-46SGM2838 12 volt gear reduction motor worm drive dc brushless motor
Application
| Motor Data: | |||||||||
|
Motor Model |
No Load |
Load |
Stall |
||||||
|
Rated Voltage |
Speed |
Current |
Speed |
Current |
Output |
Torque |
Current |
Torque |
|
|
V |
（rpm） |
（mA） |
（rpm） |
（mA） |
(w) |
（g·cm） |
（mA） |
（g·cm) | |
|
FT-370 |
6 |
5000 |
45 |
4200 |
240 |
0.88 |
20 |
1100 |
112 |
|
FT-370 |
12 |
12000 |
90 |
10300 |
520 |
2.96 |
28 |
2500 |
177 |
|
FT-370 |
24 |
6000 |
21 |
5100 |
110 |
1.12 |
21 |
440 |
126 |
|
FT-370 |
24 |
9000 |
43 |
7800 |
210 |
2.2 |
27 |
950 |
182 |
| 1、 The above motor parameters for reference, please refer to the actual sample. 2、 Motor parameters and output shaft size can be customized. 3、 Output torque = motor torque * reduction ratio * gear efficiency. 4、 Output Speed = motor speed/reduction ratio. |
|||||||||
Worm gear motor is a commonly used transmission device, mainly composed of worm gear, worm and motor. It converts the high-speed rotation of the motor into low-speed high-torque output through the principle of worm gear transmission.
Worm gear motors have the following characteristics:
1、High reduction ratio: Worm gear transmission can achieve a large reduction ratio, usually in the range of 36:1 to 1320:1, which can meet the needs of different applications.
2、Large torque output: Worm gear transmission has high force transmission capacity and can provide large torque output, which is suitable for occasions carrying large loads.
3、Compact structure: Worm gear motors are compact in structure and small in size, suitable for occasions with limited space and easy to install.
4、Wide application: Worm gear motors are widely used in mechanical equipment, engineering machinery, conveying equipment, textile machinery, food machinery, metallurgical machinery, petrochemical machinery and other fields.
5、 Low noise: The worm gear motor adopts precision manufacturing process and noise control measures, which can reduce noise and vibration and make the working environment quieter.
6、High transmission efficiency: The transmission efficiency of worm gear transmission is usually between 85% and 95%, which can achieve high energy conversion efficiency.
In a word, the worm gear motor has the characteristics of high reduction ratio, high torque output, compact structure, wide application, low noise and high transmission efficiency.
DC Worm Gear Motor Widely Used In Smart home appliances, Smart pet products ,Robots, Electronic locks, Vending machines, coin sorting robots, packaging machines、Public bicycle locks, Electric daily necessities, ATM machine , Electric glue guns, 3D printing pens, Office equipment, Massage health care, Beauty and fitness equipment, Medical equipment, Toys, Curling iron, Automotive automatic facilities .
Company Profile
A gear motor is a mechanical device consisting of an electric motor and a gearbox, differing from a DC motor for lower RPM and higher torque.
Micro Motors specializes in the manufacture of miniature gear motors, both with brushes and without brushes, and stepper motors.
A gear motor is a mechanical device consisting of an electric motor and a gearbox, differing from a DC motor for lower RPM and higher torque.
Micro Motors specializes in the manufacture of miniature gear motors, both with brushes and without brushes, and stepper motors.
we are DC gear motor manufacturer , my factory mainly produce and supply Micro DC planetary gear motor, Worm gear motor, Spur gear motor, Brushed motor , Brushless BLDC motor and so on , We have a professional engineering design team that can design motor performance parameters according to your product requirements.
