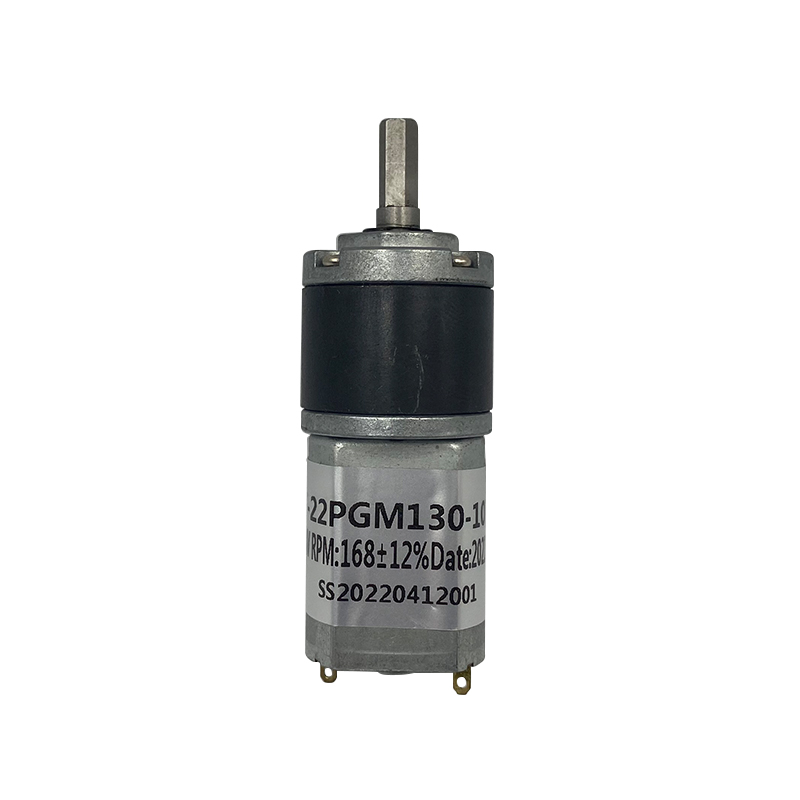

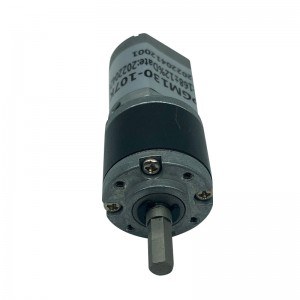

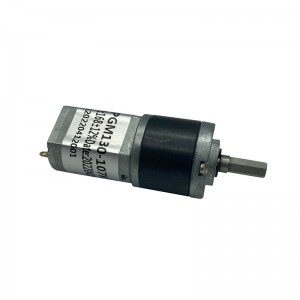

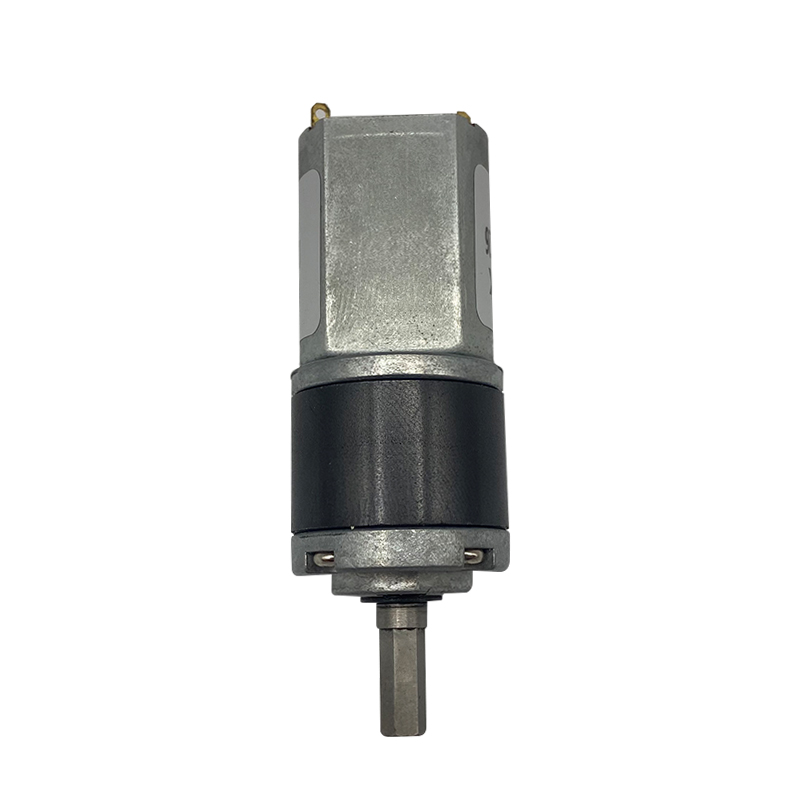

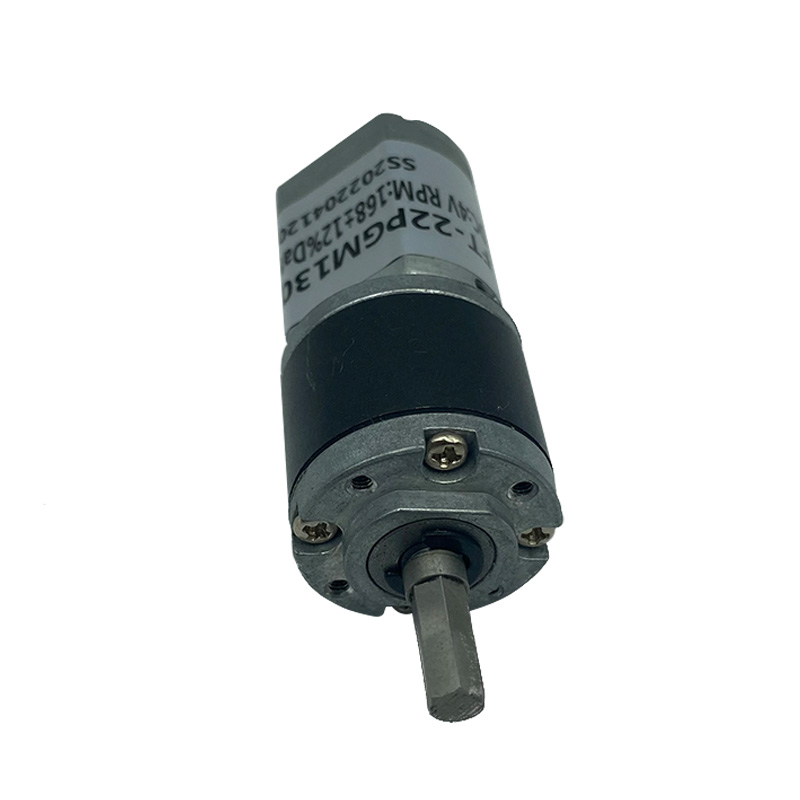

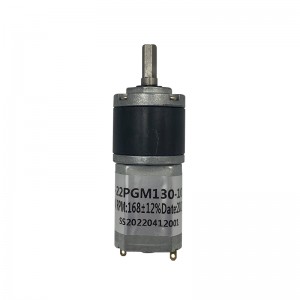

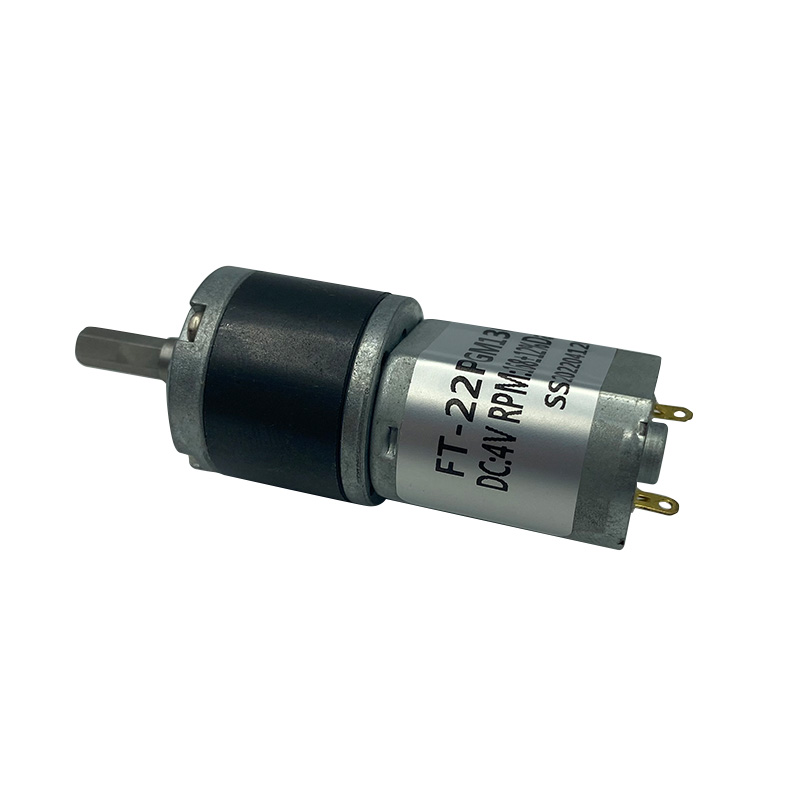

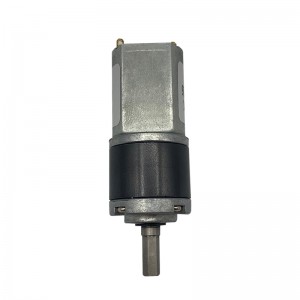

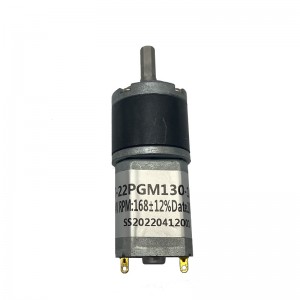

FT-22PGM130 Planetary gear motor Dc Motor Customized Electric Dc Gear Motor

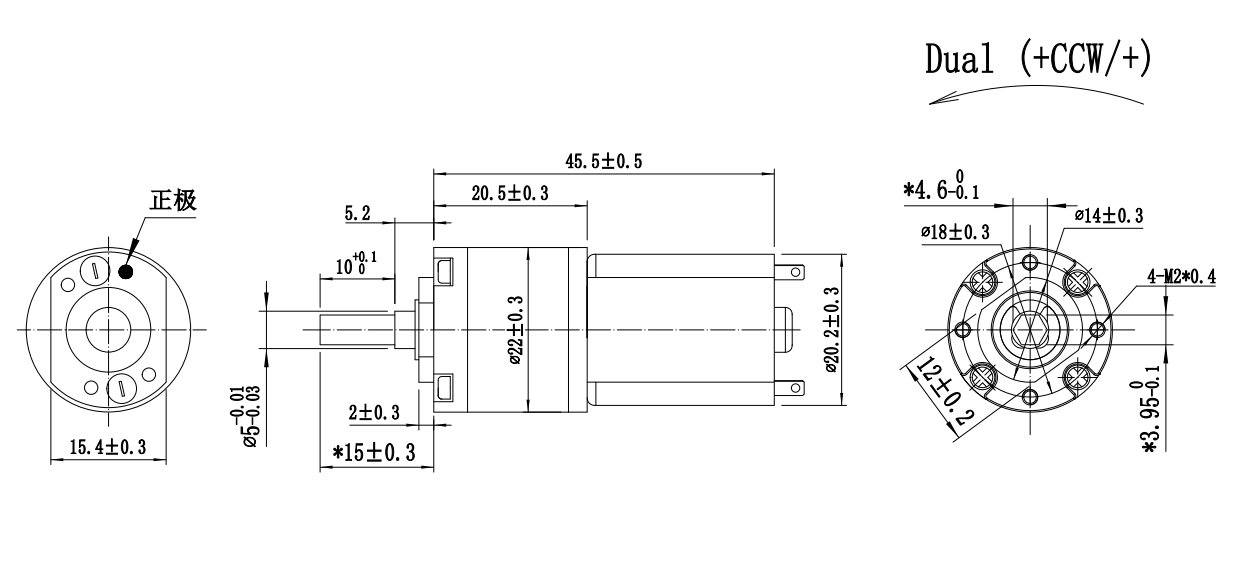

Products Description
SPECIFICATIONS
The specifications are for reference only. Contact us for customized data.
| Model number | Rated volt. | No load | Load | Stall | |||||
| Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| rpm | mA(max) | rpm | mA(max) | Kgf.cm | W | mA(min) | Kgf.cm | ||
| FT-22PGM1800067500-256K | 6V | 39 | 150 | 22 | 480 | 3 | 0.7 | 1200 | 10 |
| FT-22PGM1800068000-361K | 6V | 22 | 200 | 16 | 550 | 4 | 0.7 | 1100 | 13 |
| FT-22PGM1800067000-509K | 6V | 13 | 260 | 8.5 | 500 | 4 | 0.3 | 830 | 10.7 |
| FT-22PGM1800063000-2418K | 6V | 1.2 | 60 | 0.8 | 90 | 4 | 0.03 | 220 | 11 |
| FT-22PGM18000912000-107K | 9V | 112 | 260 | 82 | 800 | 2.2 | 1.9 | 1920 | 8.2 |
| FT-22PGM1800128000-4.75K | 12V | 1550 | 160 | 1130 | 420 | 0.1 | 1.2 | 800 | 0.3 |
| FT-22PGM1800128000-16K | 12V | 500 | 140 | 360 | 380 | 0.32 | 1.2 | 760 | 1 |
| FT-22PGM1800126000-19K | 12V | 315 | 80 | 244 | 200 | 0.23 | 0.6 | 430 | 0.9 |
| FT-22PGM1800128000-107K | 12V | 75 | 120 | 56 | 320 | 1.8 | 1.0 | 720 | 6.9 |
| FT-22PGM1800126000-256K | 12V | 24 | 70 | 19.5 | 180 | 1.7 | 0.3 | 450 | 7 |
| FT-22PGM1800128000-304K | 12V | 26 | 75 | 20.5 | 250 | 3.1 | 0.7 | 700 | 12.5 |
| FT-22PGM1800126000-369K | 12V | 18 | 65 | 14 | 180 | 2.5 | 0.4 | 400 | 9 |
| FT-22PGM1800128000-428K | 12V | 18 | 75 | 15 | 250 | 4.8 | 0.7 | 700 | 18.5 |
| FT-22PGM1800129000-509K | 12V | 17 | 200 | 12 | 350 | 5.5 | 0.7 | 580 | 18 |
| FT-22PGM1800128000-2418K | 12V | 3.3 | 120 | 2.4 | 400 | 10 | 0.2 | 692 | 40 |
| FT-22PGM1800247000-4K | 24V | 1750 | 60 | 1310 | 120 | 0.05 | 0.7 | 225 | 0.18 |
| FT-22PGM1800249000-64K | 24V | 140 | 200 | 105 | 350 | 1 | 1.1 | 470 | 4 |
| FT-22PGM1800249000-107K | 24V | 84 | 70 | 63 | 200 | 2 | 1.3 | 450 | 8 |
| FT-22PGM1800249000-256K | 24V | 35 | 80 | 25 | 210 | 4.2 | 1.1 | 450 | 15 |
| FT-22PGM1800249000-304K | 24V | 29 | 60 | 22 | 180 | 5 | 1.1 | 430 | 20 |
| Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in | |||||||||
GEARBOX DATA
| Reduction stage | 1-stage | 2-stage | 3-stage | 4-stage | 5-stage |
| Reduction ratio | 4, 4.75 | 16, 19, 22.5 | 64, 76, 90, 107 | 256, 304, 361, 428, 509 | 1024, 1216, 1444, 1714, 2036, 2418 |
| Gearbox Length “L” mm | 13.5 | 16.9 | 20.5 | 24.1 | 27.6 |
| Max rated torque Kgf.cm | 2 | 3 | 4 | 5 | 6 |
| Max momentary torque Kgf.cm | 4 | 6 | 8 | 10 | 12 |
| Gearbox efficiency | 90% | 81% | 73% | 65% | 59% |
MOTOR DATA
| Motor model | Rated Volt. | No load | Load | Stall | |||||
| Current | Speed | Current | Speed | Torque | Power | Torque | Current | ||
| V | mA | rpm | mA | rpm | gf.cm | W | gf.cm | mA | |
| FT-180 | 3 | ≤260 | 5000 | ≤158 | 4000 | 19 | 0.8 | ≥80 | ≥790 |
| FT-180 | 5 | ≤75 | 12900 | ≤1510 | 11000 | 25.2 | 2.86 | ≥174 | ≥9100 |
| FT-180 | 12 | ≤35 | 8000 | ≤300 | 6200 | 26 | 1.69 | ≥100 | ≥770 |
| FT-180 | 24 | ≤36 | 9000 | ≤120 | 7600 | 15 | 1.19 | ≥60 | ≥470 |
Planetary geared motors have the following characteristics:
1、High torque: The planetary geared motor achieves a high speed ratio and a reduction ratio through a planetary gear mechanism, so it can provide a high output torque and is suitable for applications that require high torque.
2、Compact structure: The planetary geared motor has a compact structure and small size, which can provide better adaptability and installation flexibility for limited spaces.
3、High precision: Through a customized gear transmission system, planetary geared motors can provide relatively high precision and position control capabilities. This makes it useful in applications requiring precise motion control.
4、High efficiency: The gear mechanism design of the planetary gear motor has high transmission efficiency, so it can convert electrical energy into greater mechanical output power and improve overall efficiency.
5、Low noise: The planetary gear motor adopts a precise gear transmission system, which reduces the generation of noise and vibration, and provides a relatively stable and quiet working environment.
6、Reliability: The planetary geared motor adopts durable materials and structures, has a long service life and high reliability, and reduces the frequency of maintenance and replacement.
7、Diversified choices: Planetary geared motors can be selected according to different application requirements in different specifications and models, including different reduction ratios, output torques and motor powers.
Generally speaking, planetary geared motors have the characteristics of high torque, compact structure, high precision, high efficiency, low noise and reliability, and are suitable for various mechanical transmission and motion control fields.
