FT-22PGM180 Planetary Gear Motor

short description:

Technical Parameters

These gear systems feature a compact and lightweight design, making them ideal for a variety of applications.

Gear Motor Model : FT-22pgm180 Planetary Gear Motor

Gear Box Diameter : 22mm

Voltage : 2~24V

Speed : 2rpm~2000rpm

Torque: Customization Accepted

Send email to us

Product Detail

Product Tags

Products Description

Planetary geared motors have the following characteristics:

We are proud to present the exceptional micro dc gear motor - a versatile and reliable solution designed to cater to a wide array of applications. With its remarkable performance and adaptability, this motor is set to revolutionize the way we interact with smart home appliances, smart pet products, robots, electronic locks, public bicycle locks, and much more. Let us delve deeper into the features and benefits of this remarkable innovation.

SPECIFICATIONS

The specifications are for reference only. Contact us for customized data.

Model number	Rated volt.	No load		Load				Stall
		Speed	Current	Speed	Current	Torque	Power	Current	Torque
		rpm	mA(max)	rpm	mA(max)	Kgf.cm	W	mA(min)	Kgf.cm
FT-22PGM1800067500-256K	6V	39	150	22	480	3	0.7	1200	10
FT-22PGM1800068000-361K	6V	22	200	16	550	4	0.7	1100	13
FT-22PGM1800067000-509K	6V	13	260	8.5	500	4	0.3	830	10.7
FT-22PGM1800063000-2418K	6V	1.2	60	0.8	90	4	0.03	220	11
FT-22PGM18000912000-107K	9V	112	260	82	800	2.2	1.9	1920	8.2
FT-22PGM1800128000-4.75K	12V	1550	160	1130	420	0.1	1.2	800	0.3
FT-22PGM1800128000-16K	12V	500	140	360	380	0.32	1.2	760	1
FT-22PGM1800126000-19K	12V	315	80	244	200	0.23	0.6	430	0.9
FT-22PGM1800128000-107K	12V	75	120	56	320	1.8	1.0	720	6.9
FT-22PGM1800126000-256K	12V	24	70	19.5	180	1.7	0.3	450	7
FT-22PGM1800128000-304K	12V	26	75	20.5	250	3.1	0.7	700	12.5
FT-22PGM1800126000-369K	12V	18	65	14	180	2.5	0.4	400	9
FT-22PGM1800128000-428K	12V	18	75	15	250	4.8	0.7	700	18.5
FT-22PGM1800129000-509K	12V	17	200	12	350	5.5	0.7	580	18
FT-22PGM1800128000-2418K	12V	3.3	120	2.4	400	10	0.2	692	40
FT-22PGM1800247000-4K	24V	1750	60	1310	120	0.05	0.7	225	0.18
FT-22PGM1800249000-64K	24V	140	200	105	350	1	1.1	470	4
FT-22PGM1800249000-107K	24V	84	70	63	200	2	1.3	450	8
FT-22PGM1800249000-256K	24V	35	80	25	210	4.2	1.1	450	15
FT-22PGM1800249000-304K	24V	29	60	22	180	5	1.1	430	20
Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in

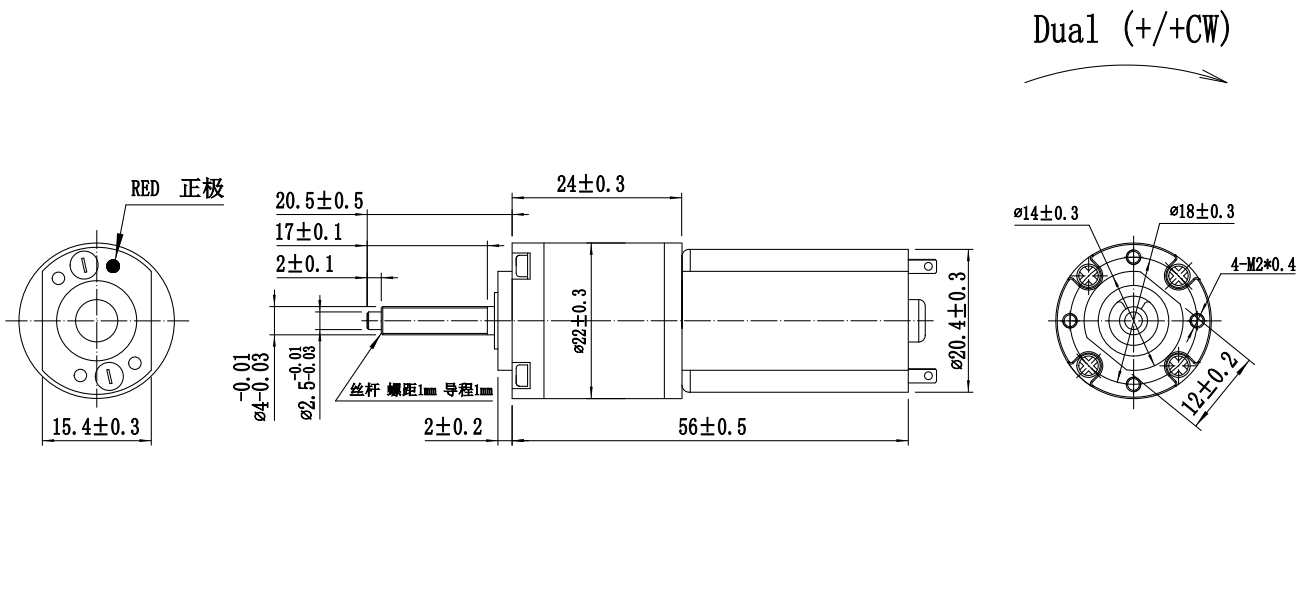

GEARBOX DATA

Reduction stage	1-stage	2-stage	3-stage	4-stage	5-stage
Reduction ratio	4, 4.75	16, 19, 22.5	64, 76, 90, 107	256, 304, 361, 428, 509	1024, 1216, 1444, 1714, 2036, 2418
Gearbox Length “L” mm	13.5	16.9	20.5	24.1	27.6
Max rated torque Kgf.cm	2	3	4	5	6
Max momentary torque Kgf.cm	4	6	8	10	12
Gearbox efficiency	90%	81%	73%	65%	59%

MOTOR DATA

Motor model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Power	Torque	Current
	V	mA	rpm	mA	rpm	gf.cm	W	gf.cm	mA
FT-180	3	≤260	5000	≤158	4000	19	0.8	≥80	≥790
FT-180	5	≤75	12900	≤1510	11000	25.2	2.86	≥174	≥9100
FT-180	12	≤35	8000	≤300	6200	26	1.69	≥100	≥770
FT-180	24	≤36	9000	≤120	7600	15	1.19	≥60	≥470

1、High efficiency: The gear mechanism design of the planetary gear motor has high transmission efficiency, so it can convert electrical energy into greater mechanical output power and improve overall efficiency.

2、Low noise: The planetary gear motor adopts a precise gear transmission system, which reduces the generation of noise and vibration, and provides a relatively stable and quiet working environment.

3、Reliability: The planetary geared motor adopts durable materials and structures, has a long service life and high reliability, and reduces the frequency of maintenance and replacement.

Application

DC Gear Motor Widely Used In Smart home appliances, Smart pet products ,Robots, Electronic locks, Public bicycle locks, Electric daily necessities, ATM machine , Electric glue guns, 3D printing pens, Office equipment, Massage health care, Beauty and fitness equipment, Medical equipment, Toys, Curling iron, Automotive automatic facilities.
