FT-22PGM190 Planetary Gear Reducer Motor

short description:






  • Gear Motor Model : FT-22PGM190 planetary motor gear reducer
  • Gear Box Diameter : 22mm
  • Voltage : 2~24V
  • Speed : 2rpm~2000rpm
  • Torque: Customization Accepted
  • Product Detail

    Product Tags

    Products Description

    Technical Parameters

    Voltage, output speed, torque, output shaft can be customized

    SPECIFICATIONS

    The specifications are for reference only. Contact us for customized data.

    Model number Rated volt. No load Load Stall
    Speed Current Speed Current Torque Power Current Torque
    rpm mA(max) rpm mA(max) Kgf.cm W mA(min) Kgf.cm
    FT-22PGM1800067500-256K 6V 39 150 22 480 3 0.7 1200 10
    FT-22PGM1800068000-361K 6V 22 200 16 550 4 0.7 1100 13
    FT-22PGM1800067000-509K 6V 13 260 8.5 500 4 0.3 830 10.7
    FT-22PGM1800063000-2418K 6V 1.2 60 0.8 90 4 0.03 220 11
    FT-22PGM18000912000-107K 9V 112 260 82 800 2.2 1.9 1920 8.2
    FT-22PGM1800128000-4.75K 12V 1550 160 1130 420 0.1 1.2 800 0.3
    FT-22PGM1800128000-16K 12V 500 140 360 380 0.32 1.2 760 1
    FT-22PGM1800126000-19K 12V 315 80 244 200 0.23 0.6 430 0.9
    FT-22PGM1800128000-107K 12V 75 120 56 320 1.8 1.0 720 6.9
    FT-22PGM1800126000-256K 12V 24 70 19.5 180 1.7 0.3 450 7
    FT-22PGM1800128000-304K 12V 26 75 20.5 250 3.1 0.7 700 12.5
    FT-22PGM1800126000-369K 12V 18 65 14 180 2.5 0.4 400 9
    FT-22PGM1800128000-428K 12V 18 75 15 250 4.8 0.7 700 18.5
    FT-22PGM1800129000-509K 12V 17 200 12 350 5.5 0.7 580 18
    FT-22PGM1800128000-2418K 12V 3.3 120 2.4 400 10 0.2 692 40
    FT-22PGM1800247000-4K 24V 1750 60 1310 120 0.05 0.7 225 0.18
    FT-22PGM1800249000-64K 24V 140 200 105 350 1 1.1 470 4
    FT-22PGM1800249000-107K 24V 84 70 63 200 2 1.3 450 8
    FT-22PGM1800249000-256K 24V 35 80 25 210 4.2 1.1 450 15
    FT-22PGM1800249000-304K 24V 29 60 22 180 5 1.1 430 20
    Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in    1 mm≈0.039 in

    GEARBOX DATA

    Reduction stage 1-stage 2-stage 3-stage 4-stage 5-stage
    Reduction ratio 4, 4.75 16, 19, 22.5 64, 76, 90, 107 256, 304, 361, 428, 509 1024, 1216, 1444, 1714, 2036, 2418
    Gearbox Length “L” mm 13.5 16.9 20.5 24.1 27.6
    Max rated torque Kgf.cm 2 3 4 5 6
    Max momentary torque Kgf.cm 4 6 8 10 12
    Gearbox efficiency 90% 81% 73% 65% 59%

    MOTOR DATA

    Motor model Rated Volt. No load Load Stall
    Current Speed Current Speed Torque Power Torque Current
    V mA rpm mA rpm gf.cm W gf.cm mA
    FT-180 3 ≤260 5000 ≤158 4000 19 0.8 ≥80 ≥790
    FT-180 5 ≤75 12900 ≤1510 11000 25.2 2.86 ≥174 ≥9100
    FT-180 12 ≤35 8000 ≤300 6200 26 1.69 ≥100 ≥770
    FT-180 24 ≤36 9000 ≤120 7600 15 1.19 ≥60 ≥470

     Planetary gear systems, also known as planetary gear trains, are becoming increasingly popular due to their superior torque and speed transmission capabilities. These gear systems feature a compact and lightweight design, making them ideal for a variety of applications.

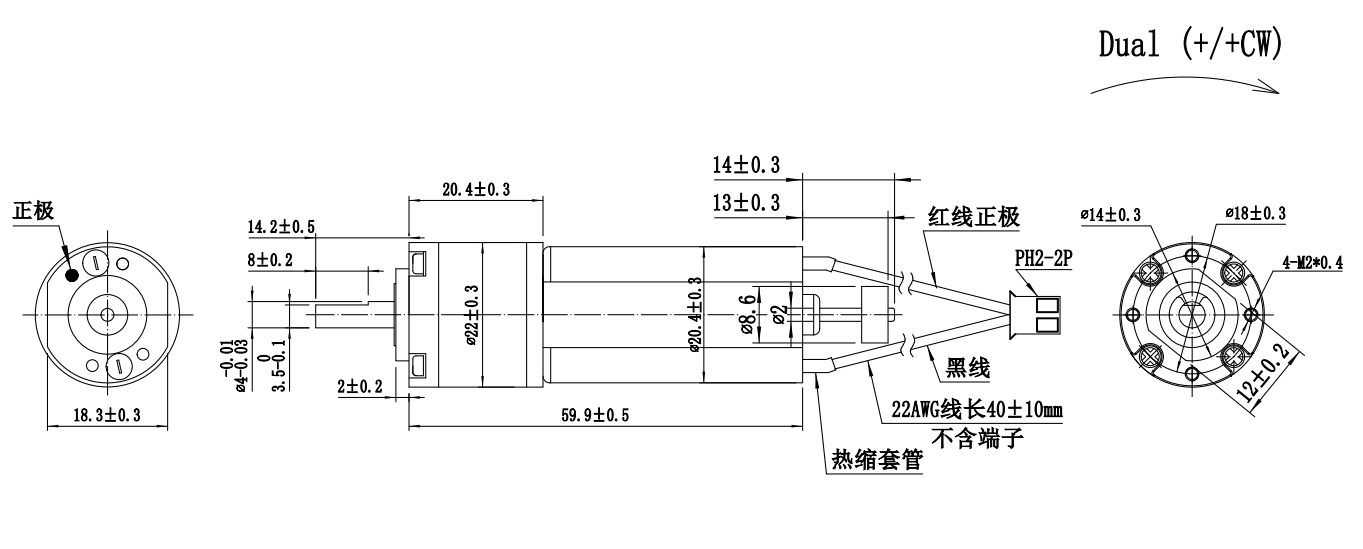

    Planetary gearbox motor Outline

    Ft-22pgm190

    Application

    Micro planetary reduction gearbox Widely Used In Smart home appliances, Smart pet products ,Robots, Electronic locks, Public bicycle locks, Electric daily necessities, ATM machine , Electric glue guns, 3D printing pens,  Office equipment, Massage health care, Beauty and fitness equipment, Medical equipment, Toys,  Curling iron, Automotive automatic facilities.
