FT-22PGM180 Planetary Geared Motors
short description:
Technical Parameters
With their precise alignment and movement, planetary gears ensure seamless operation and enhance overall performance.
Voltage, output speed, torque, output shaft can be customized
SPECIFICATIONS
The specifications are for reference only. Contact us for customized data.
| Model number | Rated volt. | No load | Load | Stall | |||||
| Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| rpm | mA(max) | rpm | mA(max) | Kgf.cm | W | mA(min) | Kgf.cm | ||
| FT-22PGM1800067500-256K | 6V | 39 | 150 | 22 | 480 | 3 | 0.7 | 1200 | 10 |
| FT-22PGM1800068000-361K | 6V | 22 | 200 | 16 | 550 | 4 | 0.7 | 1100 | 13 |
| FT-22PGM1800067000-509K | 6V | 13 | 260 | 8.5 | 500 | 4 | 0.3 | 830 | 10.7 |
| FT-22PGM1800063000-2418K | 6V | 1.2 | 60 | 0.8 | 90 | 4 | 0.03 | 220 | 11 |
| FT-22PGM18000912000-107K | 9V | 112 | 260 | 82 | 800 | 2.2 | 1.9 | 1920 | 8.2 |
| FT-22PGM1800128000-4.75K | 12V | 1550 | 160 | 1130 | 420 | 0.1 | 1.2 | 800 | 0.3 |
| FT-22PGM1800128000-16K | 12V | 500 | 140 | 360 | 380 | 0.32 | 1.2 | 760 | 1 |
| FT-22PGM1800126000-19K | 12V | 315 | 80 | 244 | 200 | 0.23 | 0.6 | 430 | 0.9 |
| FT-22PGM1800128000-107K | 12V | 75 | 120 | 56 | 320 | 1.8 | 1.0 | 720 | 6.9 |
| FT-22PGM1800126000-256K | 12V | 24 | 70 | 19.5 | 180 | 1.7 | 0.3 | 450 | 7 |
| FT-22PGM1800128000-304K | 12V | 26 | 75 | 20.5 | 250 | 3.1 | 0.7 | 700 | 12.5 |
| FT-22PGM1800126000-369K | 12V | 18 | 65 | 14 | 180 | 2.5 | 0.4 | 400 | 9 |
| FT-22PGM1800128000-428K | 12V | 18 | 75 | 15 | 250 | 4.8 | 0.7 | 700 | 18.5 |
| FT-22PGM1800129000-509K | 12V | 17 | 200 | 12 | 350 | 5.5 | 0.7 | 580 | 18 |
| FT-22PGM1800128000-2418K | 12V | 3.3 | 120 | 2.4 | 400 | 10 | 0.2 | 692 | 40 |
| FT-22PGM1800247000-4K | 24V | 1750 | 60 | 1310 | 120 | 0.05 | 0.7 | 225 | 0.18 |
| FT-22PGM1800249000-64K | 24V | 140 | 200 | 105 | 350 | 1 | 1.1 | 470 | 4 |
| FT-22PGM1800249000-107K | 24V | 84 | 70 | 63 | 200 | 2 | 1.3 | 450 | 8 |
| FT-22PGM1800249000-256K | 24V | 35 | 80 | 25 | 210 | 4.2 | 1.1 | 450 | 15 |
| FT-22PGM1800249000-304K | 24V | 29 | 60 | 22 | 180 | 5 | 1.1 | 430 | 20 |
| Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in | |||||||||
GEARBOX DATA
| Reduction stage | 1-stage | 2-stage | 3-stage | 4-stage | 5-stage |
| Reduction ratio | 4, 4.75 | 16, 19, 22.5 | 64, 76, 90, 107 | 256, 304, 361, 428, 509 | 1024, 1216, 1444, 1714, 2036, 2418 |
| Gearbox Length “L” mm | 13.5 | 16.9 | 20.5 | 24.1 | 27.6 |
| Max rated torque Kgf.cm | 2 | 3 | 4 | 5 | 6 |
| Max momentary torque Kgf.cm | 4 | 6 | 8 | 10 | 12 |
| Gearbox efficiency | 90% | 81% | 73% | 65% | 59% |
MOTOR DATA
| Motor model | Rated Volt. | No load | Load | Stall | |||||
| Current | Speed | Current | Speed | Torque | Power | Torque | Current | ||
| V | mA | rpm | mA | rpm | gf.cm | W | gf.cm | mA | |
| FT-180 | 3 | ≤260 | 5000 | ≤158 | 4000 | 19 | 0.8 | ≥80 | ≥790 |
| FT-180 | 5 | ≤75 | 12900 | ≤1510 | 11000 | 25.2 | 2.86 | ≥174 | ≥9100 |
| FT-180 | 12 | ≤35 | 8000 | ≤300 | 6200 | 26 | 1.69 | ≥100 | ≥770 |
| FT-180 | 24 | ≤36 | 9000 | ≤120 | 7600 | 15 | 1.19 | ≥60 | ≥470 |
Products Description
Technical Parameters
With their precise alignment and movement, planetary gears ensure seamless operation and enhance overall performance.
Voltage, output speed, torque, output shaft can be customized
SPECIFICATIONS
The specifications are for reference only. Contact us for customized data.
| Model number | Rated volt. | No load | Load | Stall | |||||
| Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| rpm | mA(max) | rpm | mA(max) | Kgf.cm | W | mA(min) | Kgf.cm | ||
| FT-22PGM1800067500-256K | 6V | 39 | 150 | 22 | 480 | 3 | 0.7 | 1200 | 10 |
| FT-22PGM1800068000-361K | 6V | 22 | 200 | 16 | 550 | 4 | 0.7 | 1100 | 13 |
| FT-22PGM1800067000-509K | 6V | 13 | 260 | 8.5 | 500 | 4 | 0.3 | 830 | 10.7 |
| FT-22PGM1800063000-2418K | 6V | 1.2 | 60 | 0.8 | 90 | 4 | 0.03 | 220 | 11 |
| FT-22PGM18000912000-107K | 9V | 112 | 260 | 82 | 800 | 2.2 | 1.9 | 1920 | 8.2 |
| FT-22PGM1800128000-4.75K | 12V | 1550 | 160 | 1130 | 420 | 0.1 | 1.2 | 800 | 0.3 |
| FT-22PGM1800128000-16K | 12V | 500 | 140 | 360 | 380 | 0.32 | 1.2 | 760 | 1 |
| FT-22PGM1800126000-19K | 12V | 315 | 80 | 244 | 200 | 0.23 | 0.6 | 430 | 0.9 |
| FT-22PGM1800128000-107K | 12V | 75 | 120 | 56 | 320 | 1.8 | 1.0 | 720 | 6.9 |
| FT-22PGM1800126000-256K | 12V | 24 | 70 | 19.5 | 180 | 1.7 | 0.3 | 450 | 7 |
| FT-22PGM1800128000-304K | 12V | 26 | 75 | 20.5 | 250 | 3.1 | 0.7 | 700 | 12.5 |
| FT-22PGM1800126000-369K | 12V | 18 | 65 | 14 | 180 | 2.5 | 0.4 | 400 | 9 |
| FT-22PGM1800128000-428K | 12V | 18 | 75 | 15 | 250 | 4.8 | 0.7 | 700 | 18.5 |
| FT-22PGM1800129000-509K | 12V | 17 | 200 | 12 | 350 | 5.5 | 0.7 | 580 | 18 |
| FT-22PGM1800128000-2418K | 12V | 3.3 | 120 | 2.4 | 400 | 10 | 0.2 | 692 | 40 |
| FT-22PGM1800247000-4K | 24V | 1750 | 60 | 1310 | 120 | 0.05 | 0.7 | 225 | 0.18 |
| FT-22PGM1800249000-64K | 24V | 140 | 200 | 105 | 350 | 1 | 1.1 | 470 | 4 |
| FT-22PGM1800249000-107K | 24V | 84 | 70 | 63 | 200 | 2 | 1.3 | 450 | 8 |
| FT-22PGM1800249000-256K | 24V | 35 | 80 | 25 | 210 | 4.2 | 1.1 | 450 | 15 |
| FT-22PGM1800249000-304K | 24V | 29 | 60 | 22 | 180 | 5 | 1.1 | 430 | 20 |
| Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in | |||||||||
GEARBOX DATA
| Reduction stage | 1-stage | 2-stage | 3-stage | 4-stage | 5-stage |
| Reduction ratio | 4, 4.75 | 16, 19, 22.5 | 64, 76, 90, 107 | 256, 304, 361, 428, 509 | 1024, 1216, 1444, 1714, 2036, 2418 |
| Gearbox Length “L” mm | 13.5 | 16.9 | 20.5 | 24.1 | 27.6 |
| Max rated torque Kgf.cm | 2 | 3 | 4 | 5 | 6 |
| Max momentary torque Kgf.cm | 4 | 6 | 8 | 10 | 12 |
| Gearbox efficiency | 90% | 81% | 73% | 65% | 59% |
MOTOR DATA
| Motor model | Rated Volt. | No load | Load | Stall | |||||
| Current | Speed | Current | Speed | Torque | Power | Torque | Current | ||
| V | mA | rpm | mA | rpm | gf.cm | W | gf.cm | mA | |
| FT-180 | 3 | ≤260 | 5000 | ≤158 | 4000 | 19 | 0.8 | ≥80 | ≥790 |
| FT-180 | 5 | ≤75 | 12900 | ≤1510 | 11000 | 25.2 | 2.86 | ≥174 | ≥9100 |
| FT-180 | 12 | ≤35 | 8000 | ≤300 | 6200 | 26 | 1.69 | ≥100 | ≥770 |
| FT-180 | 24 | ≤36 | 9000 | ≤120 | 7600 | 15 | 1.19 | ≥60 | ≥470 |
Do you need a reliable and high-performance gear system for your automotive system, robot or industrial machinery? Look no further, we are proud to introduce planetary gearbox motor, a revolutionary solution to your power transmission needs.

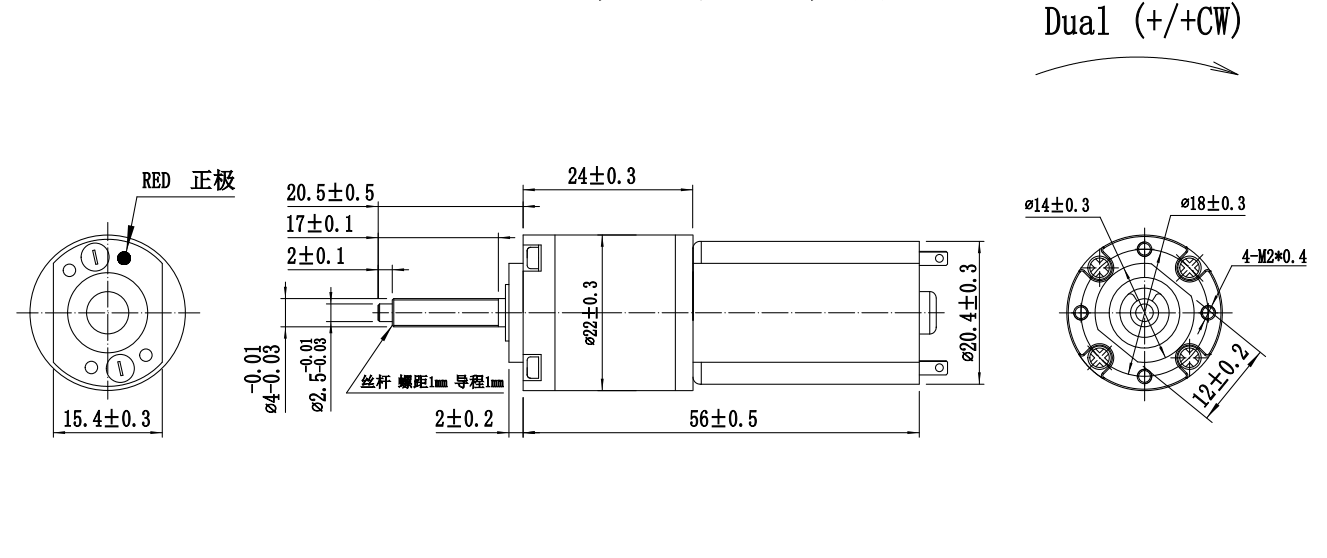

Planetary gearbox motor Outline
Application
Planetary reducer motor Widely Used In Smart home appliances, Smart pet products ,Robots, Electronic locks, Public bicycle locks, Electric daily necessities, ATM machine , Electric glue guns, 3D printing pens, Office equipment, Massage health care, Beauty and fitness equipment, Medical equipment, Toys, Curling iron, Automotive automatic facilities.
