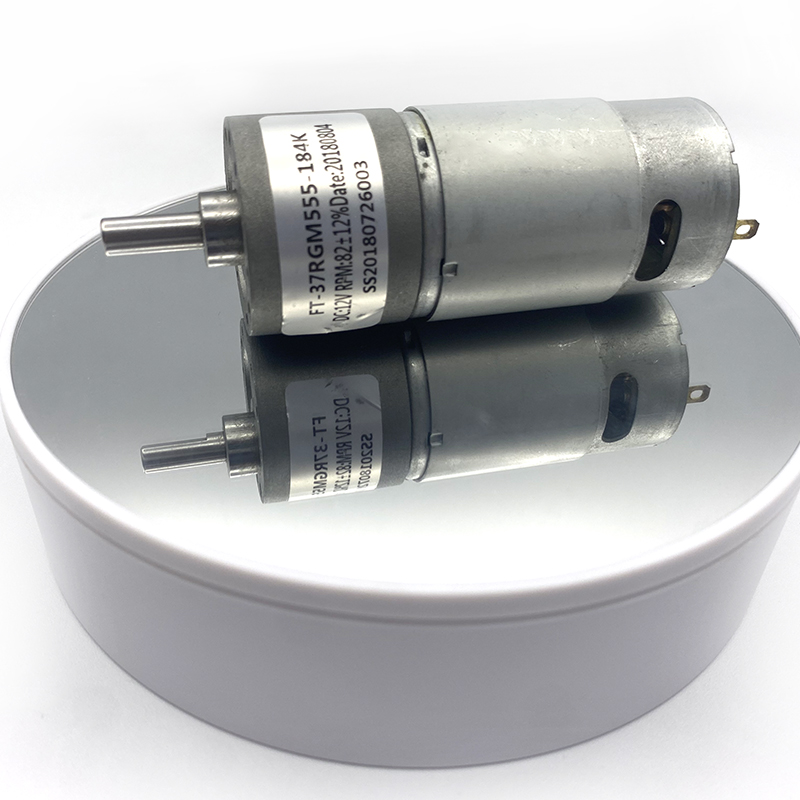

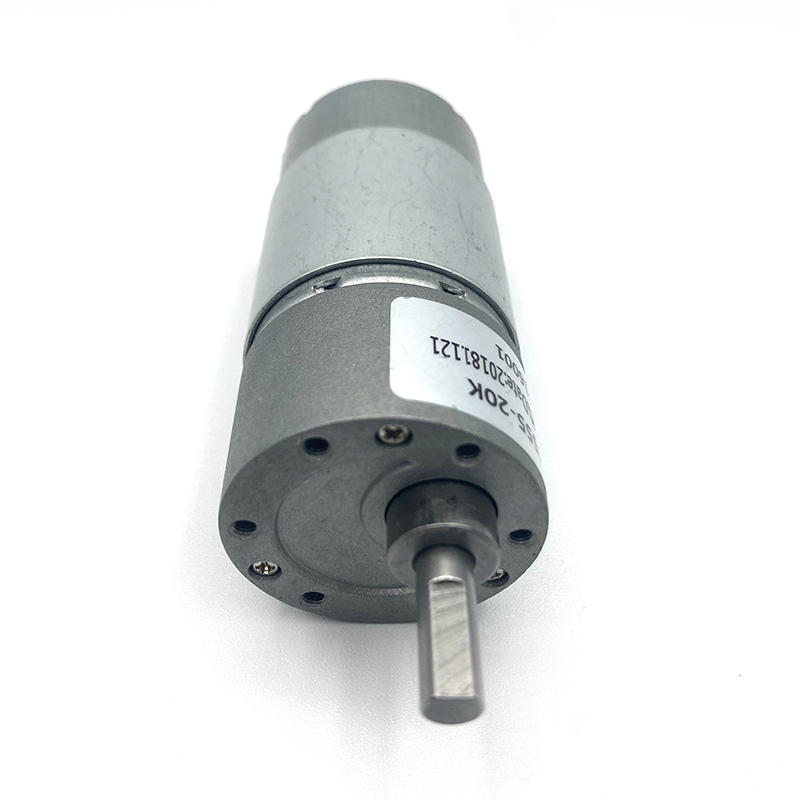

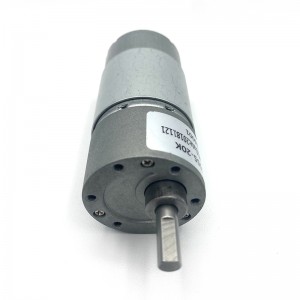

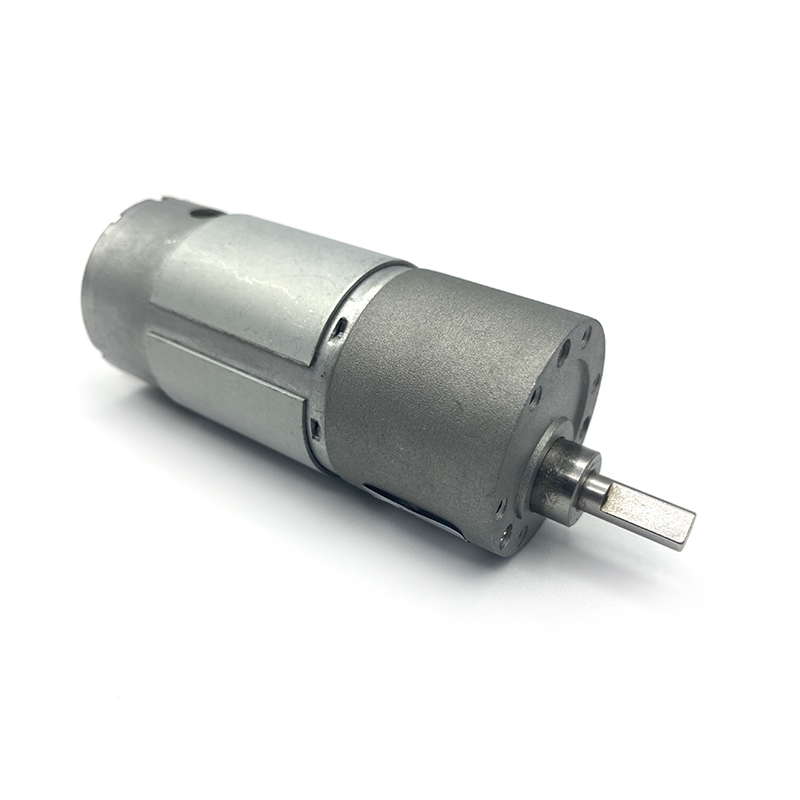

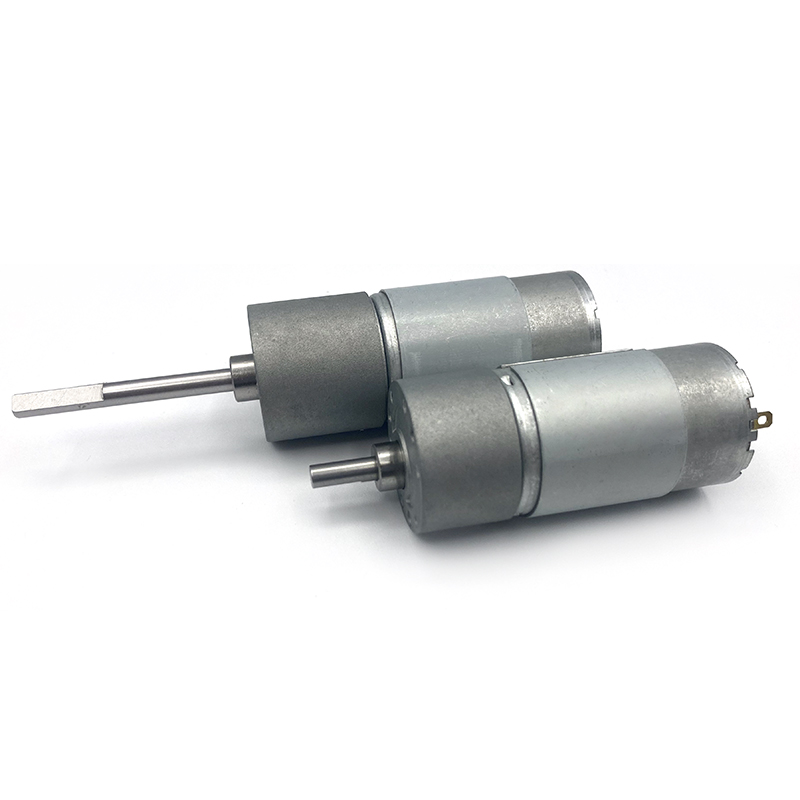

FT-37RGM555 Spur gear reduction motor

short description:

Its core is that the Planetary Reduction Gear Motor uses the power of the spur gear to effectively reduce the speed of the motor output shaft and increase the torque at the same time. How does it achieve this? Let’s dive into how it works.


  • Gear Motor Model: FT-37RGM555
  • Gear Box Diameter: 37mm
  • Voltage: 2~24V
  • Speed: 2rpm~2000rpm
  • Torque: Customization accepted
  • Product Detail

    Product Tags

    Features:

     An electric motor is equipped with two key components - a driving gear and a driven gear. The drive gear is larger in size and connected directly to the motor shaft. On the other hand, the smaller driven gear is connected to the output shaft. When the motor starts spinning, the drive gear spins at the same speed as the motor, but with significantly higher torque.





    SPECIFICATIONS
    The specifications are for reference only. Contact us for customized data.
    Model number Rated volt. No load Load Stall
    Speed Current Speed Current Torque Power Current Torque
    rpm mA(max) rpm mA(max) Kgf.cm W mA(min) Kgf.cm
    FT-37RGM5550067500-61K 6V 120 1400 90 3000 4.5 4.2 10000 18
    FT-37RGM5550066000-30K 6V 180 1050 138 3200 4.4 6.2 7300 16.5
    FT-37RGM5550066000-61K 6V 100 850 74 2400 5.4 4.1 6030 20.7
    FT-37RGM5550128500-6.8K 12V 1250 1000 925 3500 1.5 14.2 9980 6.8
    FT-37RGM5550128500-30K 12V 283 600 226 3180 5.2 12.1 9900 29
    FT-37RGM5550126000-10K 12V 600 450 470 1600 1.8 8.7 7500 8
    FT-37RGM5550126000-20K 12V 285 400 261 2300 4.4 11.8 9600 26
    FT-37RGM5550121800-30K 12V 60 90 49 320 3.2 1.6 1070 15.8
    FT-37RGM5550124500-120K 12V 37 300 30 1400 18 5.5 1400 101
    FT-37RGM5550123000-552K 12V 5.4 200 4 800 40 1.6 5000 250
    FT-37RGM5550246000-20K 24V 286 190 257 1070 3.5 9.2 5100 22
    FT-37RGM5550243000-30K 24V 100 110 91 460 4.8 4.5 1700 25
    FT-37RGM5550246000-61K 24V 100 230 89 1100 10.4 9.5 4500 62
    FT-37RGM5550243500-184K 24V 19 130 16 550 28 4.6 1850 155
    FT-37RGM5550249000-270K 24V 33 500 31 2700 75 23.9 13000 579
    Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in    1 mm≈0.039 in

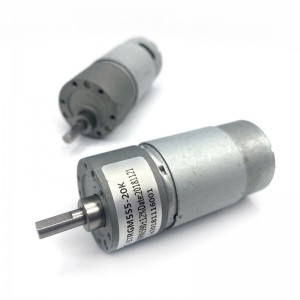

    FT-37RGM555 Spur gear reduction motor (5)

    Product Video

    Application

    Round Spur gear motor has the characteristics of small size, light weight and high transmission efficiency, and is widely used in various micro mechanical equipment. Here are some common application scenarios:

    Smart toys: Miniature DC spur gear motors can drive various actions of smart toys, such as turning, swinging, pushing, etc., bringing more diverse and interesting functions to toys.
    Robots: The miniaturization and high efficiency of miniature DC spur gear motors make them an important part of the robotics field. It can be used for robot joint actuation, hand motion and walking, etc.
