FT-48OGM520 DC brush permanent magnet Pear Shape Geared Motor Damper motor
Applications

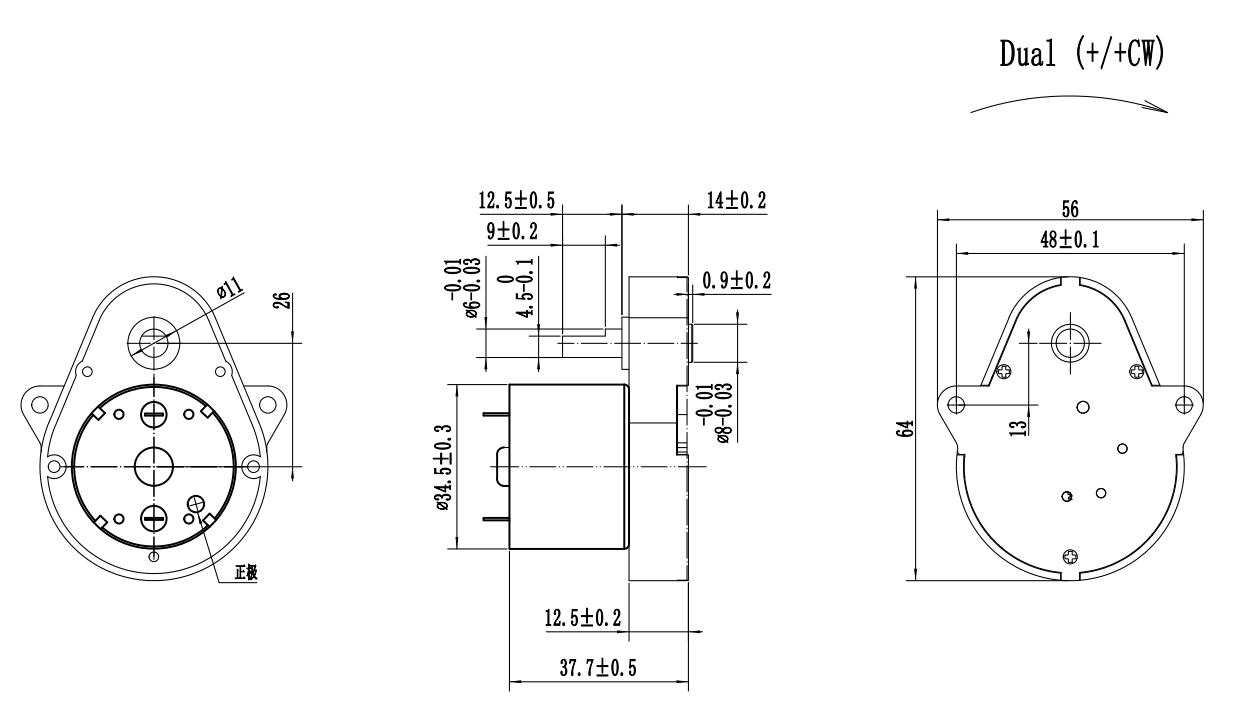

Dimension (mm)
| FT-48OGM3530-12V-5500R DC MOTOR | ||||||||||||||||
| Reduction Ratio | 8.3 | 11.9 | 15.7 | 18.2 | 22.6 | 37 | 81.3 | 111 | 179 | 244 | 394 | 537 | 866 | 1181 | 1905 | 2597 |
| Number of gear trains | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 6 | 6 | 6 | 6 |
| Length of gearbox MM |
65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 |
| No-load speed (RPM) |
663 | 462 | 350 | 302 | 243 | 149 | 67.7 | 49.5 | 30.7 | 22.5 | 14 | 10.2 | 6.35 | 4.66 | 2.89 | 2.12 |
| Rated speed (RPM) |
530 | 370 | 280 | 242 | 195 | 119 | 54.1 | 39.6 | 24.6 | 18 | 11.2 | 8.19 | 5.08 | 3.73 | 2.31 | 1.69 |
| Rated torque (N.m) |
0.03 | 0.04 | 0.05 | 0.05 | 0.07 | 0.11 | 0.22 | 0.29 | 0.43 | 0.58 | 0.85 | 1.16 | 1.50 | 1.50 | 1.50 | 1.50 |
| Max permissible torque (N.m) |
0.08 | 0.12 | 0.14 | 0.16 | 0.20 | 0.33 | 0.65 | 0.88 | 1.28 | 1.50 | 1.50 | 1.50 | 1.50 | 1.50 | 1.50 | 1.50 |
| FT-48OGM3530-12V-7300R DC MOTOR | ||||||||||||||||
| Reduction Ratio | 8.3 | 11.9 | 15.7 | 18.2 | 22.6 | 37 | 81.3 | 111 | 179 | 244 | 394 | 537 | 866 | 1181 | 1905 | 2597 |
| Number of gear trains | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 6 | 6 | 6 | 6 |
| Length of gearbox (MM) |
65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 |
| No-load speed (RPM) |
880 | 613 | 465 | 401 | 323 | 197 | 89.8 | 65.8 | 40.8 | 29.9 | 18.5 | 13.6 | 8.43 | 6.18 | 3.83 | 2.81 |
| Rated speed (RPM) |
704 | 491 | 372 | 321 | 258 | 158 | 71.8 | 52.6 | 32.6 | 23.9 | 14.8 | 10.9 | 6.74 | 4.94 | 3.07 | 2.25 |
| Rated torque (N.m) |
0.03 | 0.04 | 0.05 | 0.06 | 0.07 | 0.12 | 0.23 | 0.32 | 0.46 | 0.63 | 0.91 | 1.24 | 1.50 | 1.50 | 1.50 | 1.50 |
| Max permissible torque (N.m) |
0.09 | 0.13 | 0.15 | 0.17 | 0.22 | 0.35 | 0.70 | 0.95 | 1.38 | 1.50 | 1.50 | 1.50 | 1.50 | 1.50 | 1.50 | 1.50 |
| FT-48OGM3530-24V-3500R DC MOTOR | ||||||||||||||||
| Reduction Ratio | 8.3 | 11.9 | 15.7 | 18.2 | 22.6 | 37 | 81.3 | 111 | 179 | 244 | 394 | 537 | 866 | 1181 | 1905 | 2597 |
| Number of gear trains | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 6 | 6 | 6 | 6 |
| Length of gearbox (MM) |
65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 | 65 |
| No-load speed (RPM) |
422 | 294 | 223 | 192 | 155 | 94.6 | 43.1 | 31.5 | 19.6 | 14.3 | 8.88 | 6.52 | 4.04 | 2.96 | 1.84 | 1.35 |
| Rated speed (RPM) |
337 | 235 | 178 | 154 | 124 | 75.7 | 34.4 | 25.2 | 15.6 | 11.5 | 7.11 | 5.21 | 3.23 | 2.37 | 1.47 | 1.08 |
| Rated torque (N.m) |
0.02 | 0.03 | 0.04 | 0.04 | 0.05 | 0.09 | 0.17 | 0.23 | 0.34 | 0.46 | 0.67 | 0.92 | 1.48 | 1.50 | 1.50 | 1.50 |
| Max permissible torque (N.m) |
0.06 | 0.09 | 0.11 | 0.13 | 0.16 | 0.26 | 0.51 | 0.70 | 1.02 | 1.39 | 1.50 | 1.50 | 1.50 | 1.50 | 1.50 | 1.50 |
| FT-48OGM3530-24V-5200R DC MOTOR | ||||||||||||||||
| Reduction Ratio | 8.2 | 9.5 | 14.7 | 22.3 | 27.2 | 44.5 | 63 | 80.3 | 121 | 147 | 187 | 283 | 344 | 565 | 728 | 802 |
| Number of gear trains | 2 | 2 | 3 | 3 | 4 | 4 | 4 | 5 | 5 | 5 | 6 | 6 | 6 | 7 | 7 | 7 |
| Length of gearbox (MM) |
22.5 | 22.5 | 22.5 | 22.5 | 24.5 | 24.5 | 24.5 | 26.5 | 26.5 | 26.5 | 29.5 | 29.5 | 29.5 | 32.5 | 32.5 | 32.5 |
| No-load speed (RPM) |
627 | 437 | 331 | 286 | 230 | 141 | 64 | 46.8 | 29.1 | 21.3 | 13.2 | 9.68 | 6 | 4.4 | 2.73 | 2 |
| Rated speed (RPM |
501 | 350 | 265 | 229 | 184 | 112 | 51.2 | 37.5 | 23.2 | 17 | 10.6 | 7.75 | 4.8 | 3.52 | 2.18 | 1.6 |
| Rated torque (N.m) |
0.03 | 0.04 | 0.04 | 0.05 | 0.06 | 0.09 | 0.21 | 0.25 | 0.41 | 0.56 | 0.81 | 1.10 | 1.50 | 1.50 | 1.50 | 1.50 |
| Max permissible torque (N.m) |
0.08 | 0.11 | 0.13 | 0.15 | 0.17 | 0.28 | 0.62 | 0.76 | 1.23 | 1.50 | 1.50 | 1.50 | 1.50 | 1.50 | 1.50 | 1.50 |
The distinctive feature of the pear-shaped geared motor is its unique appearance, which is similar to the shape of a pear.
This innovative design consists of two important components: motor and reducer, ensuring optimal performance in a variety of applications. The pear-shaped body not only adds a unique touch to the product, but also significantly enhances its compactness, making it ideal for installation in devices with limited space.
Shape characteristics: The appearance of the pear-shaped geared motor is in the shape of a pear, and it is usually composed of two parts: the motor and the reducer. This special shape design can make the pear-shaped geared motor more compact, suitable for installation in equipment with limited space.
Features: The pear-shaped geared motor has a deceleration function, which can reduce the high-speed rotation of the motor to the required low-speed output. Through the design of the reducer, the pear-shaped geared motor can also achieve greater torque output and provide stable speed and torque control.
Application fields: Pear-shaped geared motors are suitable for application scenarios that require high torque and low-speed output, such as industrial machinery equipment, logistics transmission equipment, automated production lines, valve、fresh air ventilator etc. The pear-shaped geared motor can be adjusted at different speeds through a transmission or electronic control to adapt to different working environments and needs.
The pear-shaped geared motor is a special-shaped geared motor with the characteristics of compactness, high torque and adjustable speed, which is suitable for a variety of industrial and automation equipment.
