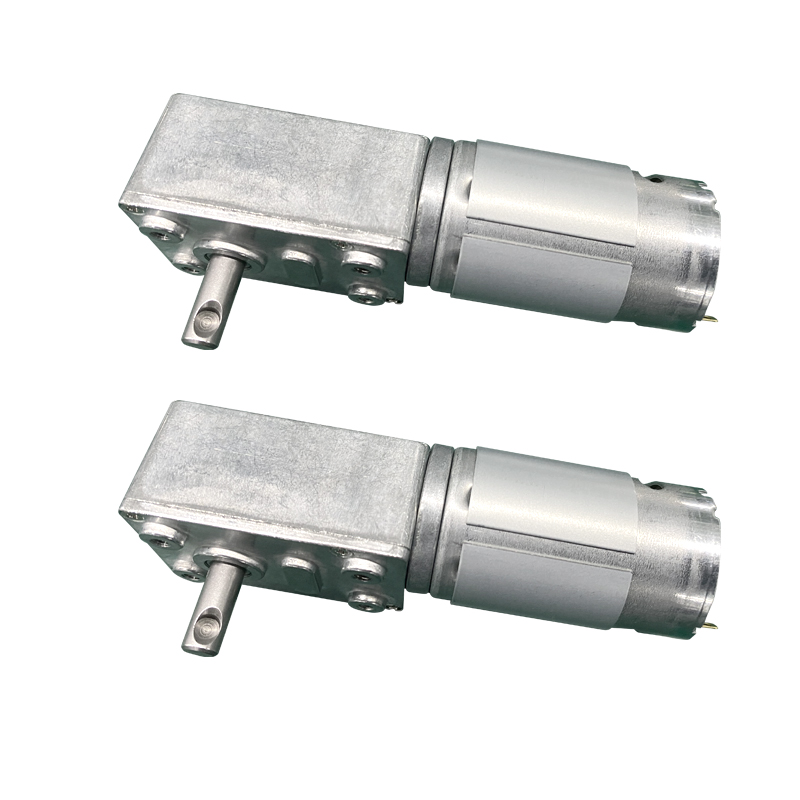

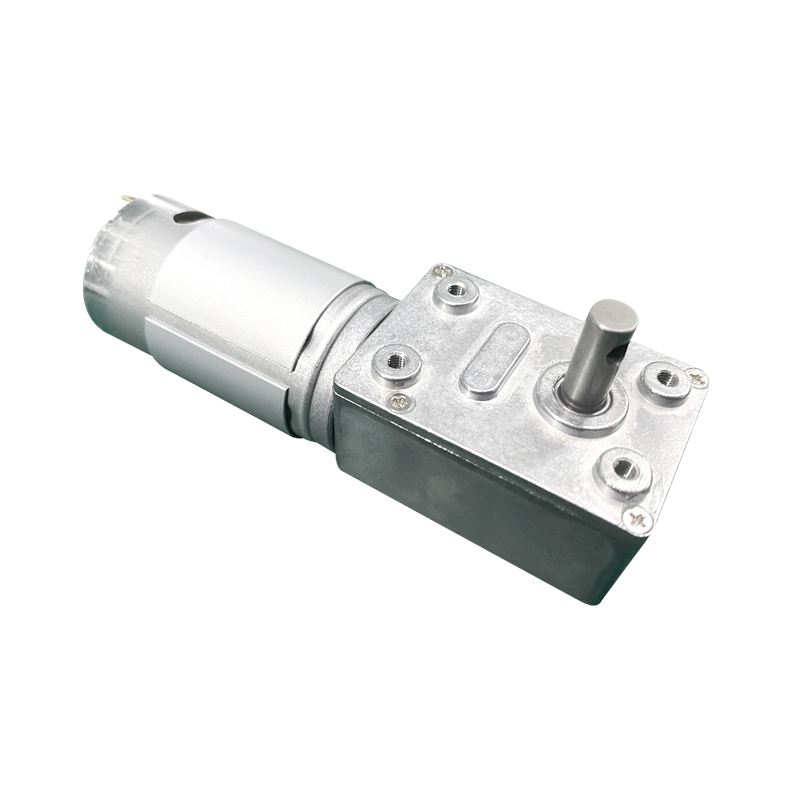

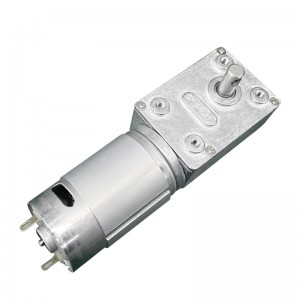

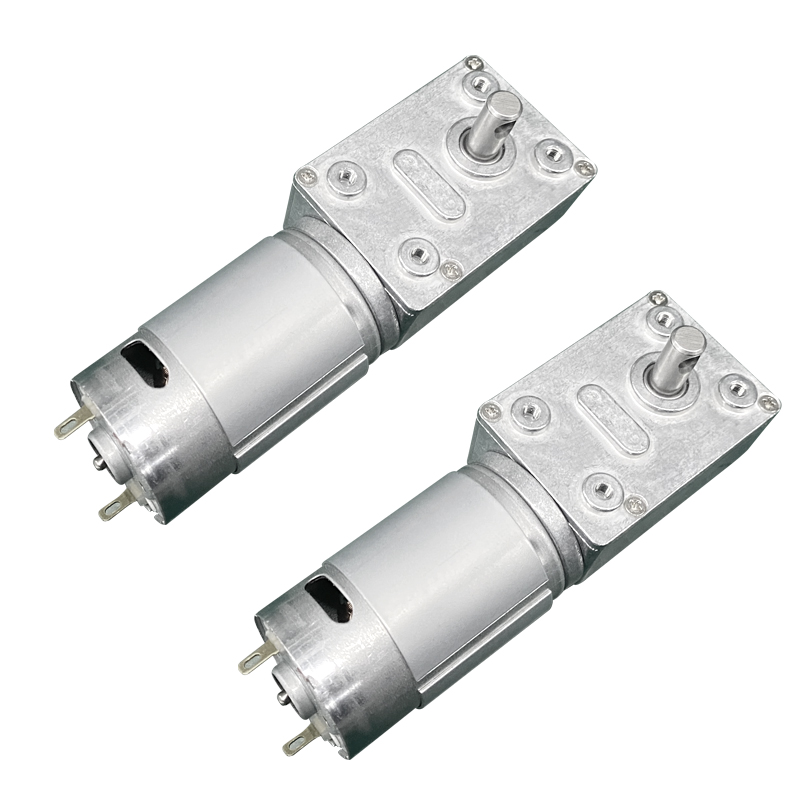

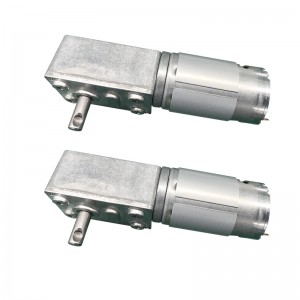

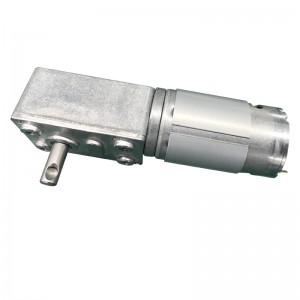

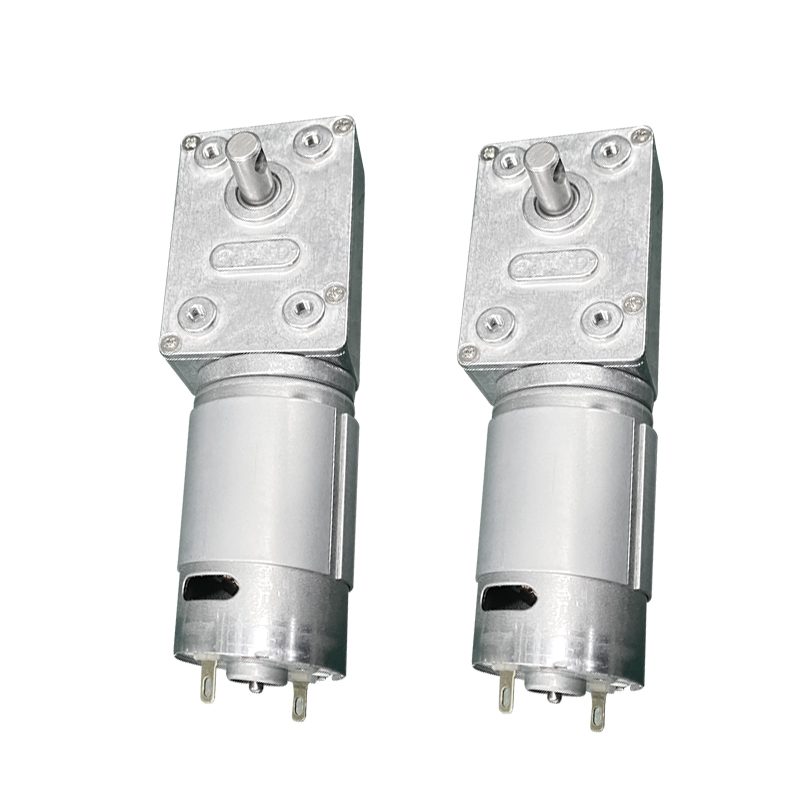

FT-58SGM545 Robotics motor worm gear motor

short description:

Technical Parameters

Gear Motor Model : T-58SGM545

Gear Box Diameter: 58mmx40.1mm

Voltage : 2~24V

Speed : 2rpm~2000rpm

Torque: Customization Accepted

Send email to us

Product Detail

Product Tags

Product Video

Product Parameter

Model	Voltage		Ratio	No Load		Rated Load				Stall
	Range	Rated	Ratio	Speed	Current	Speed	Current	Torque	Power	Torque	Current
	V		1:00	rpm	mA	rpm	A	Kgf·cm	W	Kgf·cm	A
555-1280	6-12V	DC12V	17	470	300	400	1.6	5	20	17	5
			31	260	300	220	1.6	9	20	31	5
			50	160	300	135	1.6	15	20	50	5
			100	80	300	68	1.6	30	20	70	5
			290	27	300	23	1.6	70	20	70	5
			500	16	300	13.5	1.6	70	20	70	5
555-2480	12-24V	DC24V	17	470	250	400	2	6.8	28	17	7
			31	260	250	220	2	12	28	31	7
			50	160	250	135	2	19	28	50	7
			100	80	250	68	2	60	28	70	7
			290	27	250	23	2	70	28	70	7
			500	16	250	13.5	2	70	28	70	7

Application

1. Household applications: white goods, small appliances, fans, electric screens, automatic window opening, floor cleaning robots, vacuum cleaners, smart home systems.

2. Medical applications: medical pumps, sphygmomanometers, surgical tools, medical agitators, centrifuges.

3. Power tools: air pump, water pump, vacuum pump, oxygen generator, electric drill, electric screwdriver.

4. Commercial equipment: printers, copiers, shredders, projectors, scanners, cash registers, vending machines.

5. Personal care: hair dryer, electric shaver, beauty product, hair curler, steam hair straightener (water jet straight hair outlet).

6. Health field: massager, adult toy.

7. Security field: surveillance system, camera, safe.

8. Industrial applications: robotic arms, printing equipment, automation equipment.

9. Other applications: electronic door locks, smart switches, robots, toys, smart cars, boats, intelligent wear, electronics, DIY, etc.

Notice

Hello, I am very happy to see our products. We are professional motor OEM/ODM manufacturers, and have nearly 11 years of production and R&D experience. We have our own factory and technical engineers. We are located in Shenzhen, China, If you are interested in our products, there are any motor customization needs, welcome to contact us, our professional services to answer your questions.

Company Profile

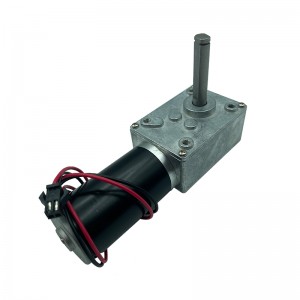

Previous: FT-58SGM31ZY DC brushed right angle worm gear motor

Next: FT-63SGM190 worm gear motor Intelligent door lock motor

A gear motor is a mechanical device consisting of an electric motor and a gearbox, differing from a DC motor for lower RPM and higher torque.

Micro Motors specializes in the manufacture of miniature gear motors, both with brushes and without brushes, and stepper motors.

A gear motor is a mechanical device consisting of an electric motor and a gearbox, differing from a DC motor for lower RPM and higher torque.

Micro Motors specializes in the manufacture of miniature gear motors, both with brushes and without brushes, and stepper motors.

we are DC gear motor manufacturer , my factory mainly produce and supply Micro DC planetary gear motor, Worm gear motor, Spur gear motor, Brushed motor , Brushless BLDC motor and so on , We have a professional engineering design team that can design motor performance parameters according to your product requirements.

1.Q: Are you trading company or manufacturer?

A: We’re factory. We specialize in micro dc motor and dc gear motor for more than 20 years.

2.Q: What is the payment term for a new customer?

A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer
also can pay with PayPal or TT etc.

3.Q: I can’t find a suitable motor on your website, can you customize the motor for me?

A: Yes, we can customize a suitable motor according to our customer’s requirements.

4.Q: Do you have certificates for the motors?

A: Yes, we have RoHS， CE, FCC, ISO, IATF16949 etc. If you have the other certificates requirement, we can apply it for you.

5.Q: How is your Quality Control?

A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire
quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test
Machine, and Noise tester etc.
