FT-12FGMN30 Flat gearmotor

short description:

flat DC gear motors have the advantages of compact design, high torque output, high efficiency, precise motion control, and durability. This makes them ideal for solving applications requiring high torque and precise control.

Gear Motor Model: FT-12FGMN30

Gear Box Diameter: 12mm

Voltage: 2~24V

Speed: 2rpm~2000rpm

Torque: Customization accepted

Send email to us

Product Detail

Product Tags

Features:

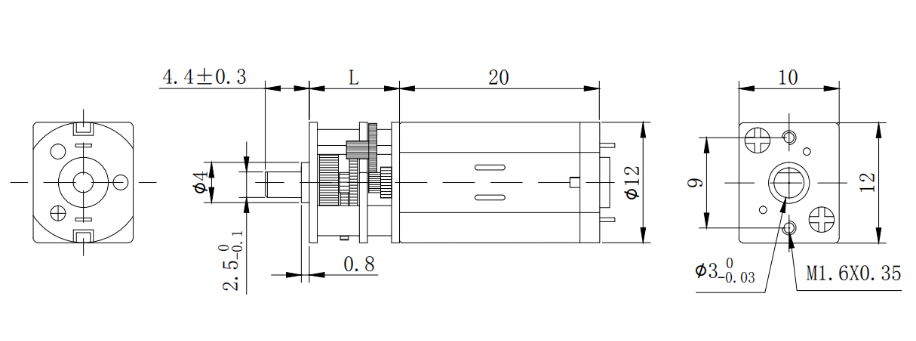

Dimension (measure unit is mm)

SPECIFICATIONS
The specifications are for reference only. Contact us for customized data.
Model number	Rated volt.	No load		Load				Stall
		Speed	Current	Speed	Current	Torque	Power	Current	Torque
		rpm	mA(max)	rpm	mA(max)	gf.cm	W	mA(min)	gf.cm
FT-12FGMN2000310000-10K	3V	1000	40	770	150	26	0.21	400	110
FT-12FGMN2000315000-30K	3V	500	200	312	450	80	0.26	690	225
FT-12FGMN2000315000-100K	3V	150	50	125	220	180	0.23	900	1050
FT-12FGMN2000316000-150K	3V	106	90	78	280	220	0.18	620	825
FT-12FGMN2000315000-298K	3V	50	80	40	260	505	0.21	700	2060
FT-12FGMN2000320000-1000K	3V	20	160	15	460	2000	0.31	780	5.5
FT-12FGMN204.515000-50K	4.5V	300	40	250	150	60	0.15	440	250
FT-12FGMN204.515000-150K	4.5V	100	40	80	150	200	0.16	420	840
FT-12FGMN204.59000-210K	4.5V	43	35	34	85	215	0.08	180	830
FT-12FGMN2000517000-50K	5V	340	50	285	165	116	0.34	550	548
FT-12FGMN2000515000-100K	5V	150	70	115	170	161	0.19	370	590
FT-12FGMN2000510000-250K	5V	40	35	33	85	360	0.12	210	1410
FT-12FGMN2000615500-50K	6V	310	60	230	180	110	0.26	400	380
FT-12FGMN2000615500-100K	6V	155	30	140	100	150	0.22	400	920
FT-12FGMN2000610000-250K	6V	40	45	30	100	370	0.11	150	1100
FT-12FGMN2000620000-298K	6V	67	80	55	230	585	0.33	630	2480
FT-12FGMN2000610400-1000K	6V	10	50	7	110	1400	0.1	130	3900
FT-12FGMN2001220000-50K	12V	400	35	310	120	110	0.35	300	480
FT-12FGMN2001225500-100K	12V	255	40	205	150	300	0.63	650	1500
FT-12FGMN2001220000-150K	12V	133	50	108	160	330	0.37	300	1300
FT-12FGMN2001220000-250K	12V	80	45	69	110	450	0.32	280	2080
FT-12FGMN2001220000-298K	12V	67	40	55	120	670	0.38	300	3000
Remark: 1 gf.cm≈0.098 mN.m≈0.014 oz.in 1 mm≈0.039 in

Video

Application

Robot: The square geared motor can be used in the joint or drive system of the robot to provide stable rotational force and control the range of motion and speed of the robot.

Automation equipment: square geared motors are widely used in various automation equipment, such as automatic doors, vending machines, automatic lifts, etc., through the rotation of square geared motors to realize the opening, closing or position adjustment of the equipment.

Medical equipment: square geared motors can be used in medical equipment, such as surgical robots, medical equipment, etc., to achieve the accuracy and stability of medical operations by controlling the movement of square geared motors.

In short, the application of square geared motors is very wide, covering almost all fields of automation and mechanical equipment.

These specifications determine the motor's output speed, torque, and power consumption. Some models may also offer features such as encoders or brakes for enhanced control and safety.These motors find applications in robotics, automation equipment, medical devices, automotive systems, and more. They are often chosen for their compact size, durability, and ability to provide precise and reliable motion control in space-constrained environments.Overall, flat DC gear motors are a versatile and efficient solution for applications that require high torque and precise control of speed and motion.

Motor Model	Rated Voltag	No Load		Load				Stall
		Speed	CuTen	Speed	Current	Output	Torque	Current	Targue
	V	(rpm	(mA	(rpm)	(mA)	w	(gcm	(mA)	gcm)
FT-N30	2.5	5300	15	4220	59	0.15	1.6	230	8
FT-N30	4.5	26000	130	23000	600	2.5	5	2200	37
FT-N30	3.3	23000	120	19000	700	2.31	5	2200	24
FT-N30	12	15500	30	12400	75	0.62	4.2	350	18
