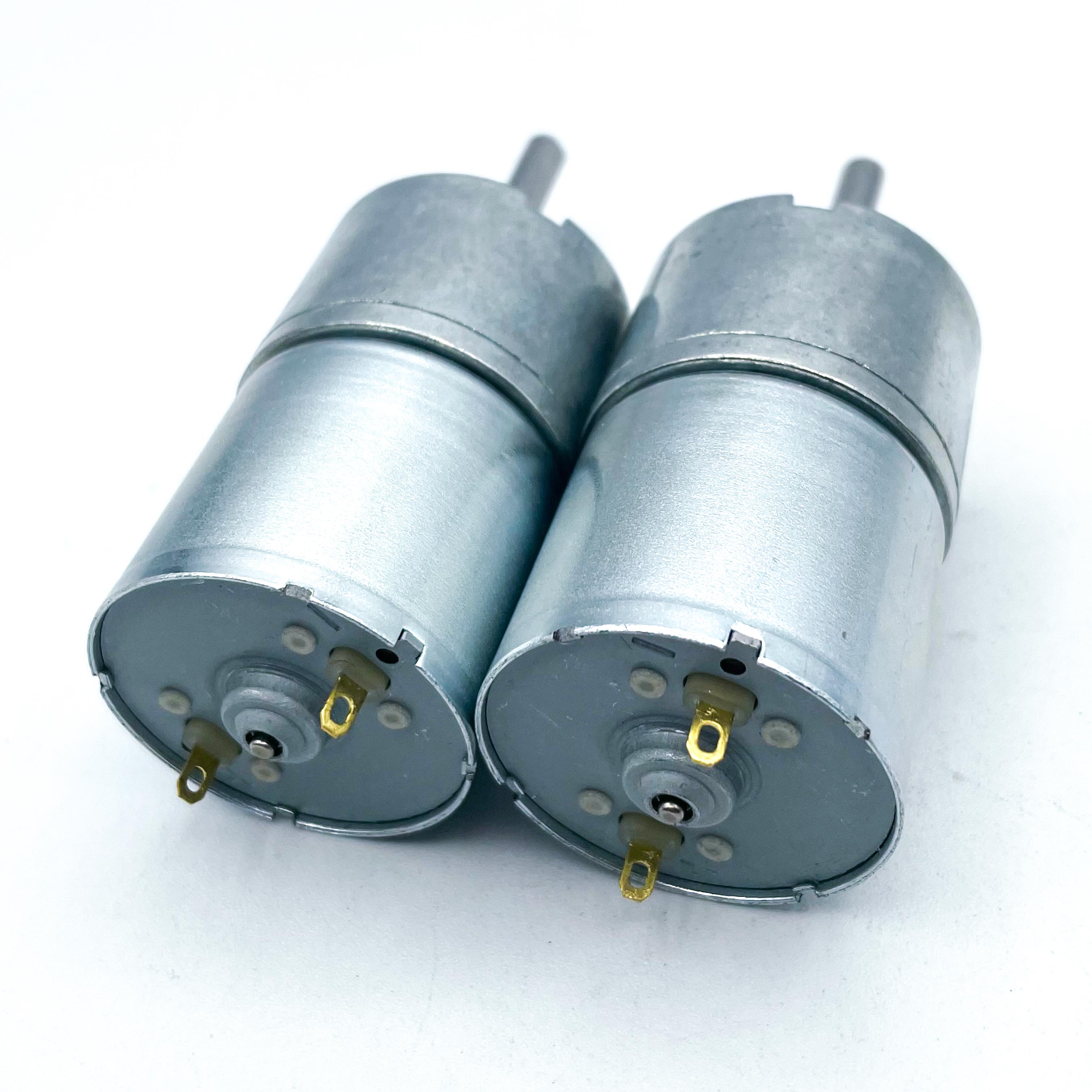

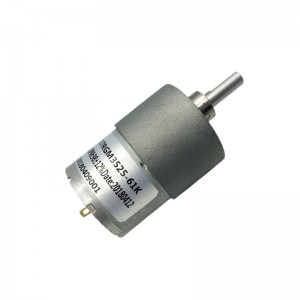

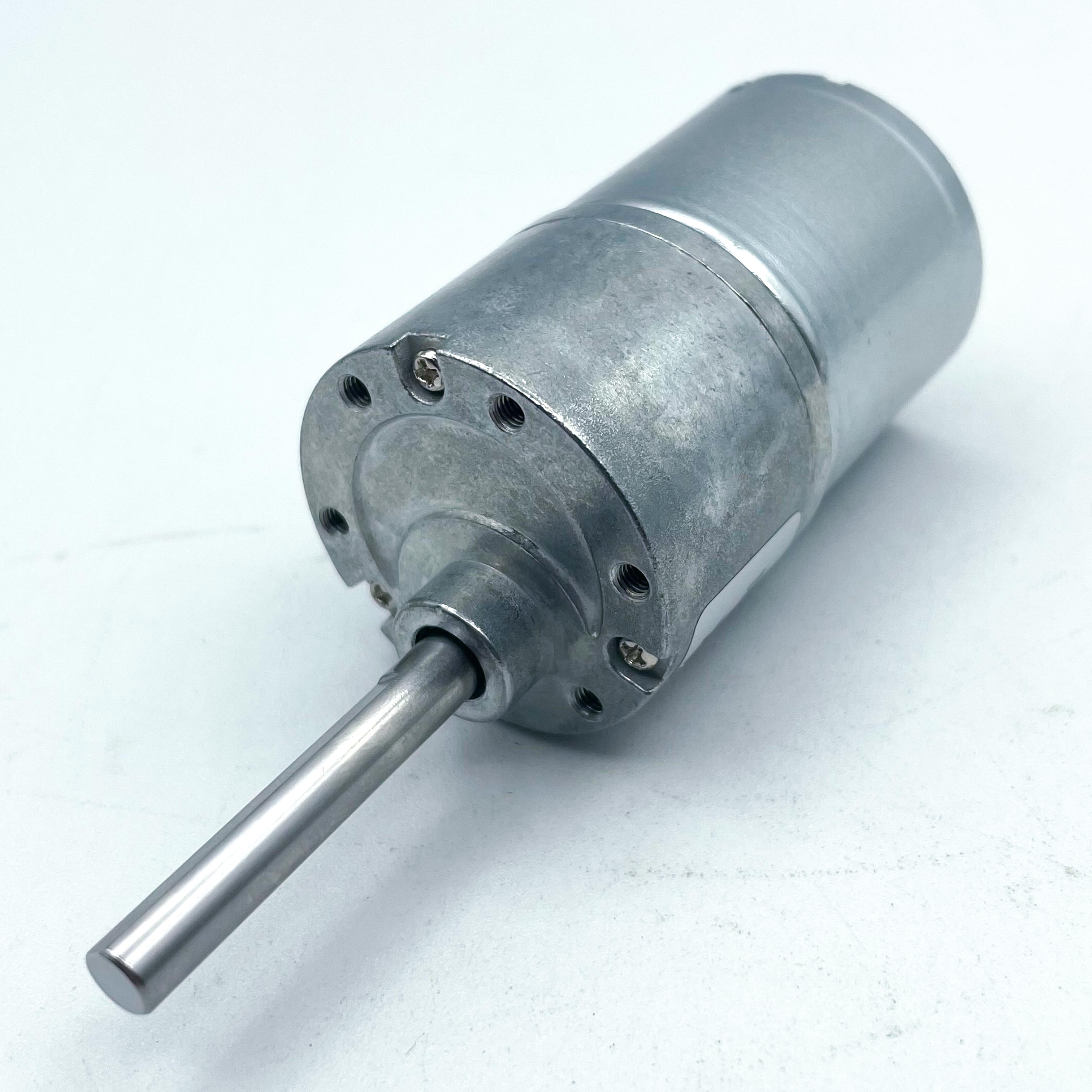

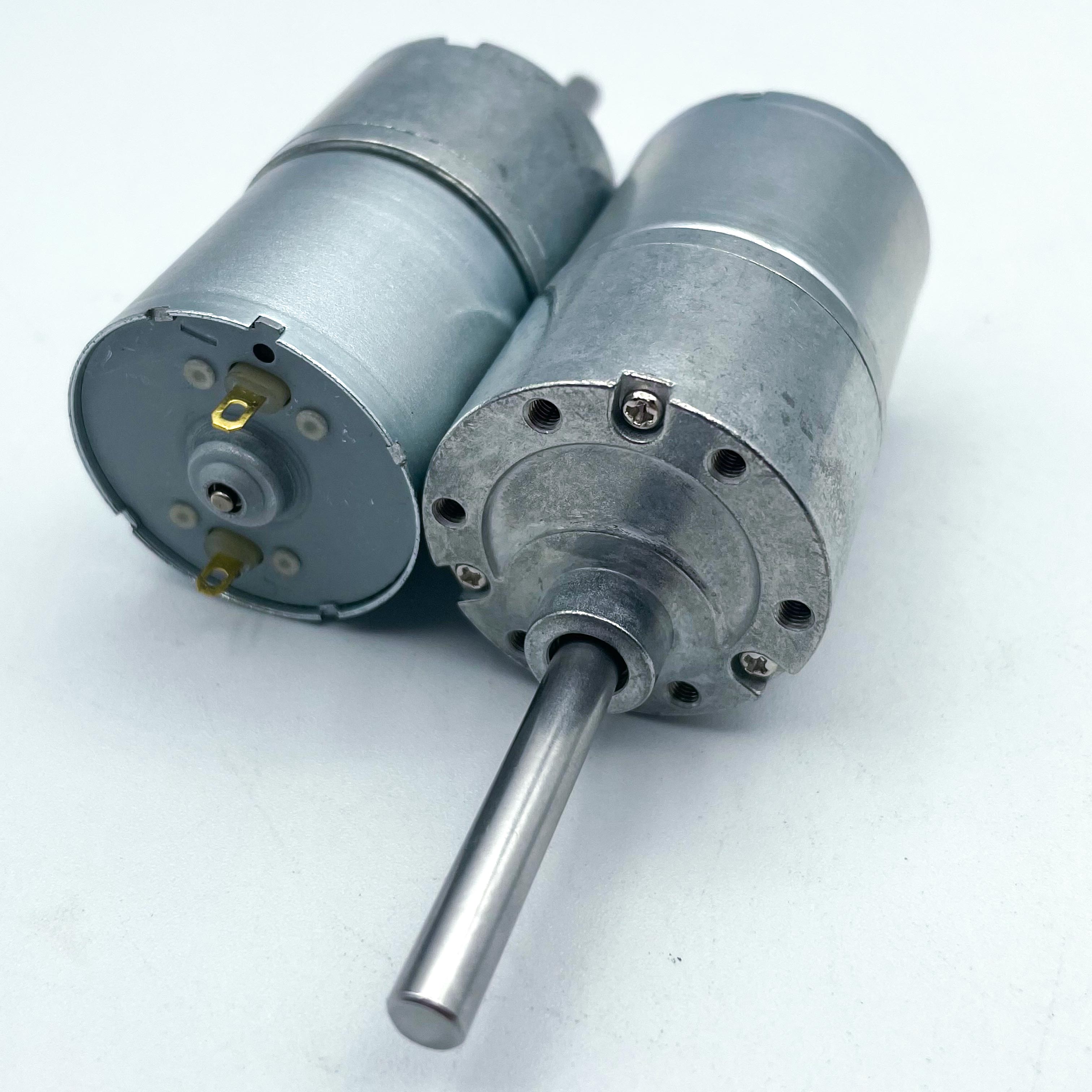

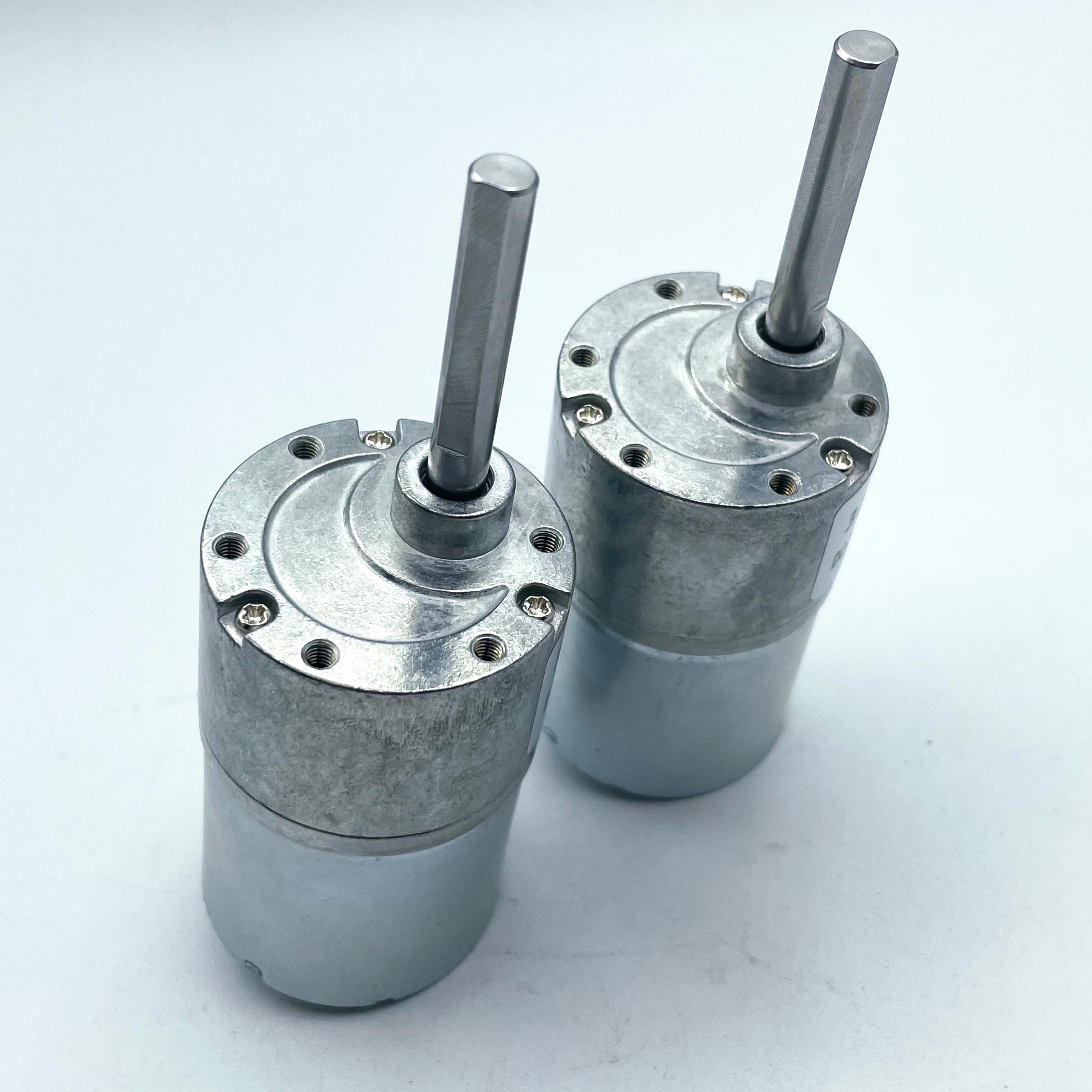

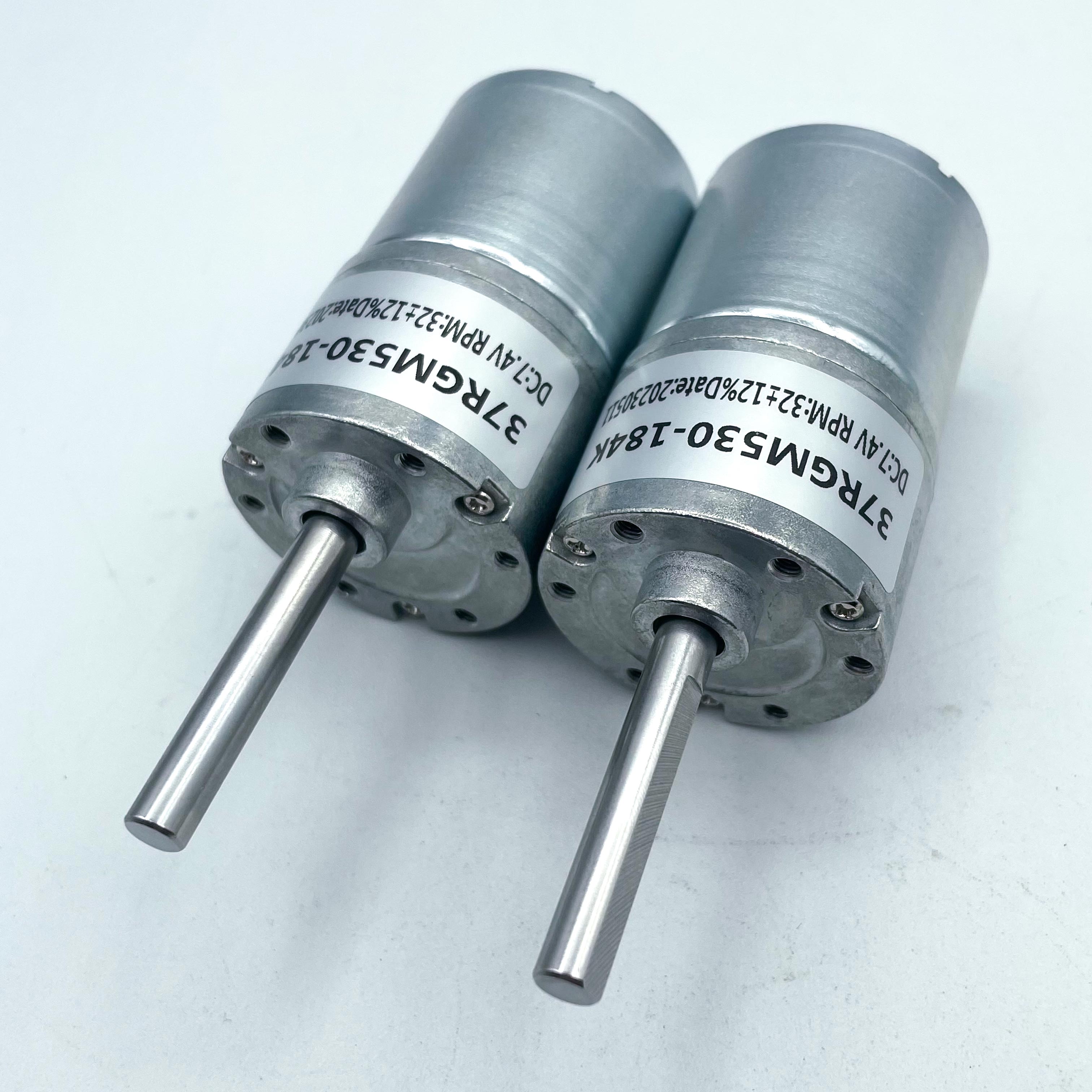

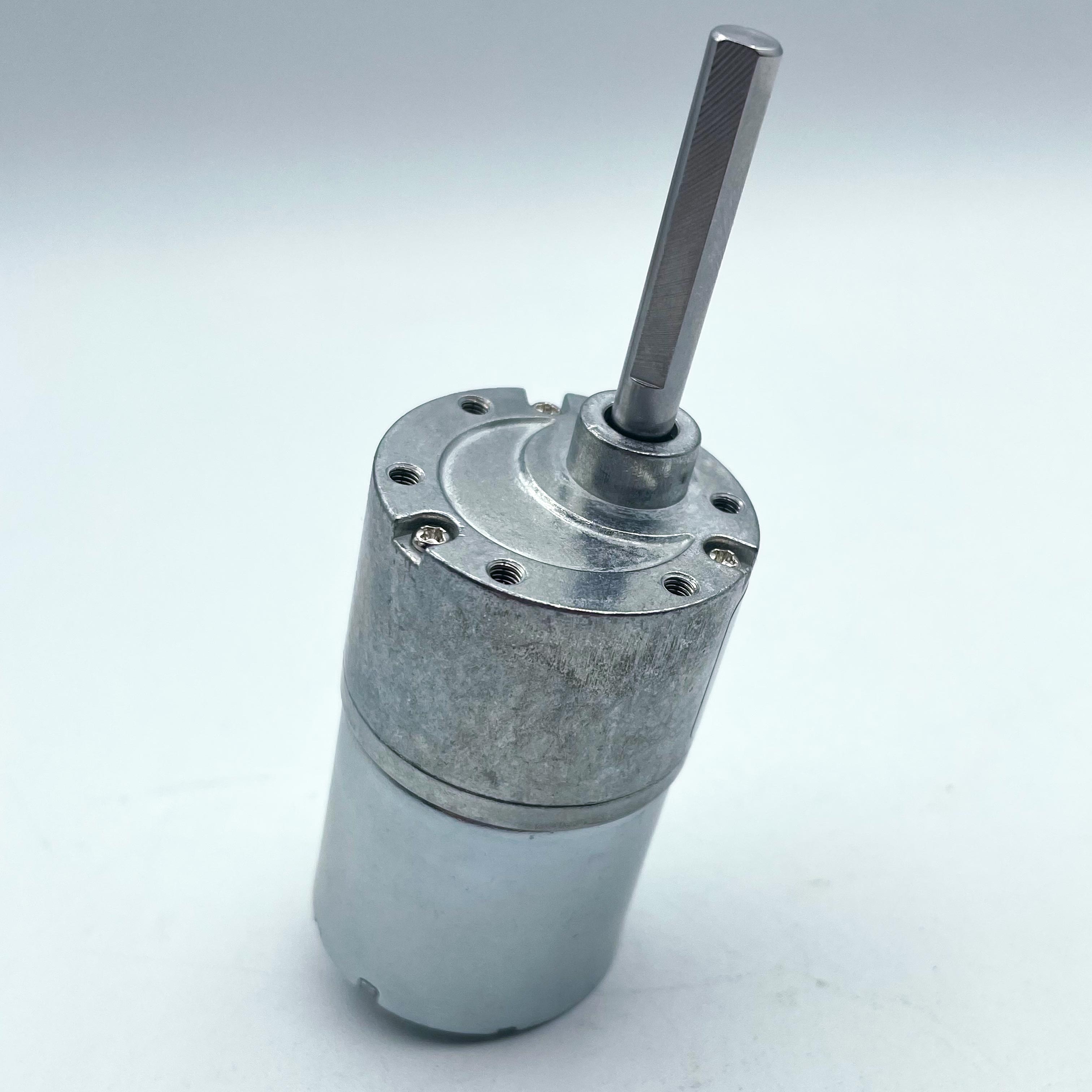

FT-37RGM530 Spur gear motor with speed control

short description:

A Dc Spur Gear Motor uses an electronic commutator to drive the motor without brushes and commutators.


  • Gear Motor Model: FT-37RGM530
  • Gear Box Diameter: 37mm
  • Voltage: 2~24V
  • Speed: 2rpm~2000rpm
  • Torque: Customization accepted
  • Product Detail

    Product Tags

    Features:

     Furthermore, ease of installation and compatibility are also key features of our Dc Brush Spur Gear Motor. We know time is precious and our products are designed to integrate seamlessly into your existing systems. Its compact design and versatile mounting options make it suitable for a variety of applications and installations.

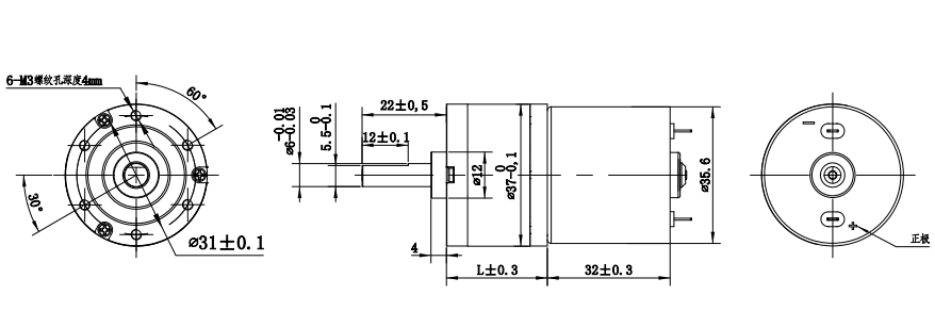

    Drawing(mm)

    drawing(mm

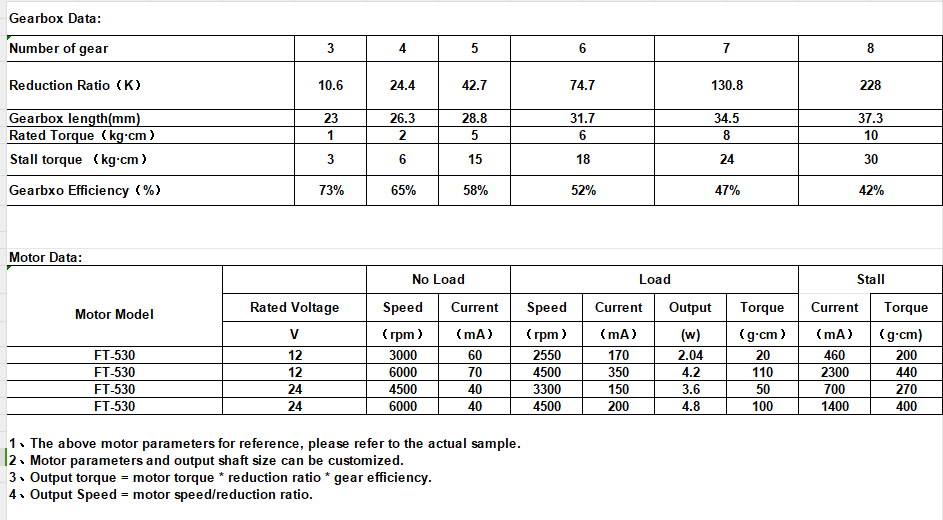

    Gearbox Data

    Gear series 3 4 5 6 7 8
    Reduction ratio(K) 10.6 24.4 42.7 74.7 130.8 228
    Gearbox lengthL(mm) 23 26.3 28.8 31.7 34.5 37.3
    Rated torque(kg·cm) 1 2 5 6 8 10
    Instant torque(kg·cm) 3 6 15 18 24 30
    Gearbox efficiency(%) 73% 65% 58% 52% 47% 42%

    Motor Data

    Motor Model Rated Voltage No Load Load Stall
    Speed Current Speed Current Output Torque Current Torque
    V (rpm) (mA) (rpm) (mA) (w) (g·cm) (mA) (g·cm)
    FT-530 12 3000 60 2550 170 2.04 20 460 200
    FT-530 12 6000 70 4500 350 4.2 110 2300 440
    FT-530 24 4500 40 3300 150 3.6 50 700 270
    FT-530 24 6000 40 4500 200 4.8 100 1400 400

    Application

    Smart toys: Miniature planetary gear motor brushless motor can drive various actions of smart toys, such as turning, swinging, pushing, etc., bringing more diverse and interesting functions to toys.

    Robots: The miniaturization and high efficiency of miniature dc brush worm reduction gearbox make them an important part of the robotics field. It can be used for robot joint actuation, hand motion and walking, etc.

    Smart home equipment: dc brush gear reducer motor can be used in smart home equipment, such as smart curtains, automatic door locks, smart electric doors, etc., to provide a convenient and comfortable home experience.
