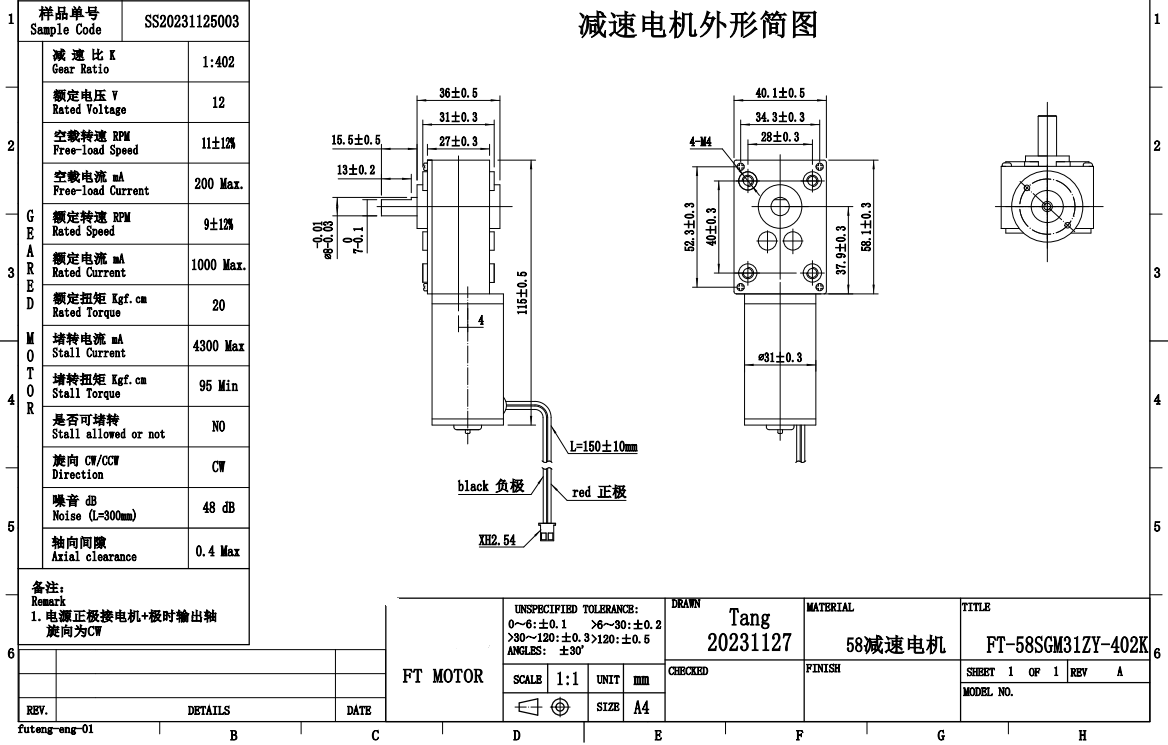

FT-58SGM31ZY High Torque Low Noise 58mm Worm Gear Motor
Application
| The specifications are for reference only. Contact us for customized data. | |||||||||
| Model number | Rated volt. | No load | Load | Stall | |||||
| Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| rpm | mA(max) | rpm | mA(max) | Kgf.cm | W | mA(min) | Kgf.cm | ||
| FT-58SGM31ZY0129000-49K | 12V | 184 | 420 | 160 | 2200 | 3.5 | 5.75 | 8000 | 17.5 |
| FT-58SGM31ZY0125500-73K | 12V | 74 | 300 | 55 | 1200 | 3.7 | 2.09 | 2880 | 14 |
| FT-58SGM31ZY0129000-109K | 12V | 89 | 400 | 75 | 1650 | 4.6 | 3.54 | 5700 | 23 |
| FT-58SGM31ZY0127000-109K | 12V | 69 | 400 | 58 | 1580 | 5.6 | 3.33 | 4700 | 25 |
| FT-58SGM31ZY0129000-218K | 12V | 41 | 500 | 35 | 1600 | 8 | 2.87 | 6500 | 37 |
| FT-58SGM31ZY0123500-290K | 12V | 12 | 100 | 8.5 | 450 | 8 | 0.7 | 1190 | 30 |
| FT-58SGM31ZY0127000-634K | 12V | 11 | 550 | 9.2 | 950 | 19 | 1.79 | 7500 | 127 |
| FT-58SGM31ZY0247000-109K | 24V | 64 | 230 | 45 | 1600 | 10 | 4.62 | 4500 | 23 |
| FT-58SGM31ZY02410000-73K | 24V | 133 | 400 | 124 | 1200 | 3 | 3.82 | 10500 | 25 |
| FT-58SGM31ZY0248000-73K | 24V | 108 | 120 | 89 | 1359 | 6.7 | 6.12 | 3700 | 30 |
| FT-58SGM31ZY0249000-505K | 24V | 18 | 200 | 15.5 | 850 | 21 | 3.34 | 3600 | 128 |
| FT-58SGM31ZY0244500-505K | 24V | 9 | 90 | 7.3 | 320 | 15 | 1.12 | 950 | 68 |
| FT--58SGM31ZY0243500-634K | 24V | 5.5 | 120 | 3.5 | 500 | 31 | 1.11 | 820 | 74 |
| FT-58SGM31ZY0245000-1327K | 24V | 3.7 | 150 | 3.2 | 550 | 35 | 1.15 | 2600 | 120 |
| Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in | |||||||||
1. Household applications: white goods, small appliances, fans, electric screens, automatic window opening, floor cleaning robots, vacuum cleaners, smart home systems.
2. Medical applications: medical pumps, sphygmomanometers, surgical tools, medical agitators, centrifuges.
3. Power tools: air pump, water pump, vacuum pump, oxygen generator, electric drill, electric screwdriver.
4. Commercial equipment: printers, copiers, shredders, projectors, scanners, cash registers, vending machines.
5. Personal care: hair dryer, electric shaver, beauty product, hair curler, steam hair straightener (water jet straight hair outlet).
6. Health field: massager, adult toy.
7. Security field: surveillance system, camera, safe.
8. Industrial applications: robotic arms, printing equipment, automation equipment.
9. Other applications: electronic door locks, smart switches, robots, toys, smart cars, boats, intelligent wear, electronics, DIY, etc.
Features:
Planetary geared motors have the following characteristics:
1、High torque
2、Compact structure:
3、High precision
4、High efficiency
5、Low noise
6、Reliability:
7、Diversified choices
Generally speaking, planetary geared motors have the characteristics of high torque, compact structure, high precision, high efficiency, low noise and reliability, and are suitable for various mechanical transmission and motion control fields.
About This Item
A spur gear motor is a type of gear motor that uses spur gears to transfer and amplify power from the motor to the output shaft. Spur gears are cylindrical gears with straight teeth that mesh together to transfer rotational motion. Here are some key features and applications of spur gear motors.
Company Profile
A gear motor is a mechanical device consisting of an electric motor and a gearbox, differing from a DC motor for lower RPM and higher torque.
Micro Motors specializes in the manufacture of miniature gear motors, both with brushes and without brushes, and stepper motors.
A gear motor is a mechanical device consisting of an electric motor and a gearbox, differing from a DC motor for lower RPM and higher torque.
Micro Motors specializes in the manufacture of miniature gear motors, both with brushes and without brushes, and stepper motors.
we are DC gear motor manufacturer , my factory mainly produce and supply Micro DC planetary gear motor, Worm gear motor, Spur gear motor, Brushed motor , Brushless BLDC motor and so on , We have a professional engineering design team that can design motor performance parameters according to your product requirements.
1.Q: Are you trading company or manufacturer?
A: We’re factory. We specialize in micro dc motor and dc gear motor for more than 20 years.
2.Q: What is the payment term for a new customer?
A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer
also can pay with PayPal or TT etc.
3.Q: I can’t find a suitable motor on your website, can you customize the motor for me?
A: Yes, we can customize a suitable motor according to our customer’s requirements.
4.Q: Do you have certificates for the motors?
A: Yes, we have RoHS， CE, FCC, ISO, IATF16949 etc. If you have the other certificates requirement, we can apply it for you.
5.Q: How is your Quality Control?
A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire
quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test
Machine, and Noise tester etc.
